Sealing failures slow production, waste energy, and cost money. A small change in seal profile can fix many of these problems without changing the material or hardware.

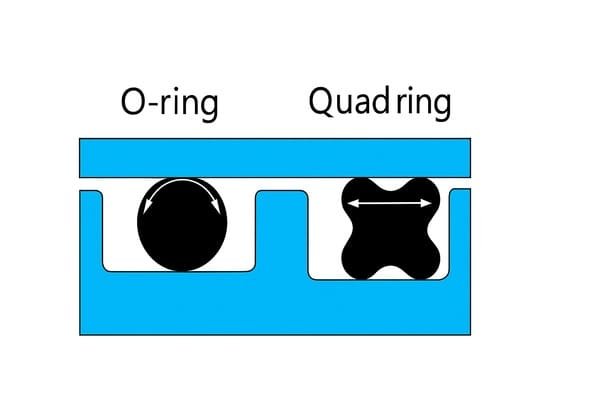

A quad ring has an X-shaped, four-lobed cross-section that provides two sealing lines and better stability, while an O-ring has a round cross-section with one sealing line and can twist in dynamic motion.
I use both designs in my work. I choose based on pressure, motion type, lubrication, and cost. The shape makes a big difference in friction, sealing performance, and lifespan.
How does the shape of a quad ring improve sealing?
Small differences in geometry lead to big changes in how a seal behaves. Shape affects squeeze, friction, and wear.

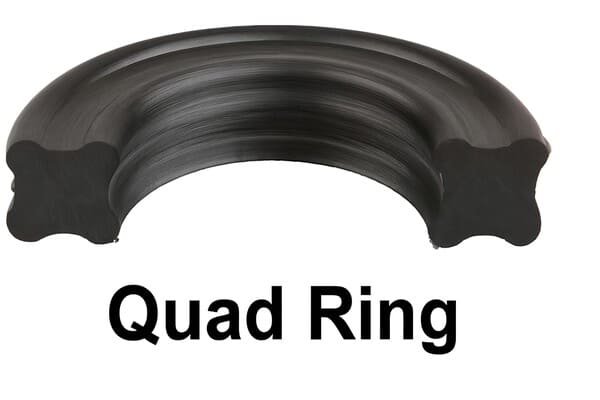

A quad ring has two sealing lines on each surface, which gives better sealing at low pressure, holds lubrication, and resists twisting. This design lowers friction and improves service life compared with an O-ring.
Contact and lubrication retention
The valleys between the lobes in a quad ring1 act as lubrication reservoirs2. This helps in dry-running air systems or applications with minimal oil. The twin lines of contact mean the seal starts working at lower squeeze, which is important in pneumatic cylinders or vacuum equipment.
Twist and spiral resistance
In dynamic applications3, O-rings can roll or twist in the groove, leading to spiral failure4. Quad rings resist this because the X-shape keeps the seal stable. This makes them a better choice for high-cycle machinery5 where smooth motion matters.
| Feature | Quad Ring | O-Ring |
|---|---|---|
| Cross-section | X-shaped, 4 lobes | Round |
| Contact lines per surface | 2 | 1 |
| Lube retention | Yes | No |
| Twist resistance | High | Low |
| Required squeeze (dynamic) | Lower | Higher |
✅ Lower friction means less heat and longer seal life.
🛠️ Two sealing lines improve performance in low-pressure environments.
When should I use an O-ring instead of a quad ring?
Not every application needs the extra performance of a quad ring1. Sometimes, the simpler option is the right one.
O-rings are the most common seals because they are versatile, low-cost, and available in many sizes. They work well in static joints and in lubricated hydraulic systems where friction is not a problem.
Why O-rings are still popular
O-rings6 fit standardized grooves and are available in a wide range of compounds. They seal well under higher squeeze, which is easy to achieve in static bolted joints. In oil-lubricated dynamic systems, the extra friction is less of a concern.
Typical O-ring applications
- Static sealing7 in flanges, caps, and covers
- Hydraulic piston and rod sealing with oil lubrication
- General-purpose sealing where cost control8 is key
- Retrofit projects where grooves are already machined to O-ring standards
| Factor | O-Ring Advantage |
|---|---|
| Availability | Widely stocked |
| Cost | Lower than quad rings |
| Groove fit | Matches standard designs |
| Versatility | Works in static and dynamic service |
✅ Easy sourcing reduces lead time.
🛠️ Standard groove design keeps tooling costs low.
How do I decide between a quad ring and an O-ring?
The right choice depends on media, motion, and performance targets. I follow a simple selection method.

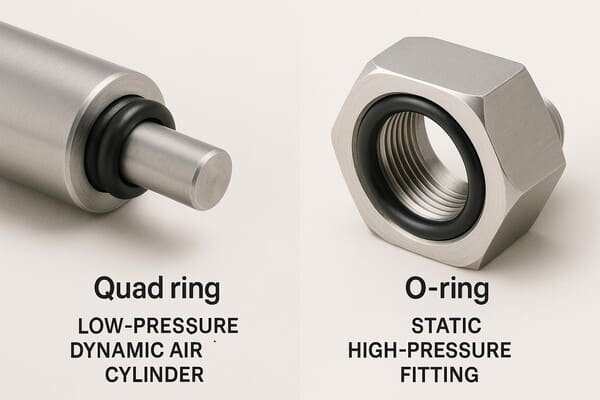

I use quad rings for low-pressure, high-cycle dynamic sealing where smooth motion matters. I use O-rings for static joints or when standardization and cost are the top priorities.
Key decision factors
Motion type
- Dynamic pneumatic cylinders: Quad ring for low breakaway force and anti-twist stability.
- Static flanges9: O-ring for simple, reliable sealing.
Media and lubrication
- Dry air or vacuum: Quad ring for lubricant retention.
- Oil-lubricated hydraulic oil: O-ring is sufficient.
Pressure and squeeze
- Low-pressure systems (<10 bar): Quad ring works well with less squeeze.
- High-pressure static joints10: O-ring tolerates more squeeze without deformation.
| Condition | Preferred Profile | Reason |
|---|---|---|
| Low pressure, dry-running air | Quad ring | Two sealing lines, low μ |
| Vacuum with smooth hardware | Quad ring | Better leakage control |
| High-pressure static | O-ring | Handles more squeeze |
| Cost-sensitive, standard groove | O-ring | Lower cost, standard sizes |
✅ Material choice still matters. NBR, EPDM, VMQ, FKM, and PU are available for both profiles.
🛠️ Always check squeeze %, gland fill, and hardware finish before finalizing.
What materials are available for both profiles?
Material choice follows the same rules for both quad ring1s and O-rings6. I choose based on temperature, media, and chemical exposure11.
| Material | Shore A | Temperature (°C) | Strengths | Limits |
|---|---|---|---|---|
| NBR | 60–80 | −30 to +100 | Cost-effective, oil-resistant12 | Ozone aging |
| HNBR | 70–85 | −30 to +140 | Heat/ozone resistance13 | Higher cost |
| EPDM | 60–80 | −40 to +130 | Steam, water, ozone | Swells in oil |
| VMQ | 50–70 | −60 to +200 | Low μ, cold flexibility14 | Poor abrasion resistance |
| FKM | 70–80 | −20 to +200 | Chemical and heat resistance15 | Poor low-temp elasticity |
| PU | 85–95 | −30 to +110 | High wear resistance16 | Not for hot water/steam |
✅ I adjust hardness for pressure and extrusion gap.
🛠️ Softer grades improve conformance at low pressure; harder grades resist wear and extrusion.
Conclusion
Quad rings and O-rings share materials but differ in shape and performance. I choose quad rings for smooth, low-friction dynamic sealing and O-rings for cost-effective static joints.
-
