A seal is a seal—until it leaks. That’s when knowing the difference between static and dynamic seals becomes more than theory. It becomes the key to getting your system right the first time.
The main difference is that static seals are used between two non-moving parts, while dynamic seals work between parts that move relative to each other, like shafts and pistons.
Over the years, I’ve met many engineers who misapply these two types of seals. A dynamic application with a static seal? That’s a failure waiting to happen. Here’s how to tell them apart—and use them correctly.

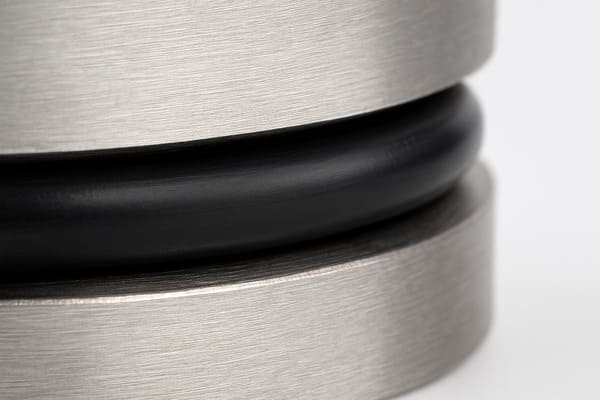

What defines a static seal?
Static seals don’t move. They just stay compressed in place to block leakage between fixed surfaces.
A static seal is used where no relative motion exists between sealing surfaces. It simply fills the gap and holds pressure or fluid in place.
🛠️ Characteristics of Static Seals
| Feature | Description |
|---|---|
| Motion involved | None |
| Typical materials | EPDM, NBR, FKM, silicone |
| Common shapes | O-rings, gaskets, flat seals1 |
| Application examples | HVAC flanges, battery pack covers, pipe caps |
| Installation method | Compressed between stationary components |
I often recommend static EPDM gaskets2 for HVAC flange joints3. They stay put, resist moisture, and perform well across a wide temperature range.

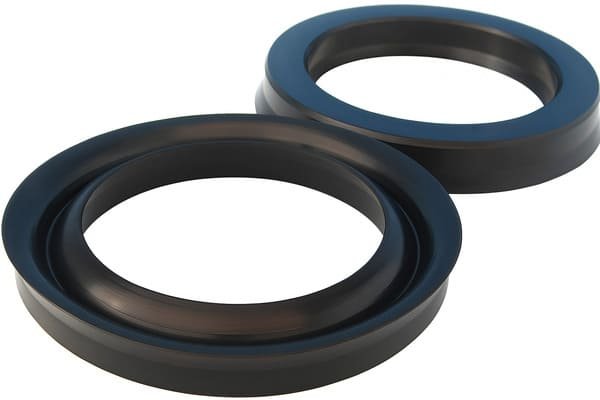

What defines a dynamic seal?
Dynamic seals do more than sit still—they maintain a seal while in motion. Think of a rotating shaft or a sliding piston.
A dynamic seal is designed to maintain contact and prevent leakage between parts that move relative to each other, such as rotating or reciprocating components.
🛠️ Characteristics of Dynamic Seals
| Feature | Description |
|---|---|
| Motion involved | Yes – rotary or reciprocating |
| Typical materials | NBR, FKM4, PTFE, polyurethane |
| Common types | Lip seals, rotary shaft seals, piston seals |
| Application examples | Pumps, gearboxes, hydraulic cylinders |
| Installation method | Press-fit into housing, lip contacts shaft |
We supply many NBR5 and FKM lip seals6 for customers in pump and motor manufacturing. These seals must handle rotation, pressure, oil, and friction all at once.

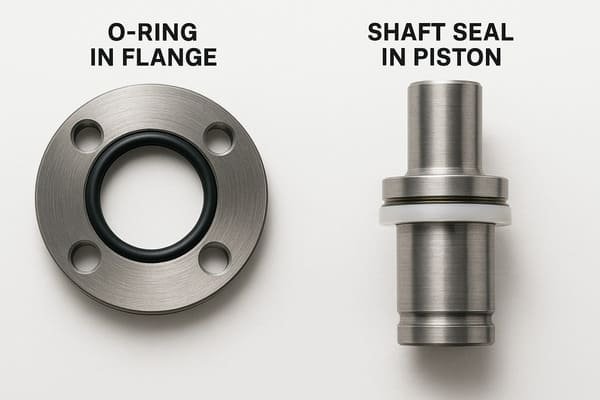

How do their functions differ?
Static seals are like walls. Dynamic seals are like sliding doors with flexible edges.
Static seals hold pressure by staying still under compression. Dynamic seals must maintain a seal while surfaces move and wear occurs.
🔍 Functional Differences Summary
| Aspect | Static Seal7 | Dynamic Seal8 |
|---|---|---|
| Movement | No | Yes – sliding or rotating |
| Sealing method | Compression | Contact with moving surface |
| Stress type | Compression only | Friction + compression |
| Maintenance need | Low | Higher due to wear |
| Leak tolerance9 | Very low | Some designs allow minimal leakage |
If your system is fully sealed at installation and never moves—static sealing is ideal. If motion is involved, your seal must flex, wear, and still perform.
What materials are best for each?
Material choice matters more than you think. What works in static sealing may wear out fast in dynamic use.
Static seals often use softer rubber for better compression. Dynamic seals need tougher, wear-resistant elastomers or PTFE blends.
🧪 Material Comparison Table
| Material | Best Used For | Static or Dynamic? |
|---|---|---|
| EPDM10 | Steam, water, weather | Static |
| NBR (Nitrile) | Oil and grease | Both (basic dynamic) |
| FKM (Viton) | High temp + chemicals | Both |
| PTFE11 | High-speed rotation | Dynamic |
| Silicone | Food contact, low compression set | Static |
| Polyurethane | Abrasion resistance | Dynamic |
We often combine hard + soft materials in custom molded seals for borderline applications, like a battery casing with removable covers that may shift during maintenance.
Can a seal be both static and dynamic?
In some designs, yes. These are called combination or hybrid seals.
Some seals handle both static sealing on the housing side and dynamic sealing against a shaft or rod. Lip seals are a common example.
For example, a rotary shaft seal has its outer diameter statically sealed in the housing while the inner lip runs dynamically on the shaft.
If you’re unsure which side moves, always check the design drawing. I’ve helped more than one customer avoid redesigns just by flagging this.
Conclusion
Static seals stay still and block. Dynamic seals move and hold. Use the wrong one—and your system could leak, wear out, or fail fast.
