Worried about unexpected equipment failure or leaks? A worn-out rubber bellow can bring your whole machine to a stop. How long should you expect a rubber bellow to last—and what factors decide its lifespan?
The life expectancy of a rubber bellow typically ranges from 3 to 10 years, depending on the material, application environment, frequency of movement, and maintenance. Extreme conditions can shorten lifespan, while proper care can extend it.
I’ve seen customers surprised when a bellow fails early—usually from heat, chemicals, or neglect. Let’s explore what really affects bellow longevity and how you can maximize the life of this critical part.
What factors determine the lifespan of a rubber bellow?
No two bellows see exactly the same service. The operating environment, the way the part moves, and even the installation method can all change its life expectancy.
The main factors include material type, exposure to temperature and chemicals, movement frequency, installation quality, pressure, and regular maintenance. Each can add or subtract years from a bellow’s service life.
Key Factors Table
| Factor | Impact on Life Expectancy |
|---|---|
| Material (EPDM, NBR, etc.)1 | Sets resistance to aging, heat, oil |
| Temperature | High heat accelerates rubber aging |
| Chemicals | Oil, fuels, acids cause swelling/cracks |
| Movement frequency | Repeated flexing can cause fatigue |
| Installation quality2 | Misfit leads to stress, early failure |
| Pressure/vacuum cycles | Extreme swings stress the rubber |
| Maintenance3 | Inspection and cleaning extend lifespan |
For example, EPDM bellows on outdoor equipment may last 7–10 years, while NBR bellows exposed to oil may only last 3–5 years in harsh conditions. I always recommend matching the bellow material to the actual work environment.

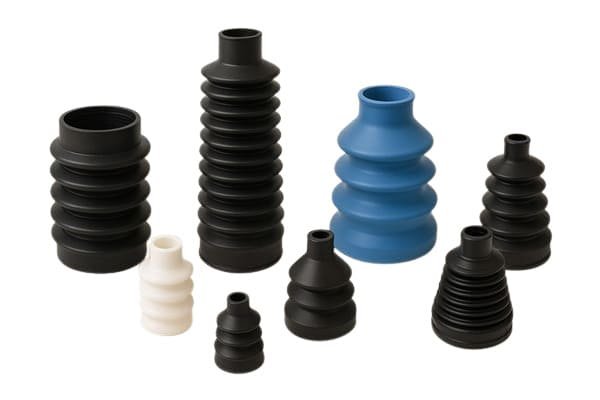

How do different rubber materials affect bellow lifespan?
Not all rubber is created equal. Each material brings unique strengths and weaknesses to durability, especially under real-world use.
EPDM resists weather and lasts longest outdoors. NBR is best for oil, but has a shorter life in UV or ozone. Silicone lasts the longest at high temperatures but may be softer. Neoprene offers balanced performance.
Lifespan by Material Table
| Material | Typical Life Expectancy4 | Best For5 |
|---|---|---|
| EPDM6 | 7–10 years | Outdoor, UV, ozone, weather |
| NBR | 3–5 years | Oil/fuel contact |
| Silicone | 8–15 years | High temp, medical, food |
| Neoprene | 5–8 years | General, marine, abrasion |
| TPE/TPV | 3–7 years | Light duty, cost-sensitive |
At Julong Rubber, I always confirm the customer’s working conditions and recommend the compound that offers the best balance of life and cost for their needs.
How does movement and pressure impact bellow durability?
Constant stretching, compression, and pressure cycling can tire out even the best material. Fatigue and mechanical wear are silent killers.
The more frequently a bellow moves or flexes, the faster it can fail. High pressure or vacuum cycles also cause material fatigue, which shortens lifespan.
Usage Profile Table
| Application | Typical Motion | Life Expectancy7 |
|---|---|---|
| Stationary seal | Minimal movement | Maximum (8–10 years) |
| Reciprocating shaft8 | Constant flexing | Shorter (3–5 years) |
| High-pressure cycles9 | Expansion/compress | May require frequent checks |
I suggest using reinforced or convoluted bellows for demanding movement or pressure cycles. Regular inspection and early replacement avoid unplanned downtime.

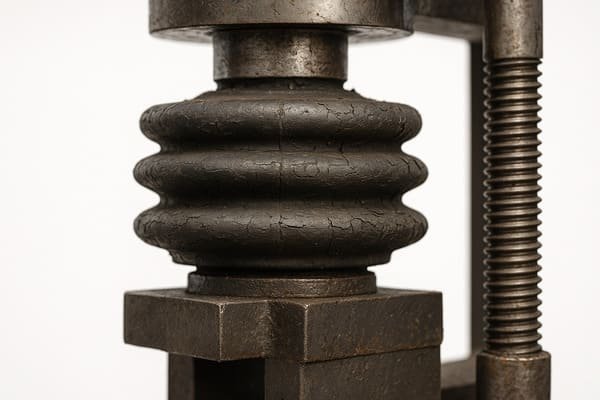

What are the signs of aging or failure in a rubber bellow?
A bellow rarely fails overnight. Most show visible or audible warnings before they go.
Common signs of a worn-out bellow include cracking, hardening, swelling, leaks, loss of flexibility, or visible tears. Squeaks, increased vibration, or exposed metal parts are also red flags.
Warning Signs Table
| Sign | What It Means |
|---|---|
| Surface cracks10 | Rubber aging, replace soon |
| Hardening or stiff feel11 | Loss of elasticity |
| Leaks or seepage12 | Seal compromised |
| Swelling/discoloration | Chemical or oil attack |
| Visible tears/holes | Mechanical damage |
| Squeaking/noise | Increased friction or exposure |
In my experience, catching these early lets you plan replacements, avoid machine breakdown, and save on costly emergency repairs.
How can you extend the life of a rubber bellow?
A little maintenance can double the working life of your bellows.
Regular cleaning, timely inspection, choosing the right material, proper installation, and replacing at the first sign of wear all help maximize lifespan.
Maintenance Checklist
| Tip | Benefit |
|---|---|
| Clean regularly | Prevents grit and build-up |
| Inspect for cracks | Early detection of failure |
| Use correct material | Matches real-world conditions |
| Install correctly | Avoids stress and misfit |
| Replace proactively | Avoids unplanned breakdowns |
At Julong, we offer custom solutions to match your unique application. The best time to plan bellow replacement is before failure—not after.
Conclusion
The life expectancy of a rubber bellow depends on material, environment, and care—expect 3 to 10 years. Choose wisely, maintain regularly, and you’ll get the most from every bellow.
-
Understanding the right materials can significantly enhance the lifespan of rubber bellows, ensuring better performance and durability. ↩
-
Proper installation is crucial for maximizing the lifespan of rubber components, preventing early failures and costly replacements. ↩
-
Regular maintenance can greatly extend the lifespan of rubber bellows, saving you time and money in the long run. ↩
-
Understanding the life expectancy of materials helps in making informed decisions for durability and cost-effectiveness in projects. ↩
-
Exploring the best applications for materials can guide you in selecting the right one for your specific needs and projects. ↩
-
Discovering the advantages and uses of EPDM can enhance your knowledge for outdoor and weather-resistant applications. ↩
-
Understanding the life expectancy of mechanical seals can help in planning maintenance and replacements effectively. ↩
-
Exploring the challenges of reciprocating shafts can provide insights into their maintenance and operational efficiency. ↩
-
Learning about the effects of high-pressure cycles can enhance your knowledge of component durability and performance. ↩
-
Understanding surface cracks can help you take timely action to prevent further damage to rubber products. ↩
-
Exploring the causes of rubber hardening can guide you in maintaining the elasticity of your rubber items. ↩
-
Learning about leaks in rubber can help you identify when it's time to replace or repair your rubber seals. ↩
