Oil leaks are a nightmare for any engineer or maintenance manager. They can damage equipment, pollute the environment, and cause unexpected downtime. But how does such a small part as an oil seal prevent these big problems?
The main purpose of an oil seal is to reliably retain lubricants (oil or grease) inside machines while blocking out contaminants like water, dust, or chemicals. Oil seals protect moving parts, ensure efficient operation, and extend the service life of equipment.
Years ago, a client’s production line halted when a gearbox leaked oil due to a failed seal. After analyzing the damage, we found contaminated oil and worn bearings. The right oil seal not only stopped leaks, but also lowered maintenance costs and kept their machines running smoothly for years.
How do oil seals achieve leak-free and contamination-free performance?

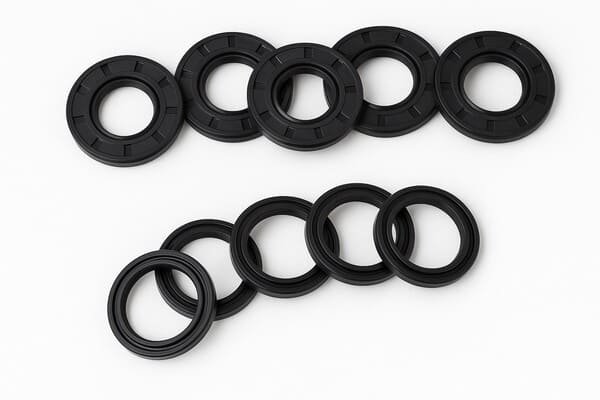

An oil seal is more than just a rubber ring. It is a carefully engineered component designed for dynamic environments—especially where shafts rotate at high speed or under pressure.
Oil seals achieve their function with a flexible sealing lip (or multiple lips), usually supported by a metal case and a garter spring. The lip presses gently but tightly against the shaft, forming a barrier that holds lubricant in and keeps contaminants out—even as the shaft rotates or vibrates.
Key working features and structure
| Feature | Purpose |
|---|---|
| Sealing lip1 (primary) | Retains oil or grease, follows shaft movement |
| Dust lip (secondary, optional) | Blocks external dirt, water, and debris |
| Metal case | Provides rigidity and secure fit into housing |
| Garter spring | Maintains lip pressure, improves sealing under rotation |
| Rubber or elastomer body | Absorbs vibration, seals surface imperfections |
The design allows oil seals to function in high-speed, high-pressure, and high-temperature environments. Modern oil seals are precisely manufactured to match shaft tolerances and operating conditions.
What are the main roles of oil seals in machinery?
Oil seals serve several functions at once—often acting as a system’s last line of defense against failure.
The key roles of oil seals include:
- Lubricant retention2: Keeping oil or grease inside the bearing or gear chamber, ensuring constant lubrication.
- Contaminant exclusion3: Preventing dirt, water, chemicals, or dust from entering and mixing with lubricants.
- Pressure management4: Maintaining necessary pressure differentials within gearboxes or pumps.
- Shaft protection5: Reducing friction and preventing direct metal-to-metal contact, which lowers wear on both shaft and housing.
- System efficiency6: Ensuring smooth rotation, preventing overheating and unnecessary power loss from friction.
Typical applications
| Application | Role of Oil Seal |
|---|---|
| Engines7 | Keeps oil in, prevents dirt/water intrusion |
| Gearboxes | Prevents lubricant loss, blocks debris |
| Axles & wheel hubs8 | Holds grease, keeps out road contaminants |
| Hydraulic systems9 | Maintains pressure, keeps hydraulic fluid contained |
| Pumps & compressors10 | Stops leaks, protects internal moving parts |
I always advise customers that a good oil seal protects not just the lubricant, but the entire machine—from bearings and gears to electronic sensors.
Why is choosing the right oil seal critical?
Different machines have different speeds, temperatures, and chemical exposures. One type of oil seal cannot fit all.
Selecting the correct oil seal—material, size, lip design, and spring tension—is critical for:
- Leak-free operation11 in the long term
- Withstanding harsh fluids, pressure, or temperature
- Reducing maintenance frequency and cost
- Complying with industry and safety standards
| Selection Factor | Why It Matters |
|---|---|
| Material12 | Must resist oil type, heat, and chemicals |
| Lip design13 | Must match shaft motion and environment |
| Spring/No spring | Springs help under high speed or pressure |
| Tolerance fit | Prevents movement or spinning in housing |
| Certifications | Some industries require ROHS, FDA, or ISO seals |
A customer once tried generic seals in a hydraulic press, but they failed after only months. After switching to custom FKM oil seals, the service life increased fivefold, and oil contamination problems disappeared.

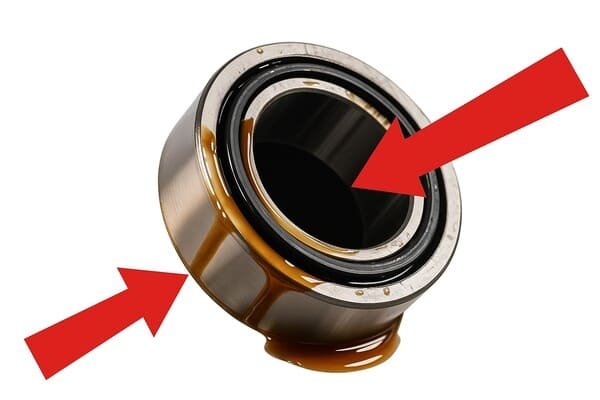

What happens when oil seals fail?
Oil seal failure is more than just a minor leak. The consequences can be serious:
- Lubricant loss: Leads to dry running, rapid wear, and overheating
- Contamination: Dirt or water gets inside, damaging bearings/gears
- Corrosion: Water or chemicals attack metal surfaces
- Unexpected downtime: Machine stoppages, lost production, higher repair costs
- Environmental/safety risks: Oil leaks can pollute, create fire hazards, or harm workers
That’s why I always recommend proactive replacement cycles and choosing the best seal for your actual working environment—not just the cheapest option.
How can you ensure oil seal reliability and performance?
Tips for maximum oil seal performance:
- Use correct shaft surface finish and hardness
- Avoid shaft runout and misalignment
- Select the right material for temperature, oil, and speed
- Install with care—never damage the sealing lip during fitting
- Regularly check for early signs of leakage or wear
Conclusion
The main purpose of an oil seal is to keep lubricants inside, contaminants outside, and to protect machines for long, trouble-free operation. High-quality oil seals are the key to reliable, efficient, and low-maintenance machinery.
-
