What is the maximum temperature for silicone rubber?

Many buyers think silicone is “heat-proof” and then get leaks after the first shutdown cycle. I see this a lot in HVAC and industrial projects.

Most standard silicone rubber grades can handle about 200–230 °C in continuous service and short peaks up to 250–280 °C. Special high-temperature silicones can reach about 250 °C continuous and 300 °C short-term, but the safe limit always depends on time, load, and media.

When I design a silicone gasket for a new project, I never look only at the “maximum temperature” line in a datasheet. I always link temperature with pressure, compression, and the real lifetime that my customer expects. That is how I avoid surprises in the field.

What is the real maximum temperature for silicone rubber in continuous use?

Many drawings show “Silicone 250 °C” as if this is always safe. This makes buyers feel calm, but it puts the gasket at risk.

Most general-purpose silicone compounds work well up to about 200–230 °C in continuous service. Above this range, I only trust special high-temperature grades, and I still apply a safety margin based on lifetime and duty cycle.

Typical temperature ranges for silicone

When I talk about the “maximum temperature” for silicone, I split it into three ideas:

• Continuous working temperature¹
• Short-term peak temperature²
• One-time test or emergency temperature³

For many solid silicone rubber compounds:

• Continuous: −50 °C to +200 °C⁴ is common
• Enhanced grades: up to +230 °C continuous⁵
• Short peaks: 250–280 °C⁶ for a few hours or cycles

In my own projects, I rarely design continuous operation at the very top of the material limit. I like to keep at least 10–20 °C safety margin, because real systems see hot spots⁷, fouling, and local stress.

Continuous vs peak temperature

I also ask the customer how long the gasket will stay at the peak temperature. A lab curve may say that the rubber survives 250 °C for a short time, but:

• If the gasket sees 250 °C for 10 minutes during sterilization, it may be fine
• If the gasket sits at 250 °C every day for 8 hours, hardening and cracking will come fast

So I treat “maximum temperature” as a negotiation between material science and real life. I check:

• Heating time per day⁸
• Total expected service life⁹
• Safety or legal requirements¹⁰

Quick overview table

These are typical design values. For a real project, I always ask for the exact compound data sheet and, if possible, an aging test curve from the supplier.

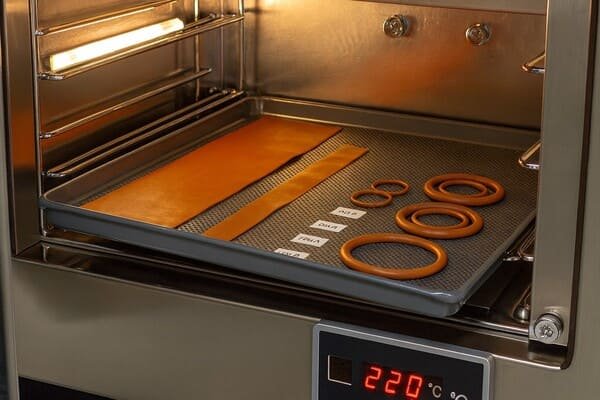

How do time and temperature work together for silicone rubber aging?

Many people ask me for the “one number” for maximum temperature. In my mind, the more important question is “How fast will silicone age at that temperature?”

Rubber aging is like cooking. Higher temperature speeds up every reaction. Silicone is strong in heat, but it still loses elasticity over time. At the top of its range, this happens faster.

Why lifetime matters more than a single maximum

I always connect temperature with target lifetime. I ask my customer simple questions:

• How many years of service do you want?
• How many hours per day will the line run?
• Will there be daily heat-up and cool-down cycles?

A gasket that works at 200 °C for 1 hour per week may last many years. The same gasket at 220 °C for 24 hours per day may harden in one season.

So I do not promise a magical temperature. I offer a “temperature–lifetime window”.

Typical silicone aging behavior¹¹

In general:

• At 150 °C, good silicone rubber can keep flexibility for a long time
• At 180–200 °C, hardening speeds up, but seals still last well in many static applications
• Above 220 °C, I start to treat the gasket as a “consumable” unless the compound has special high-temp design and we have test data

Dynamic seals, like O-rings¹² on moving shafts, age faster than static flat gaskets. Compression set¹³ is a key value here. High compression¹⁴ set means the rubber cannot recover its shape, so leakage risk grows.

Time–temperature checklist

When I help a buyer choose a silicone grade, I walk through this simple checklist:

• ✅ Define working temperature range and the highest realistic peak
• ✅ Estimate how many hours per day the gasket sees that temperature
• ✅ Decide a target maintenance or replacement interval
• ✅ Choose a compound grade that has test data at this temperature
• ✅ Add safety margin in temperature or reduce expected lifetime

This way, the “maximum temperature” becomes a clear engineering decision, not only a line on a catalog page.

How does silicone compare with EPDM and FKM at high temperature?

Many customers ask if they should choose silicone, EPDM, or FKM for hot lines. Each material has its own comfort zone. Temperature is only one part of the story. Media and cost also matter.

Silicone stands out for dry heat and air. EPDM is strong for hot water and steam. FKM is the classic choice for hot oils and fuels.

Temperature and media comparison

When I compare materials, I like to show a simple table for buyers. It helps them see the trade-offs at a glance.

So if I see:

• Hot dry air at 220 °C → I think silicone or FKM, then check chemicals
• Hot water and steam at 130 °C → I think EPDM steam-grade first
• Hot oil at 180 °C → I think FKM, not silicone

Cost and availability

From a cost view:

• EPDM is usually the lowest
• Silicone sits in the middle
• FKM is normally the highest

When I help a customer, I do not push the most expensive material. I try to match material to real media and temperature. This is the best way to control cost and avoid failures.

Why buyers still love silicone

Even with these trade-offs, many buyers like silicone because:

• It stays flexible at very low temperature
• It keeps good elasticity at high temperature in air
• It has clean appearance and can be made in many colors
• Many grades can meet FDA or other food-grade standards¹⁵

So I use silicone a lot, but I always check temperature and media and compare it with EPDM and FKM before I confirm the design.

Which factors reduce the safe temperature of silicone seals?

The datasheet may say 230 °C. Real life may say 200 °C. The gap comes from design details. I see this gap often when I check failed gaskets.

Temperature limit for silicone is not only a material number. It is a system number.

Key design factors¹⁶

Here are the main things that reduce the real safe temperature of a silicone seal:

• Compression rate and squeeze
• Contact pressure and bolt load
• Dynamic movement or vibration
• Media: air, oil, steam, chemicals¹⁷
• Color and fillers
• Curing system (peroxide or platinum)¹⁸

If the gasket is strongly compressed (for example more than 30–35 % for solid silicone), it will see more stress at high temperature. Compression set¹³ will increase. In dynamic seals, friction adds even more heat at the contact surface.

Practical risk table

I also pay attention to part thickness. Thick silicone sections can trap heat and cure by-products. Thin lips cool faster but can crack if the design is too sharp.

Why hardness and color matter

Hardness changes how a seal behaves at high temperature. A softer 40–50 ShA silicone can relax faster under heat. A 70 ShA grade will keep shape better under load, but may not install as easily.

Color often comes from pigments and fillers. These additives can change heat resistance. For example, some pure translucent compounds show better high-temperature aging than heavily filled, bright colored grades. When I need maximum heat life, I prefer “cleaner” compounds and I ask the supplier for aging test data.

How should I specify silicone temperature limits on my drawing?

I see many drawings that only say “Silicone 60 ShA”. This is not enough. It gives no protection for the buyer or for me as the supplier.

A clear drawing saves time and avoids arguments when a project is urgent.

What I like to see on a high-temperature silicone spec

When I help European customers with new projects, I suggest a simple but clear spec style:

I do not need a ten-page spec for every small gasket. I only need the key points that control risk. When a customer gives me this information, I can choose the right silicone compound faster and give a more solid guarantee.

Simple template sentence

On many projects, I use a sentence like this:

“Silicone rubber seal, 60 ± 5 ShA, continuous service −40 to +200 °C in hot air, short peaks to 230 °C, minimum 3-year life at 180 °C average, compression set ≤30 % at 200 °C / 22 h.”

This kind of sentence makes both sides clear about what “maximum temperature” really means.

When should I avoid silicone and choose another rubber?

I love silicone, but I do not treat it as a miracle material. In some cases, I actively advise my customers not to use silicone, even if they first ask for it.

This is part of my job as a rubber supplier. I protect my customer’s project first.

Typical “no-go” cases for silicone

Here are some real situations where I avoid silicone, even if the temperature looks fine:

• Seals in hot fuel or diesel lines
• Gaskets in oil-rich compressor discharge
• Wet steam lines above 120–130 °C for long time
• Chemical systems with strong acids or specific solvents

In these cases, I move to other rubbers:

I still use silicone when the environment matches its strengths. For example:

• High-temperature air ducts without oil
• Oven door gaskets
• Food-grade seals in dry heat or moderate hot water

In each case, I explain the trade-offs to the buyer. This builds trust and reduces the chance of a surprise claim later.

If you are working on a high-temperature project and you are not sure which rubber to choose, you can send me your temperature, media list, and drawing. My team at Julong Rubber and I can help you select or customize the right compound and gasket design for your line.

Conclusion

Silicone rubber can handle very high temperatures, but the real safe maximum depends on time, media, and design. Clear specs and honest trade-offs protect both your project and your budget.
