What is the most common rubber diaphragm size?

Picking the wrong size for a rubber diaphragm leads to leaks, equipment failure, or wasted money. Many buyers wonder if there is a common or standard size to simplify sourcing.

There is no single standard size for rubber diaphragms. Most are customized for each application. However, common diameters for industrial use range from 25 mm to 300 mm, with 50–200 mm most requested.

From my experience, the right diaphragm size¹ always depends on the specific valve, pump, or actuator. Many of my customers in water treatment², HVAC³, and chemical industries order diameters between 50 mm and 200 mm. For medical devices or compact actuators, 10–50 mm is more common. For large industrial valves or process equipment, 200 mm, 250 mm, or even 300 mm are often used.

Custom diameters are easy to produce with the right technical drawing or a sample part. I always encourage buyers to confirm the fit with actual equipment specs before ordering.

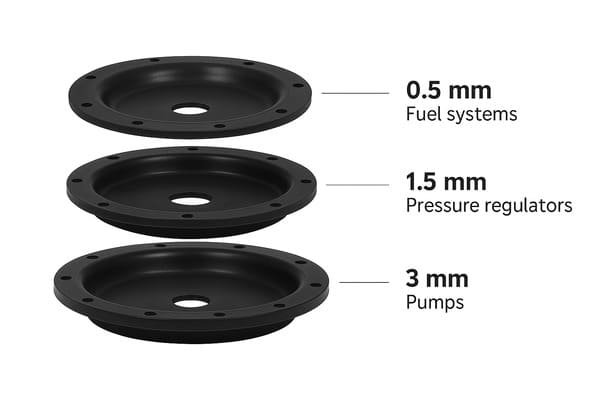

How thick is the rubber diaphragm?

A diaphragm that is too thin can tear under pressure, but too thick and it won’t flex well. The correct thickness balances strength, flexibility, and sealing.

Most industrial rubber diaphragms range from 0.5 mm to 3 mm thick. The most popular thicknesses are 1 mm, 1.5 mm, and 2 mm, depending on the application and required pressure.

The right thickness is critical. Thin diaphragms (0.5–1 mm)⁴ work in low-pressure or sensitive applications, while thicker ones (2–3 mm) are used for high-pressure or where extra reinforcement is needed.

For demanding projects, we can add fabric mesh inside the diaphragm⁶ for more strength without increasing thickness much. This is common for high-cycle or aggressive service conditions.

What shapes and profiles are available for rubber diaphragms?

The shape of the diaphragm is just as important as its size. Many buyers only think of flat disks, but there are multiple profiles to suit different tasks.

Rubber diaphragms come in many shapes: flat, dish, rolling, and convoluted. The choice depends on stroke length, pressure, and the type of movement required.

Choosing the right shape increases service life⁸ and improves sealing performance⁹. I work closely with engineers to select the best profile for each project.

What materials are used for different diaphragm sizes?

Material selection affects size, performance, and durability. Some rubbers perform better in large or thin diaphragms, while others are better for small or thick ones.

The most common rubber diaphragm materials are NBR, EPDM, FKM, CR, and silicone. Material choice depends on the media, temperature, and expected cycle life.

Each material has its own best range for thickness and diameter, based on mechanical strength and chemical compatibility.

How do I select the right size and thickness for my application?

The safest way to pick a diaphragm size is by matching the equipment specification or sample part. Guessing often leads to fit problems or early failure.

Measure the old part, check the technical drawing, and consult the equipment manual. If not available, contact the manufacturer or supplier with your working pressure, media, and cycle requirements for guidance.

I always recommend sending a photo or sample to speed up the process and avoid mistakes.

Can I get custom rubber diaphragms for special equipment?

Most industries use custom diaphragms, not just standard sizes. OEMs and distributors often need special solutions to solve tough problems.

Factories like mine can make custom diaphragms in any size, shape, or thickness, including fabric reinforcement or FDA/WRAS-approved materials for food and water use.

Custom options¹⁶ improve performance, extend equipment life, and ensure compliance for regulated markets.

I always encourage buyers to discuss their requirements openly and provide as much detail as possible.

Conclusion

Most rubber diaphragms are custom-made. Common diameters range from 50 to 200 mm, and thickness from 1 to 2 mm. The right size, thickness, and shape depend on your equipment, pressure, and application needs. Always confirm specs with your supplier to ensure perfect fit and reliable sealing.
