What is the temperature range for ACM rubber?

I know how often drawings say “ACM 70 Shore A” without telling you what temperature it can really survive in the field.

Most ACM rubber compounds work roughly from about −20 °C up to +150 °C in continuous service, with short peaks around +170 °C, but exact limits depend on grade, fluid, and design.

When I help customers choose ACM, I never use one magic number. I always ask about oil type, static or dynamic sealing, time under compression, and how often the system sees temperature peaks.

What is the typical temperature range for ACM rubber?

Many engineers only remember “ACM is for hot oil” and ignore the cold side of the curve, which can be just as dangerous.

In practice, ACM rubber usually handles continuous operation from about −20 °C to +150 °C. Special grades may reach −30 °C on the low side or +160–170 °C on the high side for short periods.

When I read datasheets from different suppliers, I see slightly different numbers, but the pattern is the same. ACM is a hot-oil specialist, not a low-temperature hero. It sits between NBR and FKM in the “heat ladder”.

How I read the ACM temperature window

I like to split the range into three zones:

• Safe continuous zone¹
• Short-term peak zone²
• Risk zone³

This simple view helps purchasing officers and engineers talk in the same language.

In real projects, I rarely run ACM right at its limits. If the line can see 150 °C for hours, I treat 150 °C as an upper boundary, not a comfort zone. I also look at how many thermal cycles the part will see. A seal in a lab test at 150 °C for 72 hours is not the same as a transmission seal that lives near 140–150 °C, day after day, for years.

On the cold side, I treat −20 °C as a warning line for dynamic motion⁴. A static gasket may survive colder storage if no movement happens, but once shafts or pistons start to move, the hardened ACM can crack or lose sealing. That is why I always confirm the real minimum ambient and start-up conditions before I accept ACM on a drawing.

How does temperature affect ACM rubber performance⁵ in real applications?

Many people focus only on “can ACM reach 150 °C?” and forget what happens to hardness, compression set⁶, and oil resistance over time.

As temperature rises, ACM rubber becomes softer, ages faster, and shows higher compression set; as temperature drops, ACM stiffens and loses flexibility, especially below about −20 °C, which can cause leaks and cracks in dynamic seals.

When I look at failed ACM seals from the field, I often see two patterns: rock-hard, cracked parts from long exposure to hot oil, or glassy, brittle lips from cold climates and dynamic start-up.

What happens at high temperature

At high temperature, especially in hot oils or ATF, ACM slowly ages:

• Crosslinks tighten and the rubber hardens.
• Compression set increases, so the seal does not spring back.
• Surface cracks and shrinkage appear after long service.

These effects are normal aging, but high temperature speeds them up. So a seal at 120 °C may last many years, while the same design at 150 °C may lose sealing force much sooner.

What happens at low temperature

At low temperature, the rubber chains lose mobility:

• ACM becomes stiff and glassy, especially below −20 °C.
• Dynamic lips can crack under movement.
• Static gaskets may leak because they cannot follow small deflections.

For vehicles or machines used in cold regions, this is a real risk. I never rely on ACM alone for dynamic seals⁷ in deep winter conditions without real test data.

How I link temperature to failure modes

Here is how I summarize this for my customers:

When I design with ACM, I attach these behaviors to the duty cycle. For example, an automatic transmission that sits around 110–130 °C most of the time can be a great fit for ACM. A continuous oven seal at 160 °C is asking for trouble. For cold regions, I sometimes accept ACM for static seals but move to HNBR or other rubbers for dynamic ones.

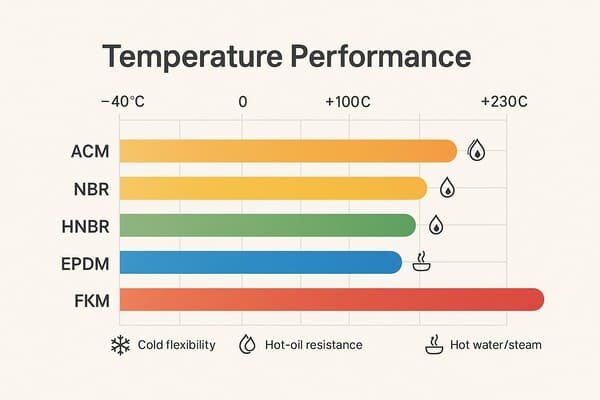

How does ACM compare with other rubbers by temperature?

People often ask me if ACM is “better” than NBR or “almost like FKM”. The honest answer is that it sits between them, and EPDM adds another dimension on the water side.

Compared with other rubbers, ACM offers better high-temperature oil resistance than NBR, weaker low-temperature flexibility than NBR and HNBR, and lower maximum temperature than FKM, while EPDM still wins for hot water and steam.

I like to place the main options on one “temperature ladder⁸” with a short comment. This helps purchasing officers see why drawings jump from NBR to ACM to FKM as applications get harsher.

Temperature ladder in simple form

These numbers are typical ranges, not strict limits, but they show the logic. ACM is not here to replace FKM everywhere. It is here to extend life beyond NBR in hot oils while keeping cost much lower than FKM.

When ACM is a good middle choice

I lean toward ACM when:

• The medium is ATF or engine oil⁹.
• Continuous temperatures are around 130–150 °C.
• The environment is mostly dry, with limited water or steam.
• The low-temperature requirement is not extreme (for example, −15 °C to −20 °C is acceptable).

In that zone, ACM often gives the best balance between life and cost. If temperatures are lower, NBR or HNBR may be enough. If temperatures are higher or fluids are more aggressive, FKM or other fluoroelastomers become more attractive.

Where ACM loses against other rubbers

I avoid ACM when:

• There is long-term hot water or steam¹⁰ (EPDM or other rubbers are safer).
• The system sees very low temperatures with movement (HNBR or special NBR grades are better).
• Temperatures push toward 180–200 °C or higher (FKM or special high-temp rubbers are needed).

So, when a drawing only says “ACM” without context, I always ask for the real temperature and fluid. Sometimes, after a short discussion, we stay with ACM. Sometimes we move the material one step up or down on the ladder to match reality.

How should I choose ACM grade and design for my temperature window?

Knowing the temperature range is only the first step. The next step is to match grade, hardness, and design so the seal actually survives in that range.

You choose ACM for a temperature window by checking real minimum and maximum temperatures, oil type, static or dynamic duty, and required lifetime, then selecting a grade and hardness with enough safety margin away from the material limits.

When I support customers, I use a simple question list. We write the answers down, and the “correct” ACM choice often becomes obvious.

My practical checklist for ACM selection

1. Define real temperature limits¹¹

I ask:

• What is the normal working temperature in the oil or air?
• What are the peak temperatures and how long do they last?
• What is the cold start temperature in winter?

I do not accept “room temperature” or “sometimes hot”. I push for numbers, even if they are only estimates from field data.

2. Confirm medium and environment

Next, I confirm:

• Type of oil or fluid (ATF, engine oil, gear oil, others).
• Presence of additives that might attack ACM.
• Any water, coolant, or steam exposure.

If water or steam are significant at high temperature, I already know ACM is at risk, even if its oil temperature is fine.

3. Define static vs dynamic sealing¹²

Then I look at:

• Is the seal static or dynamic?
• What is the speed, stroke, or vibration?

ACM that works well as a static gasket at −20 °C may fail quickly as a dynamic lip at the same temperature. So I set stricter temperature limits for dynamic parts.

4. Choose hardness and safety margin

With this information, I choose hardness and add a safety margin:

• If the system runs around 130 °C, I am comfortable with ACM designed for 150 °C continuous.
• If peaks reach 150 °C, I design the seal so it “lives” around 130–140 °C most of the time, not locked at 150 °C.

I also check compression set data at the target temperature. If compression set is high at 150 °C, I know the seal will lose force earlier, so I may increase section size or change the compound.

Simple decision map you can reuse

Here is a compact view that you can adapt into your own internal guide:

When you follow this kind of logic, the temperature range for ACM rubber stops being a vague line in a datasheet and becomes a clear design tool. If you want to review a real drawing, temperature profile, and medium, you can always reach me at info@rubberandseal.com or through www.rubberandseal.com. I am happy to walk through the decision with you.

Conclusion

ACM rubber usually works from about −20 °C to +150 °C, but real success comes from matching that window to oil type, duty, and lifetime, and keeping a safe distance from both the hot and cold limits.
