Getting the gasket thickness wrong can cause leaks, joint failure, or even system damage. What’s the right thickness for a rubber flange gasket, and how do you choose it for your piping project?
Standard rubber flange gasket thicknesses range from 1.5 mm to 6 mm, with 3 mm being the most commonly used for water, HVAC, and industrial piping. Thicker gaskets (4 mm–6 mm) are used for larger pipes, old or uneven flanges, or higher pressure systems.
From my experience, most municipal, water, and HVAC systems use 3 mm thick EPDM, NBR, or neoprene gaskets for reliable sealing and easy installation. Some older pipelines, corroded flanges, or high-pressure joints may require a thicker gasket to compensate for surface irregularities.
How do you select the right gasket thickness?
Thickness should match flange surface quality, pressure, and application requirements.

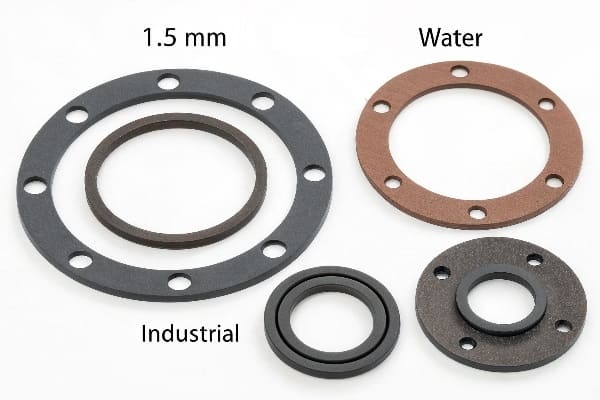

Thinner gaskets (1.5 mm–2 mm) are suitable for new, smooth, and precisely aligned flanges under moderate pressure. Thicker gaskets (4 mm–6 mm) are better for rough, warped, or old flanges, and systems with vibration, movement, or high bolt load variation.
| ✅ Gasket Thickness1 | 🛠️ Best Use | Example Application |
|---|---|---|
| 1.5 mm – 2 mm | Smooth, new flanges, low to moderate pressure | Food, beverage, pharma |
| 3 mm | Standard water, HVAC, general industry | Water supply, fire mains |
| 4 mm – 6 mm | Old, rough, or misaligned flanges, higher pressure | Repair, large pipes, tanks |
Too thick a gasket can reduce the effective sealing pressure2 and may allow “creep” under load; too thin may not seal gaps or irregularities.
What factors influence gasket thickness choice?
Don’t just follow a chart—consider these key factors for best results.
Key factors include flange surface quality, bolt load, system pressure, pipe diameter, vibration, and media type. Always refer to the equipment manufacturer’s guidelines or relevant industry standards.
| ✅ Factor | 🛠️ Impact on Thickness Choice | What to Consider |
|---|---|---|
| Flange surface finish | Rougher needs thicker gasket | Rust, pitting, old piping |
| System pressure3 | Higher pressure may use thinner, firmer | Prevents extrusion/creep |
| Pipe/flange diameter4 | Larger diameters may need thicker | Supports sealing, no gaps |
| Vibration/movement | More movement = thicker, softer gasket | Absorbs shock, prevents leaks |
| Media type5 | Chemical/steam may need special rubber | EPDM, NBR, FKM, silicone |
Consulting with your supplier about operating conditions ensures safe, cost-effective gasket selection.
Are custom gasket thicknesses available?
Every piping system is different—sometimes, the standard thickness just won’t do.

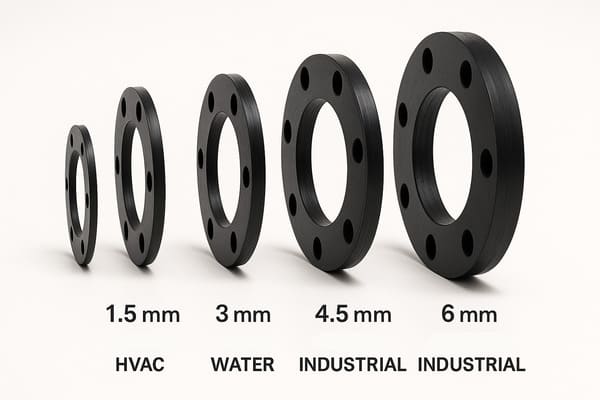

Rubber flange gaskets can be custom-cut or molded in any thickness, from 1 mm to over 10 mm, depending on the flange, media, and pressure. For non-standard joints, large diameters, or extreme conditions, ask your supplier for tailored solutions.
| ✅ Custom Option | 🛠️ Application | Example Project |
|---|---|---|
| Extra-thin6 | Tight tolerance, limited space | Compact valves |
| Extra-thick7 | Uneven/old flanges, gap filling | Pipe repair, tank lids |
| Special hardness8 | Hard or soft compounds as needed | Chemical, food plants |
I work with customers to match thickness, hardness, and material for every special case.
Conclusion
Standard rubber flange gasket thickness is usually 3 mm, but options from 1.5 mm to 6 mm (or more) are available for different needs. Choose thickness based on flange condition, pressure, vibration, and application requirements for best sealing and long-term reliability.
