A simple rubber diaphragm can prevent leaks, control pressure, and keep machines running safely. Many people underestimate its importance until a failure happens.
Rubber diaphragms are used to separate two chambers, prevent fluid or gas leakage, and transfer pressure or motion in pumps, valves, actuators, regulators, and dosing systems. They provide a flexible yet reliable seal.
I have helped many customers solve persistent leaks and equipment failures just by switching to a high-quality rubber diaphragm. Let’s look at the main uses and why they are so effective.
Where are rubber diaphragms used in industry?
You’ll find rubber diaphragms in almost every industrial sector—from water treatment to automotive and HVAC systems.
Rubber diaphragms are common in pumps, control valves, pressure regulators, actuators, gas meters, and chemical dosing equipment. Their ability to flex and seal at the same time makes them essential for reliable and repeatable operation.
| ✅ Industry | 🛠️ Application | Typical Equipment |
|---|---|---|
| Water treatment | Chemical dosing1, pump seal | Metering pumps, valves |
| HVAC | Flow and pressure control2 | Actuators, dampers |
| Automotive | Brake and fuel systems | Vacuum boosters, valves |
| Chemical processing | Separation, pressure regulation | Diaphragm pumps, regulators |
| Food & beverage | Safe, sanitary fluid handling3 | Dispensing valves, pumps |

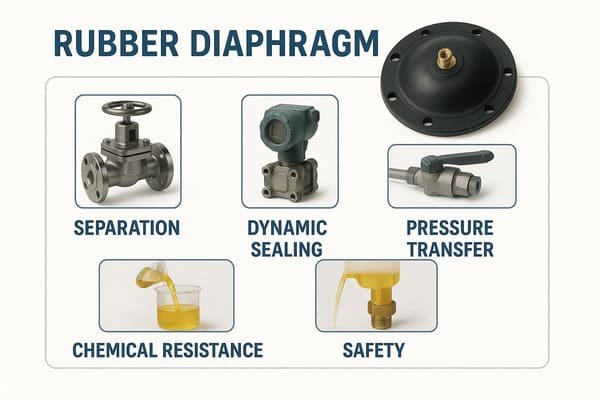

What are the main functions of a rubber diaphragm?
A gasket just seals. A diaphragm does much more.
A rubber diaphragm acts as a barrier, a dynamic seal, and a pressure or motion transmitter. It flexes under pressure, separates different fluids or gases, and allows precise control in automated systems.
| ✅ Function | 🛠️ How It Works | Example Use |
|---|---|---|
| Separation | Keeps liquids/gases apart | Pumps, regulators |
| Dynamic sealing4 | Seals while moving or flexing | Valves, actuators |
| Pressure transfer5 | Moves force between two chambers | Pressure regulators |
| Chemical resistance6 | Handles aggressive or sensitive media | Chemical pumps, food systems |
| Safety | Prevents leaks, protects equipment | Gas meters, dosing units |
A well-made diaphragm can last millions of cycles without failure, which is why I always focus on materials, thickness, and proper installation.

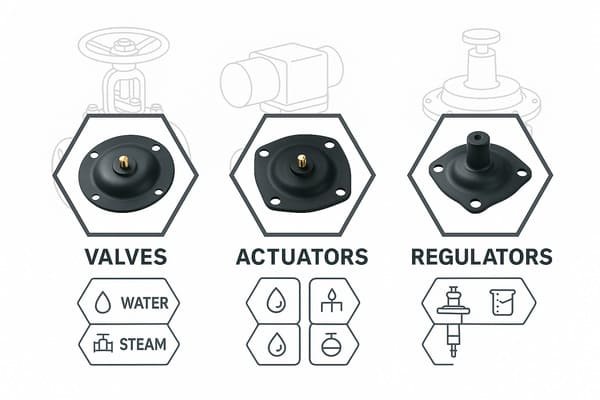

What types of equipment use rubber diaphragms?
Every day, I see new projects needing diaphragms in different shapes, sizes, and materials.
Diaphragms are used in metering pumps, dosing equipment, pneumatic actuators, air compressors, fuel systems, and even medical devices. Any system that needs precise movement and leak-free separation can benefit from a rubber diaphragm.
| ✅ Equipment | 🛠️ Application Area | Why a Diaphragm Is Needed |
|---|---|---|
| Metering pumps | Accurate dosing7 | Separation, chemical resistance |
| Pressure regulators | Gas/liquid control8 | Flexibility, repeatable action |
| Pneumatic actuators | Valve/door automation | Sealing with movement |
| Air compressors | Pressure control | Withstands cycles and pressure |
| Medical devices | Drug delivery, analysis9 | Non-toxic, precise movement |
For each project, I help buyers select the best rubber compound (NBR, EPDM, FKM, silicone) and reinforcement for the application.
Why do industries prefer rubber diaphragms?
Steel and plastic don’t offer the same flexibility or sealing power. Rubber stands out for tough jobs.
Industries prefer rubber diaphragms because they combine flexibility, chemical resistance, and durability. They adapt to pressure changes, resist aggressive media, and work in high-cycle environments where static seals would fail.
| ✅ Benefit | 🛠️ Description | Impact on Equipment |
|---|---|---|
| Flexibility10 | Bends and moves without cracking | Longer service life |
| Chemical resistance | Handles acids, alkalis, water | Safer, more reliable systems |
| Customization | Fits any size or shape | Perfect match for every job |
| Cycle durability11 | Survives millions of cycles | Fewer breakdowns |
| Regulatory approval | Food, water, medical compliance | Passes inspections |
I always recommend using certified, tested rubber diaphragms for critical projects. This prevents failures, reduces downtime, and saves costs in the long run.
Can rubber diaphragms be customized for special requirements?
Off-the-shelf parts do not always fit every application. Custom diaphragms solve many engineering headaches.
Rubber diaphragms can be made to any size, thickness, or shape. They can be reinforced with fabric, colored for identification, or certified for food, water, and chemical service. Custom solutions maximize reliability and safety.
| ✅ Custom Option12 | 🛠️ Benefit | Typical Application |
|---|---|---|
| Any dimension | Matches unique equipment | OEM, replacement |
| Fabric reinforcement13 | Higher pressure, longer life | Industrial pumps, actuators |
| Special material | Resists harsh chemicals | Chemical dosing |
| Marking/color | Easy identification, traceability | Service, maintenance |
| Regulatory approval14 | Meets safety, food, or pharma | Food, medical, drinking water |
I encourage buyers to send their requirements, drawings, or even samples for a perfect match.
What is the lifespan of a rubber diaphragm?
One of the most common questions I get is about service life. Diaphragm failure leads to downtime, so buyers want the best value and reliability.
The lifespan of a rubber diaphragm depends on material, pressure, media, temperature, and cycle frequency. Many high-quality diaphragms last from 1 to 5 years in continuous industrial use, or millions of cycles in well-designed systems.
Service life can vary widely. For example, in a gentle application with clean water, an EPDM diaphragm may last over five years. In a high-pressure chemical dosing pump, even a reinforced FKM diaphragm might need replacement after one or two years. Key factors that affect lifespan include:
Service life can vary widely. For example, in a gentle application with clean water, an EPDM diaphragm15 may last over five years. In a high-pressure chemical dosing pump16, even a reinforced FKM diaphragm might need replacement after one or two years. Key factors that affect lifespan include:
| ✅ Factor | 🛠️ Impact on Lifespan | Notes |
|---|---|---|
| Material selection | Chemical and temperature resistance | Use correct rubber for media |
| Operating pressure | Higher pressure shortens cycle life | Reinforce if needed |
| Cycle frequency | More cycles mean faster wear | Specify cycle rate |
| Media contamination | Abrasive or dirty fluids reduce life | Use filters, clean system |
| Installation quality | Poor installation can cause early failure | Ensure proper fit and torque |
Regular inspection and preventive maintenance17 help maximize diaphragm life. I always provide replacement recommendations based on each customer's actual operating conditions.
Conclusion
Rubber diaphragms are used to separate, seal, and transfer pressure or motion in countless systems. Their flexibility, chemical resistance, and ability to be customized make them essential for modern industry. A well-chosen and properly installed diaphragm can last millions of cycles and save your business from costly downtime.
