Flame accidents in electronics or vehicles can cause catastrophic losses. When I first learned about UL94 V0, I realized how crucial flame resistance is in rubber and plastic components.
UL94 V0 is a flammability standard that measures how easily a plastic or rubber material extinguishes after being ignited. Materials rated UL94 V0 stop burning within 10 seconds and do not drip flaming particles.
When customers ask me about UL94, I often explain that it’s not just a certificate—it’s a design guarantee. It protects devices, buildings, and people by defining how materials behave when exposed to fire.
What does UL94 V0 mean in plastics and rubber?
Many engineers confuse UL94 with temperature or chemical standards. In fact, UL94 is all about how a material burns—or rather, how it stops burning.
UL94 V0 means the material stops burning within 10 seconds after the flame is removed, leaves no flaming drips, and does not ignite the cotton placed below the test sample.
When I prepare test samples for customers, I follow UL’s procedure precisely: a vertical bar specimen is exposed to flame twice for 10 seconds. The total burning time and dripping behavior decide the grade—V0, V1, or V2.
UL94 Vertical Ratings Comparison
| Rating | Afterflame Time | Dripping Behavior | Cotton Ignition | Description |
|---|---|---|---|---|
| V-0 | ≤10 seconds | No flaming drips | No | Highest flame resistance1 |
| V-1 | ≤30 seconds | No flaming drips | No | Moderate flame resistance |
| V-2 | ≤30 seconds | Flaming drips allowed | Yes | Basic flame resistance |
In our factory, achieving V0 means perfect compound control. Even a small variation in formulation—like 1% change in carbon black2 or flame retardant3—can drop the grade to V1.
How is UL94 V0 testing4 performed?
Before mass production, I often send rubber compounds for third-party UL94 testing. The process is highly standardized and scientific.

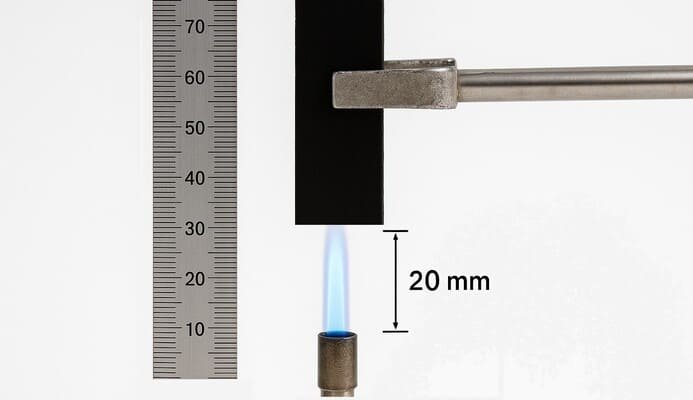

UL94 V0 testing involves exposing a vertically mounted specimen to a controlled flame for a specific duration and measuring the burning time and dripping behavior.
Every test sample must meet these conditions:
- Specimen size: 125 mm × 13 mm × thickness (0.4–13 mm)
- Flame height: 20 mm
- Flame exposure: 10 seconds × 2 times
- Distance between sample and cotton: 300 mm
After testing, we record:
- Total afterflame time for both ignitions
- Total afterglow time
- Dripping behavior and cotton ignition
UL94 V0 Test Procedure Summary
| Step | Description | Observation |
|---|---|---|
| 1 | Expose vertically mounted specimen to flame for 10 seconds | Record afterflame time (t1) |
| 2 | Remove flame and let it self-extinguish | Measure t1 |
| 3 | Reapply flame for another 10 seconds | Record afterflame (t2) and afterglow |
| 4 | Check for flaming drips and cotton ignition | Determine final rating |
It’s worth noting that UL94 HB is a horizontal test with much lower requirements. For industrial seals5 or automotive connectors6, only UL94 V0 or better is accepted.
What materials can reach UL94 V0 rating?
In my experience, not all rubber or plastic can easily reach V0. The key lies in both formulation and thickness.
Silicone, EPDM, and FKM (Viton) rubbers can achieve UL94 V0 with proper flame-retardant additives or specialized compounds. Thermoplastics like ABS, PC, and PA6 can also be modified to meet the same rating.
Typical UL94 V0 Material Examples
| Material | Category | UL94 Rating Potential | Applications |
|---|---|---|---|
| Silicone Rubber7 | Elastomer | V0 (excellent) | Electronics seals, aerospace |
| EPDM Rubber8 | Elastomer | V0 (with additives) | HVAC gaskets, automotive9 |
| FKM (Viton)10 | Elastomer | V0 (excellent) | Fuel seals, chemical industry |
| Polycarbonate (PC) | Thermoplastic | V0 (with FR) | Electrical11 housings |
| Nylon (PA66)12 | Thermoplastic | V0 (with FR) | Connectors, insulators |
Some flame retardants, like aluminum hydroxide (ATH) and bromine-based agents, can reduce burning rate. But each has trade-offs: brominated types may smoke, while mineral-based types may lower mechanical strength.
I’ve helped several customers redesign their EPDM seals13 with halogen-free flame retardants14 to pass UL94 V015 + RoHS16 + REACH17 together—a combination many European clients require.
Why is UL94 V0 important for electrical and automotive parts?
Fire safety is no longer optional—it’s a legal and commercial necessity. For components used in HVAC systems, electric vehicles, or battery packs, the UL94 V0 rating often appears in the first line of specifications.
UL94 V0 certification ensures that materials reduce fire risk, protect users, and meet the safety requirements of industries such as electronics, automotive, and construction.
Industries That Require UL94 V0 Certified Parts
| Industry | Typical Products | Importance of V0 |
|---|---|---|
| Electrical / Electronics | Connectors, insulators, PCBs | Prevent short-circuit fires |
| Automotive | Wire harness seals, battery gaskets | Reduce ignition risk |
| HVAC | Air duct seals, insulation gaskets | Limit flame spread in ducts |
| Construction | Cable seals, wall gaskets | Meet building fire codes |
I remember one European client who used our EPDM gasket in a control cabinet. During the UL audit, the inspector asked, “Is this gasket UL94 V0 certified?” That question alone confirmed how essential the standard is for product acceptance.
UL94 V0 doesn’t just make a product safer—it builds trust. It’s a silent guarantee that the part won’t turn a small spark into a disaster.
Conclusion
UL94 V0 defines how safe a material is when exposed to fire. It’s not just a label—it’s peace of mind for engineers, manufacturers, and end users.
-
