Seal performance depends not only on size and design but also on the material. The wrong choice may cause swelling, cracking, or leaks in service.
Spliced rubber rings are made from materials like EPDM, NBR, silicone, Viton (FKM), and neoprene, each chosen for specific resistance to temperature, chemicals, or environment.
When buyers select spliced rings, they often ask which rubber compound suits their project best. The answer depends on pressure, medium, and environmental exposure. I will explain the main material options.
Why does material selection matter?
Material choice defines resistance to temperature, oil, water, ozone, and chemicals.
The right rubber compound ensures the spliced joint remains durable and the ring provides a reliable seal over time.
I once saw a customer use NBR spliced rings1 in outdoor HVAC dampers. After a few months, cracks appeared from ozone exposure. Replacing them with EPDM2 solved the issue and doubled the service life. The wrong material costs more than the right one.

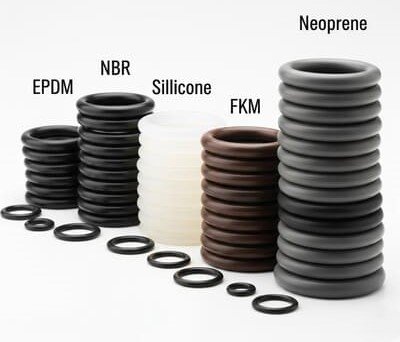

Common Materials for Spliced Rubber Rings?
EPDM (Ethylene Propylene Diene Monomer)
Best for outdoor, water, and weather-resistant applications.
- ✅ Ozone, UV, and weather resistance
- ✅ Excellent for HVAC, water treatment, and marine use
- ❌ Poor resistance to oils and fuels
NBR (Nitrile Rubber)
Best for oil and fuel contact.
- ✅ Good oil and fuel resistance3
- ✅ Affordable and widely used
- ❌ Limited ozone and weather resistance
Silicone Rubber (VMQ)4
Best for extreme temperatures.
- ✅ High and low temperature resistance (-60°C to +230°C)
- ✅ Food-grade and medical safe versions available
- ❌ Lower tear strength compared to other rubbers
FKM (Viton®)5
Best for chemicals and high heat.
- ✅ Excellent chemical resistance
- ✅ Works well with fuels and aggressive solvents
- ❌ Higher cost than most materials
Neoprene (CR)6
Best for general industrial use.
- ✅ Good balance of oil, weather, and abrasion resistance
- ✅ Cost-effective for medium performance
- ❌ Limited chemical resistance compared to FKM
Material Selection Table
| Material | Temperature Range7 | Strengths | Limitations | Best Applications |
|---|---|---|---|---|
| EPDM | -50°C to +150°C | Weather, ozone, water resistance | Poor oil resistance | HVAC, outdoor, water systems |
| NBR | -30°C to +120°C | Oil and fuel resistance | Weak against ozone | Oil seals, fuel systems |
| Silicone | -60°C to +230°C | Extreme temperature, FDA compliance | Low tear strength | Food, medical, electronics |
| FKM (Viton) | -20°C to +200°C | Chemical and heat resistance | Expensive | Chemical plants, aerospace, fuel |
| Neoprene | -40°C to +120°C | Balanced resistance, weather durability | Moderate chemical limits | Marine, HVAC, industrial general use |
How to choose the right material for Spliced Rubber Rings?
Many engineers ask me which compound to pick. The answer depends on environment, chemicals, and working conditions.
You should choose the material by matching it to the temperature range, chemical exposure, and sealing pressure of your application.
Key Factors to Consider
- Temperature: Silicone and FKM handle high heat, EPDM is stable in cold outdoor use.
- Chemical Resistance8: NBR for oil, FKM for aggressive solvents, EPDM for water and steam.
- Ozone & Weather: EPDM and neoprene are excellent outdoors.
- Industry Standards: Food-grade silicone or FDA EPDM for food and medical.
- Cost vs Performance9: NBR and neoprene are affordable; FKM is premium but lasts longer.
Selection Guide
| Condition | Recommended Material |
|---|---|
| Outdoor / UV exposure10 | EPDM or Neoprene |
| Oil and fuel contact | NBR or FKM |
| Extreme temperature (-60°C to +230°C)11 | Silicone |
| Aggressive chemicals12 | FKM (Viton®) |
| Food or medical safety13 | Silicone or FDA EPDM |
| General industrial static seal14 | Neoprene or EPDM |
I once guided a chemical plant client. They used NBR in tanks exposed to solvents, and it failed quickly. After switching to FKM, their downtime decreased and seal life doubled. Choosing the right material at the start prevents failure later.
Conclusion
Spliced rubber rings can be made from EPDM, NBR, silicone, FKM, or neoprene. The right choice depends on temperature, chemicals, and environment.
-
