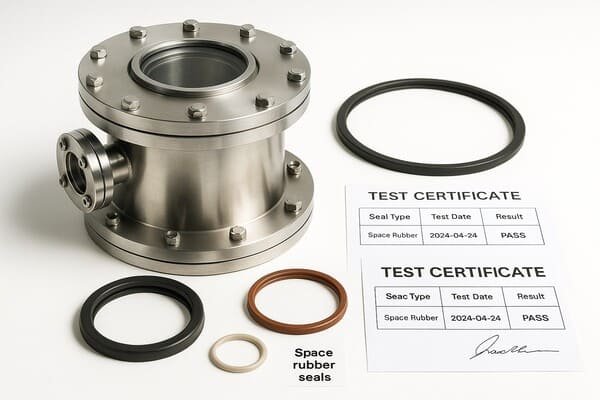

Space missions face extreme conditions—radiation, vacuum, and wild temperature swings. I have seen how regular rubber fails quickly in space, risking expensive equipment and mission safety.
The main types of rubber used in space are silicone rubber, fluorosilicone (FVMQ), and fluoroelastomer (FKM/Viton®). These materials handle extreme temperatures, vacuum, and chemical exposure. Each is chosen for unique sealing and insulation needs in satellites, rockets, and space stations.
Choosing rubber for space is not like ordinary applications. Every part must survive in an environment with no atmosphere, huge temperature swings, and high radiation. I always stress to customers: Only use tested and approved compounds for space.
Why does space need special rubber materials?
Ordinary rubber materials break down, crack, or outgas in the vacuum of space. Even a small gasket failure can ruin an entire mission.
Space demands rubbers that do not outgas, resist radiation, stay flexible at extreme temperatures, and withstand aggressive chemicals or fuels. Certification and strict testing are mandatory for flight hardware.
Key Challenges for Rubber in Space
| Challenge | Required Rubber Property |
|---|---|
| Extreme temperatures | Flexible from -100°C to +200°C or more |
| Vacuum/outgassing | Low outgassing compounds1, non-volatile |
| Radiation | Resistance to ionizing radiation |
| Chemical exposure | Compatibility with fuels, coolants, cleaning |
| Pressure/Sealing | No leaks in vacuum, low compression set |
A regular EPDM or NBR gasket might work well on Earth, but in orbit, it would harden, crack, or “outgas” (release trapped chemicals), contaminating critical sensors.
What rubber types are actually used for space missions?

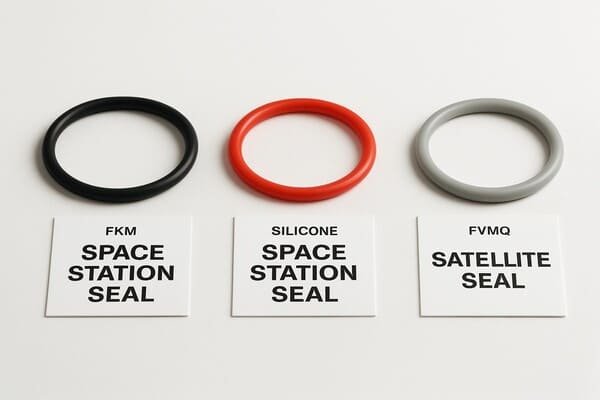

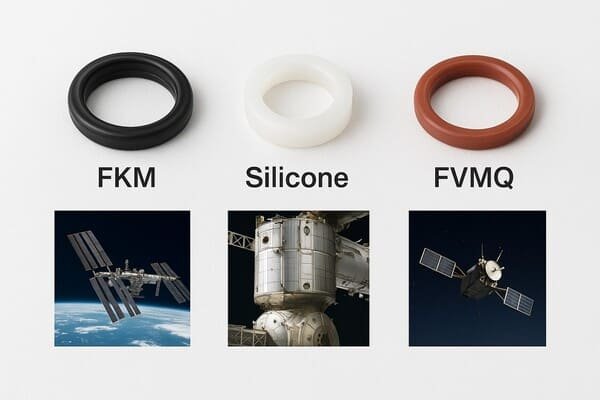

Space-grade silicone, fluorosilicone, and FKM (Viton®) are the primary materials for critical seals and insulation.
Silicone rubber is used for thermal stability and electrical insulation. Fluorosilicone offers both low outgassing and strong chemical resistance. FKM (Viton®) is selected for chemical compatibility with aggressive fuels and high heat.

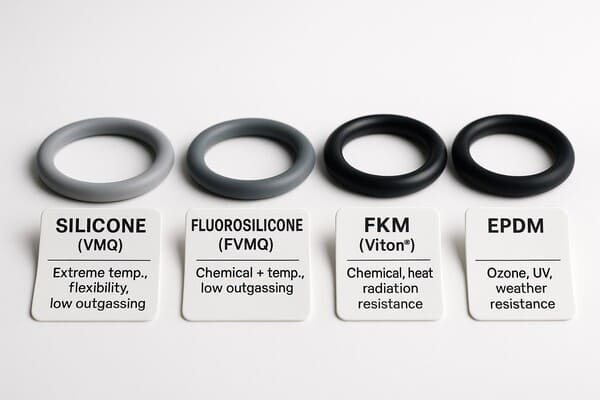

Table: Main Space-Grade Rubbers
| Rubber Type | Main Strengths | Where Used in Space | Limitations |
|---|---|---|---|
| Silicone (VMQ) | Extreme temp, flexibility, low outgassing | Insulation, seals, pads, covers | Weaker chemical resistance |
| Fluorosilicone (FVMQ)2 | Chemical + temp, low outgassing | Fuel system seals, O-rings | Expensive, harder to process |
| FKM (Viton®)3 | Chemical, heat, radiation resistance | Propellant, engine, hatch seals | Costly, less flexible at low temp |
| EPDM (in limited, non-critical roles) | Ozone, UV, weather resistance | Some ground equipment, non-flight | Not vacuum compatible |
Fluorosilicone and FKM are more expensive than regular silicone, but their performance is critical for safety. For space, manufacturers also use only grades certified for “low outgassing” by NASA, ESA, or other space agencies.
What are typical applications for rubber in space systems?
Every spacecraft uses rubber for vital seals, insulation, and protection—but only after the strictest testing.
Common applications include O-rings for hatch seals, insulation pads for electronics, vibration dampers, cable boots, and fuel system gaskets. Many parts are custom-molded and undergo vacuum, temperature, and chemical testing before flight.
Typical Spacecraft Rubber Parts
| Application | Rubber Used | Purpose |
|---|---|---|
| Hatch/door O-rings | Fluorosilicone, FKM | Airtight/vacuum sealing |
| Thermal insulation | Silicone, Silicone foam | Protect electronics, thermal barriers |
| Cable boots/grommets4 | Silicone, FVMQ | Flexible wiring protection |
| Vibration dampers5 | Silicone, FKM | Shock absorption for instruments |
| Fuel system seals6 | FKM, FVMQ | Resist rocket propellants |
As an example, I once helped a customer source low-outgassing silicone O-rings7 for a satellite. We needed to provide NASA’s ASTM E595 certification8 to prove the rubber would not contaminate sensitive optics in space.
What standards and certifications are required for space rubber?
Using the wrong rubber can lead to catastrophic failure. Space agencies require strict compliance with outgassing and performance standards.
NASA, ESA, and other space programs require materials to pass outgassing (ASTM E595), temperature cycling, and radiation resistance tests. Only pre-qualified, traceable rubber compounds are accepted for flight hardware.
Space Rubber Certification Table
| Standard/Test | What It Ensures | Typical Requirement |
|---|---|---|
| ASTM E595 (Outgassing) | Low TML/volatile content | TML <1%, CVCM <0.1% |
| Temperature cycling9 | Function after hot/cold | -100°C to +200°C, cycles |
| Radiation resistance10 | Survives ionizing radiation | Specified Gray (Gy) |
| Traceability | Material batch traceable | Certified suppliers |
| Cleanroom processing | No contamination | Assembled in cleanroom |
In my work, I never recommend standard grades for critical aerospace use. Every batch should come with full certification, traceability, and test reports.
Conclusion
Only certified, low-outgassing rubbers like silicone, fluorosilicone, and FKM are used in space. They protect against vacuum, temperature, and chemical extremes—ensuring mission success and safety.
-
