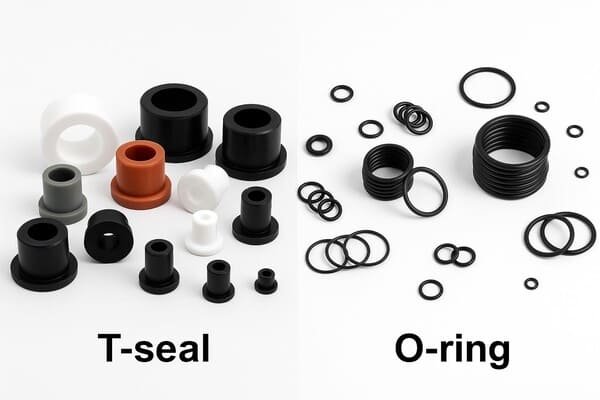

Choosing the wrong seal leads to leakage, machine downtime, and costly failures. Many people confuse T-seals with O-rings, but they are very different.
A T-seal has a T-shaped elastomer profile with backup rings for high-pressure resistance, while an O-ring is a simple round cross-section seal that is cheaper but less stable under pressure.
Both types of seals are widely used, but their designs, strengths, and applications are not the same. Knowing the differences helps me select the right solution.
What is an O-ring?
An O-ring is one of the most common seals in the world. It is simple, cheap, and versatile.
An O-ring is a rubber sealing ring with a circular cross-section that fits into a groove and creates a seal when compressed.
O-Ring Characteristics
- ✅ Simple round cross-section
- ✅ Works in static and dynamic sealing
- ✅ Inexpensive and easy to install
- ✅ Widely available in many sizes and materials
Common Limitations
- ❌ Can twist in the groove
- ❌ Weak extrusion resistance1 under high pressure
- ❌ Shorter lifespan in dynamic, high-pressure systems
I often recommend O-rings for general sealing of fluids and gases where pressure is moderate and cost matters.
What is a T-seal?
When pressure rises, O-rings2 can fail. That is where a T-seal3 comes in.
A T-seal is a sealing element shaped like the letter “T,” with an elastomer center and backup rings on both sides, designed to resist extrusion and twisting.
T-Seal Characteristics
- ✅ T-shaped profile stays stable in the groove
- ✅ Backup rings prevent extrusion under high pressure
- ✅ Longer service life4 in dynamic conditions
- ✅ Suitable for hydraulic and pneumatic cylinders5
Although more expensive than O-rings, T-seals provide higher reliability in critical equipment.
Key differences between T-seals and O-rings
It is easy to think of T-seals as “just reinforced O-rings.” The truth is that their designs and performance levels are very different.
The main difference is that an O-ring is simple and low-cost, while a T-seal is reinforced and stable under pressure, making it ideal for demanding hydraulic systems.
Comparison Table: T-Seal vs O-Ring
| Feature | O-Ring | T-Seal |
|---|---|---|
| Cross-section | Round | T-shaped with backup rings |
| Stability | Can twist or roll | Stable in groove |
| Pressure resistance | Moderate | Very high |
| Extrusion resistance | Weak | Strong (with backup rings) |
| Service life | Shorter | Longer |
| Cost | Low | Higher |
| Applications | General sealing | High-pressure hydraulic/pneumatic |
In my projects, I use O-rings when the system is simple and low-pressure. I choose T-seals when reliability and long-term sealing under pressure are critical.
When should I choose one over the other?
Seal failure often comes from using the wrong design. Cost should not be the only factor.
I use O-rings for low to medium pressure applications, and I choose T-seals when I need durability and extrusion resistance in high-pressure, high-cycle equipment.
Selection Guide
| Application | Best Choice | Reason |
|---|---|---|
| Static flange sealing6 | O-ring | Simple, low cost |
| Low-pressure pneumatic cylinder7 | O-ring | Works well, easy replacement |
| Hydraulic cylinder piston8 | T-seal | Resists extrusion at high pressure |
| Aerospace hydraulics9 | T-seal | High reliability required |
| Long-life industrial equipment | T-seal | Longer service life4 |
From my experience, customers often start with O-rings because they are cheaper. But when systems run at high pressure or cycle continuously, I always recommend T-seals to prevent failures.
Conclusion
An O-ring is simple and low-cost, while a T-seal is reinforced and reliable under pressure. Choosing the right one depends on system pressure, stability needs, and service life requirements.
-
