When Is Compression Molding Preferable to Injection Molding for Rubber?

I often see buyers pick a molding process too early. I see late design changes, higher scrap, and missed lead times when the process does not match the rubber part.

Compression molding is preferable when I need lower tooling cost, better control for high-durometer or specialty compounds, simpler tooling changes, and stable results for medium volumes, inserts, or thick parts where injection can trap air or raise shear heat.

I treat this choice as a risk decision, not a habit. I look at geometry, volume, compound behavior, and the buyer’s tolerance for tooling cost and process sensitivity. I also think about what can go wrong in production, because that is where the true cost shows up.

What Part Geometries and Tolerances Make Compression Molding the Safer Choice?

Many rubber parts look simple on a drawing. I still see warpage, trapped air, and flash that causes leaks when the process is not aligned with the part shape.

Compression molding is often safer when the part is thick, the flow path is short, the design has broad sealing faces, or the part includes inserts that must stay in position. It also helps when I need stable compression set and low internal stress.

I start with thickness, flow length, and venting

I check where the rubber must flow, and I check where air must escape. Injection molding pushes rubber through runners and gates, so the flow length matters more. Compression molding places the preform close to the final shape, so the rubber does not need to travel as far.

✅ I often prefer compression when:

• ✅ The part has thick cross-sections that cure slowly.
• ✅ The part has a wide gasket face¹ where I want uniform pressure marks.
• ✅ The part uses metal inserts, and the insert must not tilt.
• ✅ The cavity needs simple, reliable venting.

I also consider the seal line². Many sealing products can tolerate a controlled parting line. Some cannot. When a seal line sits on a critical sealing lip, I adjust the design, or I change the process, or I change both.

I compare tolerance needs in a practical way

I do not promise “tight tolerance” without a process plan. Rubber is elastic, and rubber shrinks, and rubber relaxes. Injection molding can hold certain dimensions well in high volume, but it is also sensitive to injection pressure, mold temperature, and cure balance³. Compression molding is slower, yet it can be very stable when the mold is simple and the compound cures in a predictable way.

I use the “defect map” to decide faster

When I review a new rubber drawing, I map likely defects to process causes. This keeps the discussion concrete.

I learned this lesson early. I once approved an injection concept for a thick rubber bumper because the cycle time⁷ looked attractive. The first trial showed a clean surface, yet the part had hidden porosity near a thick core. I moved that part to compression molding with a better vent layout and a preform that matched the cavity. The porosity dropped, and the part performance became repeatable. I still remember that project because it taught me that “fast fill” is not free.

How Do Tooling Cost, Volume, and Lead Time Make Compression Molding Preferable?

Many buyers ask me for a simple rule. I do not use one rule. I use a cost curve. Tooling cost and cycle time trade places as volume grows.

Compression molding is preferable when I need low-to-medium volume efficiency, faster tooling modifications, or lower upfront tool investment, especially when the design may change after first articles.

I separate “tooling cost⁸” from “total landed cost”

Injection molds for rubber often need runner systems, gates, and tighter thermal control. They also need a press with injection capability. That increases cost and limits where I can run the tool. Compression tools are often simpler. They can run on more standard presses. This matters when the buyer wants flexibility.

✅ I often prefer compression when:

• ✅ The order quantity is uncertain.
• ✅ The buyer expects revisions after samples.
• ✅ The part family has many sizes and frequent changes.
• ✅ The part uses multiple compounds, and color changes are frequent.

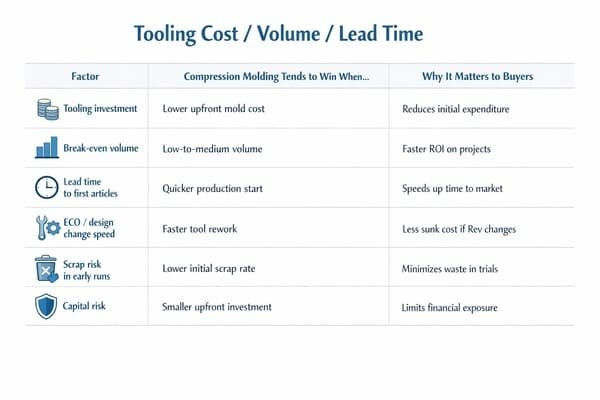

I use a simple economics table for buyers

I do not show only piece price. I show where money is spent.

I consider the buyer’s supply risk⁹, not only unit cost

Many B2B buyers care about stockouts more than a small unit price difference. If a tool is expensive and slow to modify, then a late design change can freeze supply. Compression tools often give me a smoother path for early-stage projects. That matters for new HVAC gasket profiles, custom sealing pads, and parts with evolving mating surfaces.

I also consider capacity. Injection presses can deliver high output, yet they require a stable schedule and stable compound supply. Compression presses are easier to schedule for mixed jobs. When I support buyers who place many small repeat orders, compression molding often keeps delivery more reliable.

I add transfer molding as a practical middle option

Some parts sit between the two extremes. When I need better fill than compression but I do not want a full injection system, I consider transfer molding. Transfer molding can reduce flash and improve feature fill. It can also handle inserts well. I still decide based on part risk and volume.

Which Rubber Compounds and Quality Risks Make Compression Molding Preferable?

Many buyers assume the process choice is only about shape. I see compound behavior¹⁰ drive the outcome. Rubber cures, and rubber can scorch, and rubber can trap volatiles.

Compression molding is often preferable when the rubber compound is high viscosity, high durometer, filled heavily, or sensitive to shear heat. It can also be preferable when I need stable properties with simple process controls.

I look at viscosity, scorch safety, and filler loading

Injection molding pushes rubber at higher shear rates. Some compounds handle that well. Some do not. If a compound has a narrow scorch window, injection can trigger premature curing in the barrel or runners. If a compound is heavily filled, injection can create uneven flow and heat spots.

✅ I often prefer compression when:

• ✅ The compound is 80–95 Shore A and feels “stiff” during mixing.
• ✅ The compound has high filler content for wear or stiffness.
• ✅ The compound includes additives that can outgas.
• ✅ The part needs a calm cure profile to protect physical properties.

I use a compound-to-process compatibility table

This table is not a law. It is a fast starting point for technical discussions.

I focus on performance metrics¹¹ that buyers actually feel

A buyer does not want a “nice part.” A buyer wants a seal that does not leak, and a gasket that keeps torque, and a part that does not crack during installation.

I connect process choice to these metrics:

• Compression set stability
• Tear behavior at the parting line
• Density uniformity and porosity risk¹²
• Dimensional repeatability after post-cure
• Surface finish at sealing faces

I show a performance comparison table for procurement and engineering

I show a performance comparison table for procurement and engineering

I keep the language simple because many procurement teams must report risks to engineers and managers.

I use a simple process-control checklist

I do not rely on process choice alone. I rely on controls that keep output stable.

✅ Controls I apply in compression molding:

• ✅ I control preform weight and shape.
• ✅ I control preheat time¹⁵ when needed.
• ✅ I control press temperature mapping.
• ✅ I control cure time¹⁶ and post-cure schedule.
• ✅ I record cavity and batch traceability for repeat orders.

✅ Controls I apply in injection molding:

• ✅ I control barrel temperature and residence time.
• ✅ I control injection speed and pressure profile.
• ✅ I control gate design and runner balance.
• ✅ I control venting and vacuum options if needed.
• ✅ I run short-shot studies during validation.

I also add a personal note from my work. I once supported a buyer who wanted one compound for several gasket sizes and many small repeat orders. Injection looked attractive on paper. The reality was frequent compound changes and frequent setup. Compression molding reduced changeover loss, and it kept quality consistent across sizes. The buyer cared most about delivery stability, so compression became the better business choice.

Conclusion

I prefer compression molding when the part is thick, the compound is sensitive, the design may change, or the volume is not yet stable. I prefer injection when volume is high and the design is mature.
