When to Use Injection Molding for Rubber Parts?

Many rubber parts fail because the process choice was made too fast. I often see high scrap, unstable dimensions, and late rework when the wrong mold method is forced.

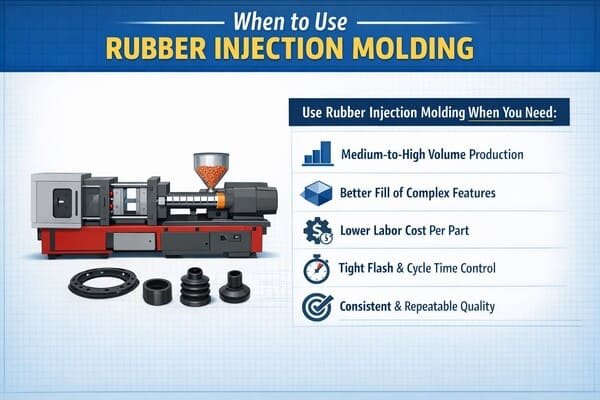

I use rubber injection molding when I need repeatable output at medium-to-high volume, better fill of complex features, lower labor per part, and tighter control of flash and cycle time once the design is stable.

I treat injection molding as a production system, not only a molding method. I look at part geometry, annual volume, compound behavior, and the buyer’s tolerance for tooling cost. I also look at how defects show up in real assemblies, because seals do not fail on a lab bench. They fail in the field.

What Part Designs and Volumes Make Injection Molding the Best Fit?

Many buyers want injection molding because it sounds “advanced.” I do not use that logic. I use injection molding when the part demands controlled filling and repeatable output at scale.

Injection molding is a strong fit when the part has complex geometry, thin ribs, multiple cavities, or tight cosmetic needs, and when the volume is high enough to justify higher tooling and process tuning.

I start with a simple geometry screen

I check how far the rubber must flow, and I check how many fine details must fill. Injection molding can push rubber into thin sections¹ that compression can struggle to fill. That advantage matters when features are functional, not decorative.

✅ I often choose injection molding² when:

• ✅ The part has thin sealing lips, ribs, or intricate grooves.
• ✅ The part has many cavities³ and must be consistent cavity-to-cavity.
• ✅ The part needs controlled flash⁴ for automated trimming.
• ✅ The part is produced in stable, repeated runs.

I also check if the design is “frozen.” Injection molds for rubber can be expensive and slow to modify. If the drawing may change after first samples, I often start with a simpler method, then I move to injection when the design stops moving.

I connect annual demand⁵ to the true cost drivers

Injection molding often wins when a buyer needs steady supply, stable dimensions⁶, and lower labor per part. The cycle can be faster. The output per shift can be higher. The process can run with less handling. Those points matter in B2B projects where a warehouse depends on predictable replenishment.

I use a “maturity check⁷” before I push injection

I ask three practical questions. I answer them with the buyer’s real constraints.

1) Is the drawing stable for the next 12 months?
2) Is the demand stable enough to keep the tool running regularly?
3) Is the compound choice⁸ final, including hardness and color?

If the answer is “no,” injection can still work, but the project must budget for iterations. I learned this the hard way. I once supported a gasket family where the mating flange kept changing. Each change forced gate and vent updates. The final part was excellent, yet the path was expensive. Since then, I push injection later in the project when the geometry and assembly stack-up become stable.

I compare process fit by part type

I keep this table simple because it helps procurement⁹ and engineering speak the same language.

How Does Injection Molding Improve Consistency, and What Quality Risks Must I Control?

Many buyers only ask, “Is injection molding higher quality?” I do not answer that with a yes. Injection molding can improve consistency, yet it can also create new failure modes if the process is not tuned.

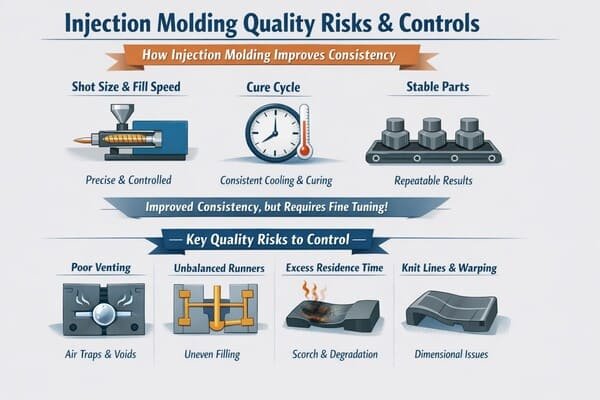

Injection molding improves repeatability by controlling shot size, fill speed, and cure cycle, but it needs careful control of venting, runner balance, and residence time to avoid air traps, knit lines, scorch, and dimensional drift.

I treat defects as signals, not as surprises

In injection molding, rubber flows through runners and gates. That flow creates patterns. Those patterns can show as knit lines, trapped air, or weak areas. A buyer may see a leak at one corner and think the material is bad. I often find the real cause in venting and flow path.

✅ Defects I watch most:

• ✅ Air traps and bubbles near thick-to-thin transitions
• ✅ Knit lines where two flow fronts meet
• ✅ Excess flash that damages sealing faces
• ✅ Scorch marks from excessive heat or long residence time
• ✅ Shrink variation between cavities³

I map each risk to a control lever

This table is how I keep reviews objective. It also helps buyers understand why process settings matter.

I think about sealing performance, not only appearance

A seal can look perfect and still fail. I focus on the surfaces that touch metal and the zones that carry compression. I also consider that rubber relaxes over time, so cure balance matters.

I track these outcomes because they connect to field performance:

• Compression set trend by batch
• Hardness drift between lots
• Flash location relative to sealing line
• Tear initiation near knit lines
• Post-cure shrink and size shift

I use validation steps¹² that match the risk level

I do not run the same validation for every part. I scale it with application risk. A non-critical bumper needs less than a gasket that must pass a tight leak spec.

I also use a personal story here. Early in my career, I accepted “visual OK” for a molded seal that had a hidden knit line on a critical compression zone. The part passed incoming checks. The part later showed micro-leaks in cold conditions. I changed my rule after that. I now treat knit-line location as a design feature, not as a cosmetic detail.

Which Rubber Compounds Run Well in Injection Molding, and When Should I Avoid It?

Many buyers assume any rubber can be injection molded the same way. I do not agree. Compound design drives flow, scorch safety¹³, and cure window. The same polymer family can behave very differently across suppliers and formulations.

Rubber injection molding works best for compounds with stable flow and adequate scorch safety, such as many EPDM, NBR, HNBR, FKM, and silicone formulations, while very high-viscosity or scorch-sensitive compounds require careful tuning or a different process.

I look at three compound behaviors first

I do not start with polymer names. I start with behavior because it predicts trouble.

1) Flow under shear¹⁴: Does the compound fill thin sections without tearing or trapping air?
2) Scorch safety: Does the compound tolerate residence time in the injection unit?
3) Cure balance: Does the compound cure evenly across thick and thin areas?

These points decide if injection will be stable or fragile.

✅ I often see injection molding perform well when:

• ✅ The compound has a wide processing window.
• ✅ The compound is consistent lot to lot.
• ✅ The compound is designed for molded flow, not only for extrusion.
• ✅ The part does not demand extreme thickness with fast cycles.

I use a practical “compound fit¹⁵” table

This table is a starting point. I still validate with trials because compounding details matter.

I avoid injection molding in a few common cases

Injection molding is not “wrong” in these cases, yet it becomes harder to run and more sensitive.

I become cautious when:

• The part has very thick cores that trap gas and need long cure.
• The compound has a narrow scorch window and cannot tolerate residence time.
• The order volume is low and the drawing may change often.
• The part needs frequent material changes that create downtime and purge waste.

I align process to buyer concerns that show up in procurement

Procurement teams usually care about delivery stability, lot consistency, inspection evidence, and total cost. Injection molding can support these goals when the project is mature.

I always return to one simple truth. A stable compound and a stable drawing make injection molding shine. A moving target makes it expensive.

Conclusion

I use rubber injection molding when volume is stable, geometry is complex, and repeatability matters more than low tooling cost. I control venting, runner balance, and scorch safety to keep defects from becoming field failures.
