Potable water leaks are rarely dramatic at first. They start small, then turn into hygiene issues, complaints, and rework.

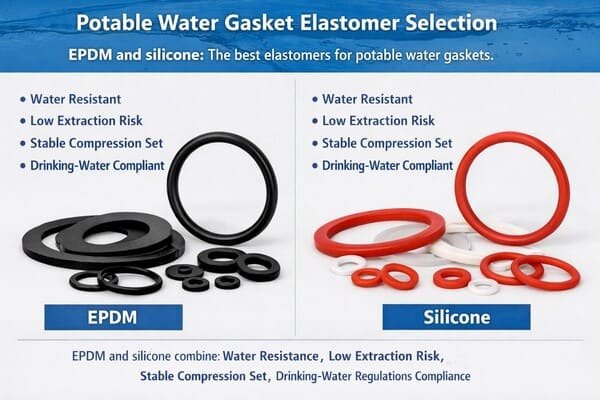

The best elastomers for potable water gaskets are EPDM and silicone, because they combine water resistance, low extraction risk, stable compression set, and compliance with drinking-water regulations when properly formulated.
When buyers ask me for a “safe rubber for drinking water,” I never answer with one word. Safety, sealing life, and certification must all align. I have seen good rubbers fail potable systems simply because the wrong detail was ignored.
Why EPDM Is the Most Common Choice for Potable Water Gaskets?
EPDM is not popular by accident. It fits the chemistry of water very well.
EPDM is widely used for potable water gaskets because it resists water, steam, and aging, shows low compression set in aqueous environments, and can meet major drinking-water approvals when compounded correctly.
How I explain EPDM to buyers
EPDM1 does not like oil. But potable water systems2 are oil-free by design. That makes EPDM a natural match. Its polymer structure stays stable in water and hot water for long periods.
Key reasons I rely on EPDM:
- Excellent resistance to cold and hot water
- Stable performance in steam and glycol
- Strong ozone and aging resistance
- Long service life in static seals
Typical potable water applications using EPDM
| Application | Why EPDM works well | Risk to watch |
|---|---|---|
| Pipe flange gaskets3 | Low set, long life | Oil contamination |
| Valve seals4 | Stable under pressure | Poor groove design |
| Drinking water hoses5 | Flexibility + water resistance | Wrong hardness |
| HVAC water loops | Heat + water stability | Mixed chemicals |
A real lesson from field feedback
I once saw EPDM gaskets blamed for taste issues. The real cause was not EPDM itself, but an unapproved additive used in the compound. The base polymer was right. The formulation was wrong.
🛠️ My rule: EPDM is excellent for potable water only when the full compound is approved, not just the polymer name.
When Is Silicone a Better Choice for Potable Water Gaskets?
Silicone is not always necessary, but sometimes it solves problems EPDM cannot.
Silicone rubber is preferred for potable water gaskets when high temperature, low odor, easy compression, or very low sealing force is required, especially in sensitive or hygienic environments.
How silicone behaves in water systems
Silicone remains flexible over a very wide temperature range6. It seals easily with low force. That makes it useful when flanges are thin or assembly force is limited.
Key advantages I see:
- Very wide temperature range
- Neutral taste and odor when properly cured
- Easy sealing at low compression
- Good stability in clean water
Typical silicone potable water uses
| Application | Why silicone is chosen | Limitation |
|---|---|---|
| Faucet and valve seals | Low force sealing | Lower tear strength |
| Household drinking systems | Neutral odor | Higher cost |
| High-temperature water | Heat stability | Oil exposure risk |
| Medical-related water lines | Clean perception | Abrasion sensitivity |
A production-side observation
Silicone gaskets often pass all water tests but fail mechanically if misused. I have seen them tear during installation because the groove was sharp. Silicone needs gentle design.
🛠️ My rule: choose silicone for temperature and cleanliness, not for rough handling.
Why Nitrile Rubber Is Usually a Poor Choice for Potable Water?
Many buyers ask about nitrile because it is common and cost-effective. In potable water, it is usually the wrong tool.
Nitrile rubber is generally not suitable for potable water gaskets because it offers limited water resistance, higher extraction risk, and poor aging in hot water environments.
Problems I see with nitrile in water
- Swelling over time
- Hardening or loss of elasticity7
- Taste or odor complaints
- Short service life in hot water
Where nitrile might appear by mistake
| Situation | Why it is chosen | What goes wrong |
|---|---|---|
| Cost-driven substitution | Lower price | Early aging |
| Mixed media confusion | Oil + water assumed | Water dominates |
| Temporary installations | “Short life” thinking | Still fails too soon |
🛠️ My rule: if it is drinking water, nitrile should not be the default choice.

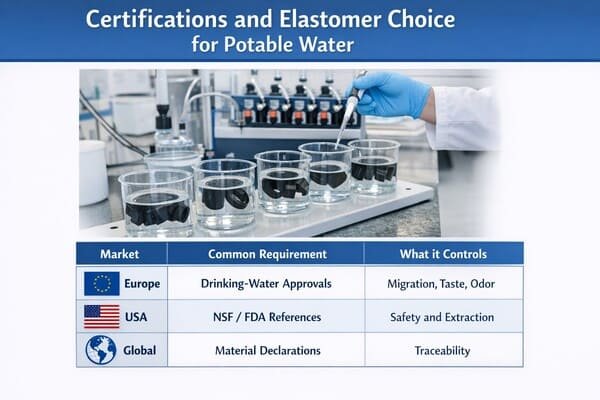

How Do Certifications Affect Elastomer Choice for Potable Water?
Potable water is not only about performance. It is also about compliance.
Elastomers for potable water must meet specific drinking-water standards, and certification often matters more than the rubber family itself.
Certifications I see buyers ask for
| Market | Common requirement | What it controls |
|---|---|---|
| Europe | Drinking-water approvals | Migration, taste, odor |
| USA | NSF / FDA references | Safety and extraction |
| Global | Material declarations | Traceability |
Why certification alone is not enough
A certified compound can still fail if:
- Hardness is wrong
- Compression set is too high
- Seal design causes over-compression
- Temperature exceeds the test range
I always tell buyers that certification proves safety. It does not guarantee sealing life.
How Hardness and Compression Set Matter in Potable Water Gaskets
Water systems run for years. Compression set decides whether the seal survives.
For potable water gaskets, medium hardness with low compression set is usually more important than high stiffness or strength.
Typical hardness ranges8 I start with
| Application | Hardness range (Shore A) | Reason |
|---|---|---|
| Pipe flange gasket | 60–70 | Balance of force and recovery |
| Valve seal | 50–60 | Easy sealing |
| Flat washer | 70 | Shape stability |
Why low compression set wins
Water pressure is constant. If the gasket relaxes, leaks appear slowly and silently. That is why I always review compression set9 data at real water temperature.
🛠️ My habit: hardness is selected first, but compression set decides final approval.

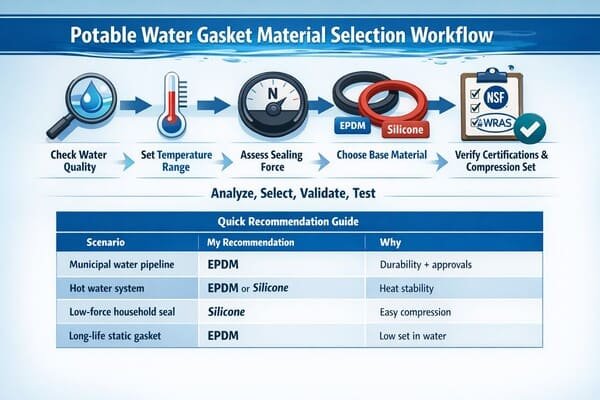

How Do I Choose the Best Elastomer for a Potable Water Project?
There is no shortcut. The choice must match the system.
I choose the best elastomer for potable water gaskets by combining media analysis, temperature range, sealing force, and certification, then validating compression set in real conditions.
My practical selection logic
- Confirm the fluid is truly potable water.
- Define maximum and continuous temperature.
- Check available sealing force.
- Select EPDM or silicone as the base option.
- Verify certifications and compression set data.
Quick recommendation table
| Scenario | My recommendation | Why |
|---|---|---|
| Municipal water pipeline | EPDM | Durability + approvals |
| Hot water system | EPDM or silicone | Heat stability |
| Low-force household seal | Silicone | Easy compression |
| Long-life static gasket | EPDM | Low set in water |
A reminder I often repeat
Most potable water failures come from good intentions and poor details. The right elastomer, properly compounded and tested, prevents years of trouble.
Conclusion
EPDM is the standard choice for potable water gaskets, while silicone excels in high-temperature or low-force systems. Certification and compression set decide long-term success.
-
