Choosing the right material can make or break your project. Using the wrong material for your seals, gaskets, or parts can lead to performance issues, failures, or expensive repairs.
EPDM offers superior weather, ozone, and UV resistance, while PVC is cost-effective, easy to process, and chemically resistant. Your choice depends on the specific needs of your application.
To help you decide between EPDM and PVC, let’s compare their properties, strengths, and typical applications to find out which material is better suited to your needs.
What are the key differences between EPDM and PVC?
Not all materials are created equal. What makes EPDM and PVC distinct in terms of performance and suitability?
EPDM (Ethylene Propylene Diene Monomer) is a synthetic rubber known for its exceptional weather, UV, and ozone resistance. PVC (Polyvinyl Chloride) is a widely used thermoplastic with good chemical resistance and ease of processing but lower tolerance to extreme environmental conditions.
Basic Comparison Table
| Feature | EPDM | PVC |
|---|---|---|
| Composition | Synthetic rubber (elastomer) | Thermoplastic plastic |
| Weather Resistance1 | Excellent | Poor to moderate |
| Temperature Range2 | -50°C to +150°C | -15°C to +60°C (soft PVC) |
| Chemical Resistance3 | Excellent for water, ozone, UV | Good for acids, bases, oils |
| UV/Ozone Resistance | Excellent | Poor to moderate |
| Flexibility4 | Excellent | Good, but stiffens with cold |
| Cost5 | Moderate | Low |
Key Points
- EPDM6 is ideal for outdoor and high-weather conditions, such as in automotive and roofing applications.
- PVC7 is more affordable, easier to process, and works well for indoor applications like pipes, flooring, and window profiles.

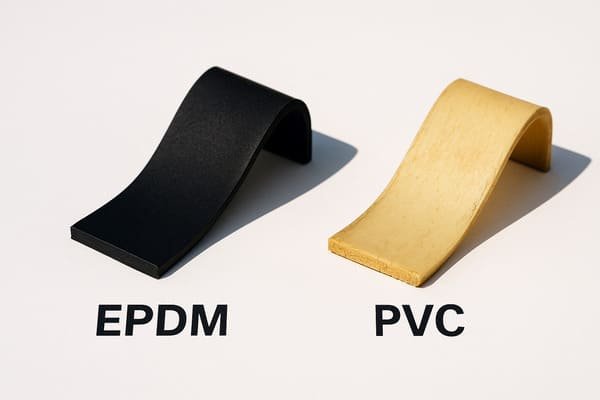

Which material performs better in outdoor conditions?
Exposed to the elements, materials can degrade quickly. Which one offers superior durability for outdoor use?
EPDM excels in outdoor conditions due to its exceptional resistance to UV rays, ozone, and extreme weather. PVC tends to degrade, yellow, or become brittle when exposed to UV light and harsh weather.
Outdoor Durability8 Comparison
| Material | UV Resistance9 | Weathering Resistance | Ideal Uses for Outdoor |
|---|---|---|---|
| EPDM | Excellent | Excellent | Roofing, automotive seals |
| PVC | Poor to Moderate | Poor | Indoor, plumbing |
Why EPDM is Better Outdoors
- EPDM maintains flexibility and durability despite exposure to sun, rain, snow, and temperature extremes.
- PVC can become brittle and cracked under UV exposure, leading to failure in outdoor applications.
How do EPDM and PVC compare in temperature tolerance?
Temperature fluctuations can lead to material degradation. Which one is better at withstanding extreme temperatures?
EPDM performs better in both hot and cold environments. It retains its flexibility and sealing properties from -50°C to +150°C, while PVC loses its strength and flexibility in cold temperatures and becomes soft in heat.
Temperature Resistance Table
| Material | Low Temperature Limit | High Temperature Limit | Common Applications |
|---|---|---|---|
| EPDM | -50°C | +150°C | Automotive, HVAC, roofing |
| PVC | -15°C | +60°C | Indoor pipes, fittings |
Why EPDM Handles Temperature Better
- EPDM retains its flexibility and sealing properties even in extreme hot and cold conditions, making it perfect for automotive and roofing applications.
- PVC becomes rigid and brittle in low temperatures and softens in high heat, limiting its use to indoor environments with controlled temperatures.

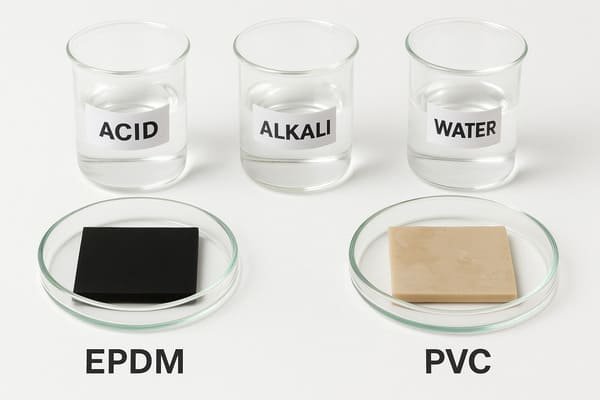

What about chemical resistance?
Exposure to chemicals can cause material breakdown. Which material is more resistant to chemicals?
EPDM offers superior resistance to ozone, UV, and water, but it also stands up to a wide variety of chemicals, including dilute acids and alkalis. PVC is resistant to many chemicals but does not perform as well under prolonged chemical exposure.
Chemical Resistance Comparison
| Material | Chemical Resistance3 | Ideal Uses |
|---|---|---|
| EPDM | Excellent (water, UV, ozone) | Outdoor, automotive, HVAC |
| PVC | Good (acids, oils, bases) | Plumbing, flooring, window profiles |
Why EPDM is Better for Harsh Environments
- EPDM is more suitable for environments exposed to harsh chemicals, UV rays, or ozone.
- PVC is more vulnerable to damage from prolonged chemical exposure, such as in industrial environments.
Which material is more cost-effective?
Budget constraints can make cost a significant factor in material selection. Which material offers the best value?
PVC is generally more cost-effective than EPDM, especially for indoor applications such as pipes, flooring, and window profiles. However, EPDM offers better value for outdoor or high-performance applications where durability and weather resistance are critical.
Cost Comparison Table
| Material | Cost5 | Best Use for Budget-Friendly Options |
|---|---|---|
| EPDM | Moderate | Long-lasting outdoor and automotive parts |
| PVC | Low | Indoor, low-stress applications |
Why EPDM is Better for Harsh Environments
- EPDM is more suitable for environments exposed to harsh chemicals, UV rays, or ozone.
- PVC is more vulnerable to damage from prolonged chemical exposure, such as in industrial environments.
Which material is more cost-effective?
Budget constraints can make cost a significant factor in material selection. Which material offers the best value?
PVC is generally more cost-effective than EPDM, especially for indoor applications such as pipes, flooring, and window profiles. However, EPDM offers better value for outdoor or high-performance applications where durability and weather resistance are critical.
Cost Comparison Table
| Material | Cost | Best Use for Budget-Friendly Options |
|---|---|---|
| EPDM | Moderate | Long-lasting outdoor and automotive parts |
| PVC | Low | Indoor, low-stress applications |
When to Use PVC
- PVC is ideal for applications where cost is a major factor and high durability isn’t critical, such as in plumbing or simple indoor fixtures.
When to Use EPDM
- Use EPDM when long-term durability, outdoor performance, and UV resistance are needed, such as in automotive seals or roofing materials.
Conclusion
EPDM is the better choice for outdoor, high-temperature, and chemical-resistant applications. PVC, on the other hand, is more affordable and works well in indoor environments where UV and temperature resistance are not as critical.
-
