Problems with seal failure can stop an entire system. Wrong O-ring choice means wasted time, money, and customer trust.
Molded O-rings provide higher precision and strength, while spliced O-rings offer flexibility for larger or custom sizes. The better choice depends on application, sealing pressure, and budget.

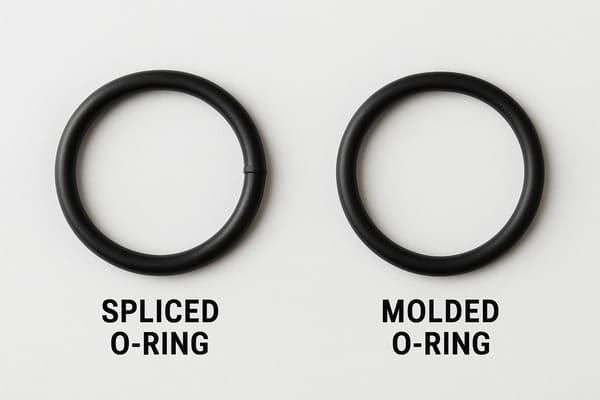

Many buyers confuse molded and spliced O-rings. Both are circular seals, but the way they are made defines performance. I want to explain the difference and guide you in choosing the right one.
What are molded O-rings?
Molded O-rings are produced in dedicated molds under heat and pressure. They are seamless and consistent.
Molded O-rings are seamless seals made in molds. They deliver superior precision, durability, and uniformity for critical sealing applications.

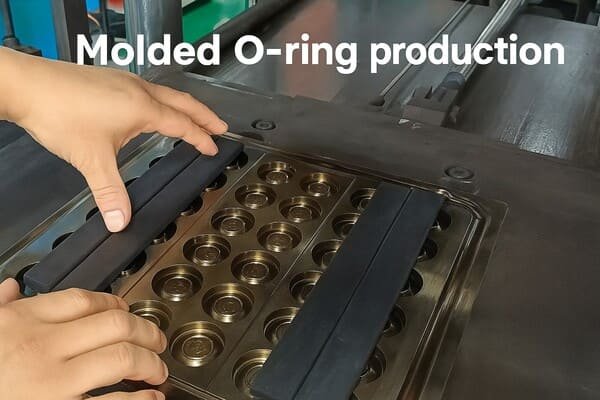

Molded O-rings1 are the industry standard. They are manufactured by compression molding2, transfer molding, or injection molding. The raw rubber compound is shaped in a closed mold cavity. After curing, the O-ring has no joint line. The absence of weak spots gives molded O-rings high pressure3 and chemical resistance4.
I often see molded O-rings specified in automotive, aerospace, and hydraulic systems. These are industries where even a small leak can cause accidents or big financial loss.
Advantages of molded O-rings
- ✅ Seamless structure, no weak joints
- ✅ Precise dimensions and tight tolerances
- ✅ High performance under pressure and chemicals
Limitations
- ❌ Higher tooling cost5
- ❌ Longer lead time for new sizes
- ❌ Less flexible for very large diameters
Performance Table
| Feature | Molded O-rings |
|---|---|
| Strength | Excellent |
| Dimensional accuracy | High |
| Tooling requirement | Mold needed |
| Large size availability | Limited |
| Cost efficiency (small batch) | Low |
What are spliced O-rings?
Spliced O-rings are cut from extruded cord stock and bonded at the joint. They are not seamless but allow flexibility in size.
Spliced O-rings are made by joining ends of extruded cord. They allow custom diameters, fast turnaround, and lower cost for large or special seals.

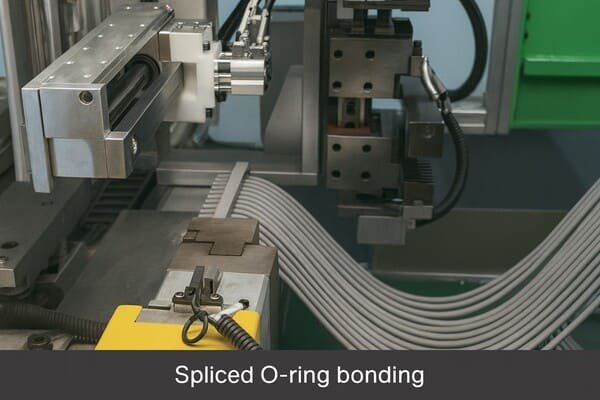

Spliced O-rings start from rubber cord extrusion. The cord is cut to length and the ends are bonded, often with adhesive or heat vulcanization. This method makes them more affordable and practical for non-standard sizes.
I once supplied spliced O-rings6 to a client handling ducting systems with oversized diameters. Tooling a giant mold would be costly, but splicing offered a fast and practical solution.
Advantages of spliced O-rings
- ✅ Quick production without mold investment
- ✅ Cost effective for small runs or large diameters
- ✅ Custom sizes possible
Limitations
- ❌ Weak joint at the splice
- ❌ Not suitable for very high pressure or dynamic sealing
- ❌ Lower consistency compared to molded
Performance Table
| Feature | Spliced O-rings |
|---|---|
| Strength | Moderate (weak at splice) |
| Dimensional accuracy | Medium |
| Tooling requirement | None |
| Large size availability | Excellent |
| Cost efficiency (small batch) | High |
When should I use molded O-rings?
Sometimes both types look the same, but choosing wrong may cause leaks.
Molded O-rings are best for high precision, high pressure, chemical exposure, and critical sealing environments where failure is not acceptable.
I recommend molded O-rings for industries like automotive engines7, hydraulic pumps, compressors, and aerospace. These environments demand high compression set resistance and long durability. Molded O-rings also meet international standards like ISO 3601.
For a buyer, the upfront mold cost may seem high, but in long-term production molded O-rings reduce defects and improve performance reliability. I have seen many clients save money in total project cost by switching from spliced to molded.

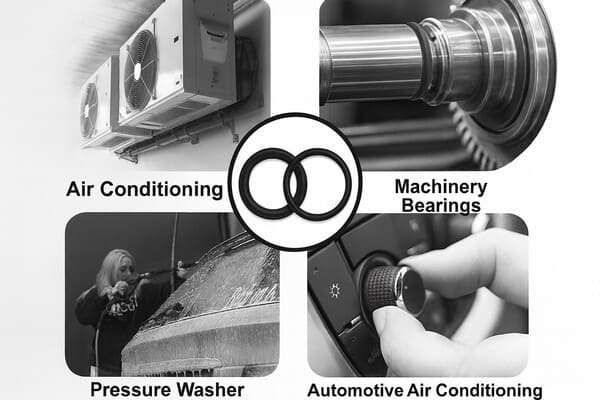

Typical Applications
- Automotive sealing systems8
- Aerospace hydraulic circuits9
- High-pressure pumps and valves10
- Food-grade and medical devices11 (with certified compounds)
When should I use spliced O-rings?
Spliced O-rings are not weak alternatives. They serve their own important role.
Spliced O-rings are suitable for large diameters, static sealing, prototypes, and cases where mold cost is not justified.
I usually recommend spliced O-rings when customers need oversized seals for ducting, filtration systems, or custom machinery. These seals often sit in static positions and do not face extreme pressure. The low-cost flexibility helps procurement officers test designs without investing in expensive molds.
A personal story: A European HVAC project needed quick delivery of large O-rings for duct dampers. Instead of waiting 6 weeks for a mold, we delivered spliced O-rings in 5 days. The system worked perfectly under static sealing conditions.
Typical Applications
- HVAC ducts12s and dampers](https://www.petersenproducts.com/articles/duct-sealing-methods-how-to-seal-ductwork.html)[^12]
- Large filter housings13
- Custom machinery with unique dimensions14
- Low-pressure static sealing15
Application Table
| Industry | Recommended O-ring type |
|---|---|
| Automotive engines | Molded |
| Aerospace hydraulics16 | Molded |
| HVAC ducts12 | Spliced |
| Large filter housing | Spliced |
| Food processing | Molded |
| Custom prototypes | Spliced |
Conclusion
Molded O-rings suit precision and pressure. Spliced O-rings suit flexibility and large sizes. The right choice depends on your project needs.
-
