Choosing the wrong material for your gaskets, tubing, or components can lead to early failure, leaks, or safety issues. Making an informed decision between PVC and silicone is crucial.
PVC is affordable, easy to process, and chemical-resistant, while silicone offers superior heat resistance, flexibility, and long-term durability. Your application determines which material is better.
Understanding the differences between PVC and silicone helps you avoid costly mistakes. Let’s compare their properties, applications, and ideal use cases to see which is best for your project.

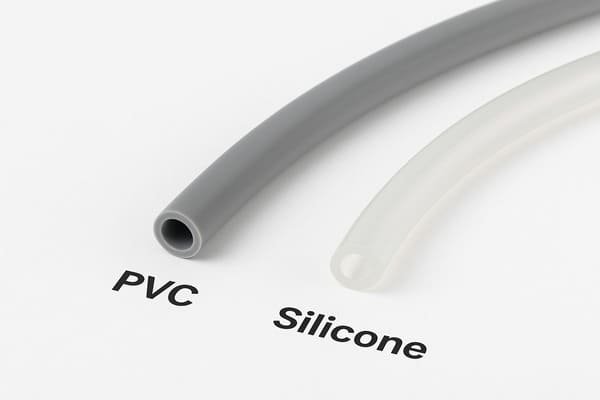

What are the main differences between PVC and silicone?
Confusing PVC with silicone may result in using the wrong product. What makes these materials different in function and performance?
PVC (polyvinyl chloride) is a thermoplastic known for its cost-effectiveness and chemical resistance. Silicone is a flexible elastomer valued for its high temperature stability and softness.
Key Properties Table
| Feature | PVC | Silicone |
|---|---|---|
| Composition | Thermoplastic plastic | Elastomer (rubber-like) |
| Processability | Easy, injection or extrusion | Molding, longer cure time |
| Temp. Resistance | -15°C to +70°C (soft PVC) | -60°C to +230°C |
| Flexibility1 | Good, but stiffens with cold | Very flexible, stays soft |
| Chemical Resistance2 | Excellent for many chemicals | Good, but some solvents may affect |
| UV/Ozone Resistance3 | Poor to moderate | Excellent |
| Cost4 | Low | Higher |
Summary
- PVC is a popular choice for general-purpose tubing, pipes, and budget gaskets.
- Silicone is preferred for high temperature, outdoor, food, or medical applications.

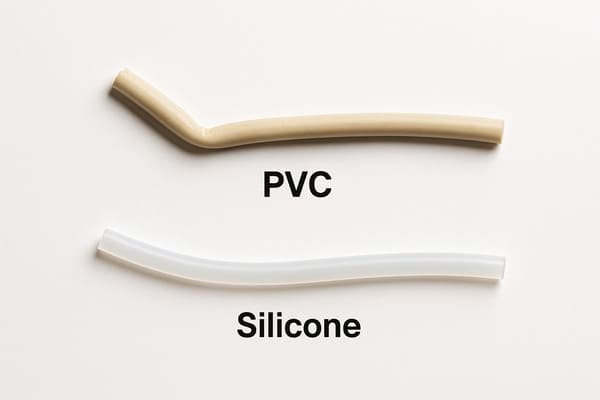

Which material is better for temperature extremes?
Thermal failure can ruin parts or processes. Which material handles heat and cold best?
Silicone withstands much higher and lower temperatures than PVC, keeping its flexibility and sealing performance from -60°C to +230°C.
Temperature Performance Table
| Material | Low Temp. Limit | High Temp. Limit | Suitable Uses |
|---|---|---|---|
| PVC | -15°C | +70°C | Plumbing, basic tubing |
| Silicone | -60°C | +230°C | Ovens, engine, outdoor seals |
Application Example5
For high-temp hoses, bakeware, or freezer gaskets, silicone is clearly the better choice. PVC works well for low-stress, indoor, or room temperature uses.
How do PVC and silicone compare in chemical and UV resistance?
Chemical spills or sun exposure can degrade materials and cause failure. Which resists these hazards better?
PVC is very chemical-resistant for acids and bases, but yellows and hardens in UV. Silicone handles UV, ozone, and weathering much better, but can be affected by strong solvents.
Chemical & UV Resistance Table
| Material | Chemical Resistance2 | UV/Ozone Resistance3 | Typical Failures |
|---|---|---|---|
| PVC | Excellent (acids/bases) | Poor-moderate (yellows) | Hardens/cracks outdoors |
| Silicone | Good (most fluids) | Excellent | Stable, rare failures |
Application Example5
Silicone is ideal for outdoor or sunlight-exposed seals and gaskets. PVC is great for chemical tubing indoors, but not for long-term outdoor use.
What about cost, flexibility, and food/medical safety?
Material choice impacts budget, feel, and compliance. Which is best for your requirements?
PVC is inexpensive and easily shaped. Silicone costs more but remains flexible and safe at extreme temps. Only certain types of PVC are food/medical safe, while many silicone grades are approved for food and medical use.
Cost4 & Safety Comparison Table
| Factor | PVC | Silicone |
|---|---|---|
| Cost4 | Very low | Moderate to high |
| Flexibility1 | Good (room temp), stiff in cold | Excellent, stays soft/flexible |
| Food Safety6 | Only with FDA grade PVC | Many FDA/medical grades |
| Medical Use | Limited | Preferred, biocompatible |
Use Case Example
Use PVC for affordable, non-critical tubing, cable jackets, or pipes. Choose silicone for food processing, medical, or high/low temperature applications.
Which material lasts longer in outdoor or harsh environments?
Replacing failed gaskets or seals can be expensive. Which material holds up better over time?
Silicone outlasts PVC in harsh, outdoor, or high-UV settings. PVC can embrittle and crack over time, while silicone remains soft and reliable for years.
Durability7 Table
| Material | Outdoor Lifespan | Degradation Risks |
|---|---|---|
| PVC | 1-3 years (outdoors) | UV, ozone, hardening |
| Silicone | 10+ years (outdoors) | Few, very stable |
Application Example5
For outdoor window seals, solar, or automotive uses, silicone is the clear winner. PVC is fine for indoor, temporary, or budget-conscious applications.
Conclusion
PVC is affordable and chemically resistant for basic uses. Silicone excels in high temperature, outdoor, and safety-critical applications. Choose based on your project’s demands, budget, and compliance needs.
-
