Which is Better, Viton or PTFE?

Choosing the right material for sealing applications can be tricky, especially when deciding between Viton and PTFE. Both are known for their excellent chemical resistance and high-temperature stability, but which one is better? In this article, we’ll compare Viton and PTFE in terms of their properties, applications, and suitability for specific uses.

Viton and PTFE are both excellent materials with high chemical and temperature resistance. However, their differences make them suited for different industrial applications.

What is Viton?

Viton is a brand name for a type of fluoropolymer elastomer, also known as FKM. It is renowned for its excellent resistance to heat, chemicals, and oils. Viton seals are commonly used in industries such as automotive, aerospace, and chemical processing, where high-performance sealing is required. Viton offers the flexibility and resilience of rubber while being able to withstand extreme conditions.

Viton (FKM) is a highly resilient fluoropolymer elastomer with excellent resistance to heat, chemicals, and oils, often used in demanding industrial applications.

Properties of Viton

• Chemical Resistance: Excellent resistance to oils, fuels, acids, and solvents.
• Temperature Resistance: Can withstand temperatures from -20°C to 250°C (and up to 300°C in certain formulations).
• Flexibility: Flexible at low temperatures, making it suitable for seals and O-rings.
• Applications: Automotive, aerospace, chemical processing, oil and gas industries.

What is PTFE?

PTFE (polytetrafluoroethylene), commonly known as Teflon, is a synthetic polymer known for its non-stick properties, high chemical resistance¹, and low friction. Unlike Viton, PTFE is not an elastomer, meaning it is more rigid and less flexible. However, it is an excellent choice for applications where non-stick properties and resistance to extreme chemicals and temperatures are required.

PTFE is a rigid polymer known for its non-stick properties and exceptional chemical and temperature resistance², used in a variety of industrial applications.

Properties of PTFE

• Chemical Resistance: Unmatched resistance to almost all chemicals, including acids, bases, and solvents.
• Temperature Resistance: Performs well at temperatures ranging from -200°C to 260°C.
• Flexibility: Less flexible than Viton, making it more suitable for rigid seals, gaskets, and coatings.
• Applications: Non-stick coatings, electrical insulation, gaskets, bearings, and seals in extreme environments.

Which is Better for High-Temperature Applications?

Both Viton and PTFE excel in high-temperature applications, but they are suitable for different temperature ranges.

Viton can withstand temperatures up to 250°C (300°C in some specialized formulations), which makes it ideal for sealing applications in automotive engines, aerospace, and chemical processing. However, PTFE can handle temperatures as low as -200°C and as high as 260°C, giving it an edge in applications where extreme temperature fluctuations occur.

For high-temperature applications, PTFE has a broader range, able to handle both extremely high and low temperatures, while Viton is best suited for temperatures up to 250°C.

Temperature Resistance Comparison

Material	Temperature Range
Viton	-20°C to 250°C (300°C for certain grades)
PTFE	-200°C to 260°C

Which Material Has Better Chemical Resistance?

Both materials offer excellent chemical resistance, but their resistance to different substances varies.

• Viton is particularly resistant to oils, fuels, and solvents, making it ideal for automotive, aerospace, and industrial applications where exposure to fuels and chemicals is common.
• PTFE, on the other hand, is virtually inert to most chemicals, including acids, bases, and solvents, making it ideal for extreme environments such as chemical processing or where contact with harsh chemicals is a concern.

PTFE has superior resistance to nearly all chemicals, including acids and bases, while Viton is better for oils and fuels.

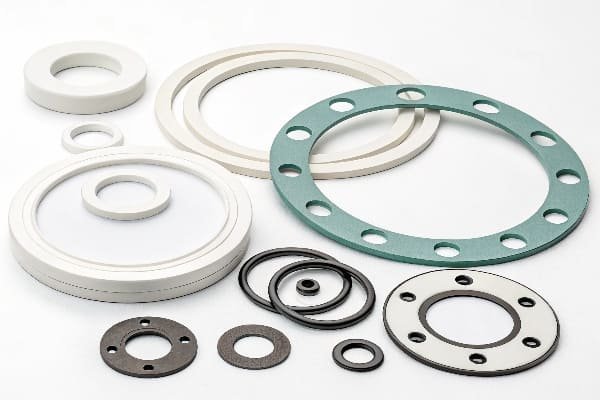

Which is Better for Seals and Gaskets?

Viton’s flexibility makes it a better choice for sealing applications. It can form tight seals in areas that need to flex or compress. It's commonly used for O-rings, gaskets, and other seals in high-stress environments.

PTFE, being rigid, is better for applications where flexibility is not required. It is often used in gaskets and seals where chemical resistance is more critical than the ability to flex or compress.

Viton is better for seals and gaskets³ that need flexibility, while PTFE is better for rigid sealing applications in chemical-resistant environments.

Viton vs PTFE for Seals and Gaskets

Material	Flexibility	Best Use
Viton	Flexible	O-rings, automotive, aerospace, industrial seals
PTFE	Rigid	Chemical processing, gaskets, non-stick coatings

What Are the Disadvantages of Viton?

While Viton has many advantages, it does have a few drawbacks:

• Cost: Viton is more expensive than many other elastomers, which may make it less cost-effective for certain applications.
• Less resistant to water: Viton, while excellent for oils and chemicals, is less effective in water environments compared to other materials like EPDM.

Viton’s drawbacks include its higher cost and lower performance in water-based environments compared to materials like EPDM.

What Are the Disadvantages of PTFE?

Although PTFE is incredibly resistant to chemicals and temperatures, it has its own limitations:

• Rigidity: PTFE is more rigid and less flexible than Viton, which can make it unsuitable for some sealing applications.
• Lower wear resistance: PTFE can wear more easily under certain conditions, especially when exposed to friction or pressure.

PTFE’s main drawbacks include its rigidity and lower wear resistance compared to other elastomers like Viton.

Conclusion

Both Viton and PTFE have their strengths, and which one is better depends on your specific application. Viton is excellent for flexible seals that need to resist oils and fuels, while PTFE is ideal for extreme chemical resistance and non-stick applications. Consider your specific needs—temperature, chemical exposure, flexibility, and wear resistance—when deciding which material to choose.
