Which Material Is Better for High Temperature Seals?

A high temperature seal can look perfect on day one, then leak after heat aging. I have seen this happen when buyers pick a “high temp” rubber without checking the real heat and media.

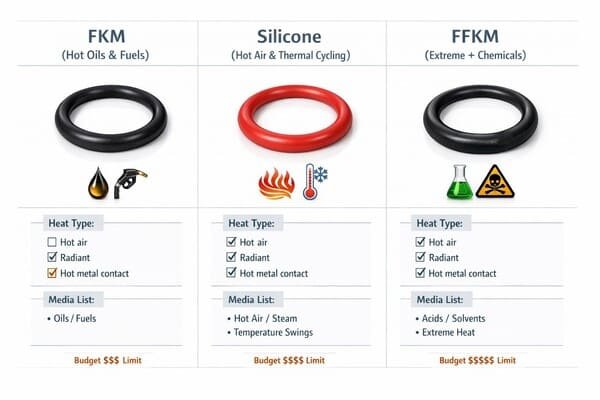

The best material for high temperature seals depends on the heat type and the fluid. FKM is often best for hot oils and fuels, silicone is often best for hot air and wide temperature swings, and FFKM is best for extreme heat plus aggressive chemicals when budget allows.

I always treat “high temperature” as a system question. I check the heat source, the continuous temperature, the peak temperature, and the media. I also check if the seal is static or dynamic. Those details decide the shortlist fast.

Is FKM the Best Choice for High Temperature Seals in Oil and Fuel?

Many buyers select silicone for heat, then the seal swells in oil and leaks. That mistake is expensive and avoidable.

FKM is often the best elastomer for high temperature seals in hot oils, fuels, and many chemicals. It usually holds sealing force better than silicone in oily service, but it costs more than NBR and can feel stiff at low temperature.

I use FKM when the real enemy is heat plus hydrocarbons. Many “high temperature” failures are not only heat. They are heat plus oil additives, fuel blends, and vapor exposure. I also see failures from hot oil mist in the air. The part looks “dry,” yet the rubber still absorbs oils over time.

Why FKM performs well in hot hydrocarbons

FKM stays stable when oils and fuels attack many other elastomers. That stability reduces swelling and softening. It also helps compression set¹ in many hot oil conditions.

✅ I usually consider FKM when:

• ✅ The seal sees hot oil splash, oil immersion, or oil vapor.
• ✅ The seal sees gasoline², diesel, or fuel blends.
• ✅ The seal sits near engines, compressors, or gearboxes.
• ✅ The project needs longer service life at elevated temperature.

Where FKM is not the answer

FKM³ is not a universal “best.” I still check service details.

⚠️ I watch out when:

• ⚠️ The seal must stay very flexible at low temperature start-up.
• ⚠️ The seal must handle hot water or steam as the main media.
• ⚠️ The buyer needs the lowest cost option for moderate heat.

A simple selection table I use for hot oil⁴ projects

I once handled a sealing project where a buyer asked for “high temp silicone.” The seal sat close to a motor. The air was hot. The part also saw lubricant during maintenance. The silicone softened after repeated exposure. The seal started to weep. When we switched to an FKM compound and we adjusted hardness, the leakage stopped. I will replace this story later, yet the failure pattern is common.

Is Silicone Better for High Temperature Seals in Hot Air and Wide Temperature Swings?

Many buyers choose FKM for every hot job, then they complain about stiffness and installation damage. That also happens when the heat is hot air, not oil.

Silicone is often better for high temperature seals in hot air, dry heat, and wide temperature swings. Silicone stays flexible in cold conditions, and it handles UV and ozone well, but it is usually not the best choice for fuels and many oils.

I use silicone⁵ when the seal lives in air and heat cycles. I also use it when I expect ozone and UV exposure⁶. Many outdoor high temperature seals are not only hot. They also see sun, weather, and cold nights. Silicone handles that swing well.

What silicone does well in heat sealing

Silicone keeps flexibility in both heat and cold. That helps installation and long-term contact in static seals when the joint moves slightly from thermal expansion.

✅ I usually consider silicone when:

• ✅ The seal is in hot air, ovens, heaters, ducts, or enclosures.
• ✅ The seal sees ozone, UV, or outdoor weather.
• ✅ The seal must stay flexible during cold starts.
• ✅ Odor control and clean handling matter.

What silicone struggles with

Silicone often loses in hydrocarbon exposure⁷. Silicone can also tear more easily if the geometry is sharp.

⚠️ I watch out when:

• ⚠️ The part sees fuels, oils, or greasy assembly conditions.
• ⚠️ The part has thin lips or sharp corners.
• ⚠️ The seal is dynamic with abrasion and friction.

Silicone vs FKM in high temperature sealing⁸

This comparison helps procurement teams avoid “one-material” mistakes.

🛠️ My design note: if the buyer wants silicone, I often ask for a larger radius on corners and a thicker lip. That small change prevents tearing during assembly.

Is FFKM the Best Material for Extreme Heat and Chemicals?

Some high temperature seals fail even when the rubber is “heat rated.” That often happens when the seal meets aggressive chemicals at high temperature.

FFKM is often the best choice when the seal must survive extreme heat and aggressive chemicals at the same time. FFKM is usually the highest-cost elastomer option, so I use it when the failure cost is higher than the material cost.

I treat FFKM⁹ as a risk-control material. I do not treat it as a default. I also do not treat “FFKM” as one grade. Different grades target different fluids and heat profiles. This is where buyers can waste money if they do not match grade to media.

When I put FFKM on the shortlist

✅ I consider FFKM when:

• ✅ The temperature is very high and continuous.
• ✅ The media includes aggressive chemicals, solvents, or mixed fluids.
• ✅ The seal replacement cost is high due to downtime.
• ✅ The seal sits in a critical safety or process position.

Where I try to avoid FFKM

⚠️ I try to avoid FFKM when:

• ⚠️ The service is only hot air or only hot oil with no aggressive chemistry.
• ⚠️ The seal is not critical, and replacement is easy.
• ⚠️ The buyer does not have stable specs and may change the fluid later.

A decision table for “extreme” conditions

🛠️ My purchasing tip: I ask for the exact chemical names, not a generic label like “solvent.” I also ask for concentration and temperature. FFKM decisions fail when the media list is vague.

Is EPDM Better for Steam and Hot Water High Temperature Seals?

Many buyers push FKM for all heat. Steam systems punish that habit. Water and steam behave differently from oils.

EPDM is often better for steam and hot water sealing, especially in HVAC and water systems, because EPDM handles water-based media and weathering well. EPDM is usually a poor choice when oils and fuels are present.

I see steam and hot water seals in HVAC, pumps, valves, and heat exchangers. I also see many sealing points that sit close to hot metal surfaces. EPDM¹⁰ can be a strong fit when the media is water-based and the design is correct.

Why steam and hot water change the rules

Steam is not only temperature. Steam is also pressure, oxygen, and water chemistry. A rubber that is great in hot oil can behave badly in steam. I also see failures caused by cleaning chemicals and additives in water systems.

✅ I consider EPDM when:

• ✅ The main media is hot water, steam, or glycol-water mixes.
• ✅ The seal sits in HVAC ducting, dampers, or water circuits.
• ✅ Outdoor exposure and ozone matter.

⚠️ I avoid EPDM when:

• ⚠️ The system has oil contamination risk.
• ⚠️ The seal sees fuel, grease, or hydrocarbon vapor.

EPDM vs silicone vs FKM for high temperature sealing

I once reviewed a gasket spec for a hot water system. The buyer asked for “high temp rubber.” The system also used a cleaning fluid during maintenance. The gasket swelled and lost squeeze. The buyer blamed heat. The real issue was media mismatch. When we rewrote the media list and we matched the rubber to the real fluids, the failure stopped. I will replace this story later, yet the lesson stays the same.

What Tests and Data Should I Request for High Temperature Seals?

Many reports show only hardness and tensile strength. That does not predict hot sealing life. High temperature sealing is a compression set story.

For high temperature seals, I request compression set at the service temperature, aging tests, hardness change, and media soak tests when fluids exist. I also request traceability so I can link results to each batch.

I use tests to reduce disagreement. I also use tests to prevent “paper compliance” that fails in service. A seal needs sealing force over time. That means compression set and thermal aging data must match the real service conditions.

The minimum test set I rely on

✅ I typically ask for:

• ✅ Hardness (Shore A) with tolerance
• ✅ Compression set at a temperature close to service temperature¹¹
• ✅ Heat aging with hardness change¹² and tensile change
• ✅ Media soak when oil, fuel, or chemicals exist
• ✅ Dimensional inspection tied to a tolerance class

Why compression set decides hot sealing life

A seal can be strong and still leak. Strength does not keep sealing force. Compression set tracks how much the rubber fails to recover after squeeze. Heat makes compression set worse in many rubbers. When the seal loses rebound, micro gaps open.

🛠️ I also check:

• Squeeze percentage and groove fill
• Surface finish and flange flatness
• Bolt load and clamp stability
• Thermal cycling frequency

A buyer-friendly data checklist table

How I decide between FKM, silicone, EPDM, and FFKM in one page

This table is my fast decision tool for high temperature seals.

Conclusion

I choose high temperature seal materials by heat type and media. FKM fits hot oils and fuels, silicone fits hot air and temp swings, EPDM fits steam and hot water, and FFKM fits extreme heat plus aggressive chemicals.
