Many buyers treat injection molding as a universal answer. That shortcut often causes scorch, bubbles, scrap, and unstable dimensions when the compound was never built for this process.
Most thermoset rubbers can be injection molded if the compound has stable flow, enough scorch safety, and cure behavior that matches mold temperature and cycle time. EPDM, NBR, HNBR, FKM, and silicone are common winners when the formulation is injection-ready.

Compatibility is not a brand name or a polymer name. Compatibility is proven when the compound fills the cavity, vents air, and cures evenly without pre-curing in the injection unit. A compound that looks fine in compression molding can still fail in injection molding because the shear, residence time, and runner system are different.
Which Polymer Families Are Commonly Injection Molded for Rubber Parts?
Many procurement teams ask for a short list of “safe” rubbers. A list helps, but the reason behind the list matters more, because the same polymer family can hide very different formulations.
EPDM, NBR, HNBR, FKM, and silicone are commonly injection molded because they offer mature compounding options, predictable cure systems, and stable supply for industrial production. Other families can also run well when the compound is tuned for injection flow and scorch safety.

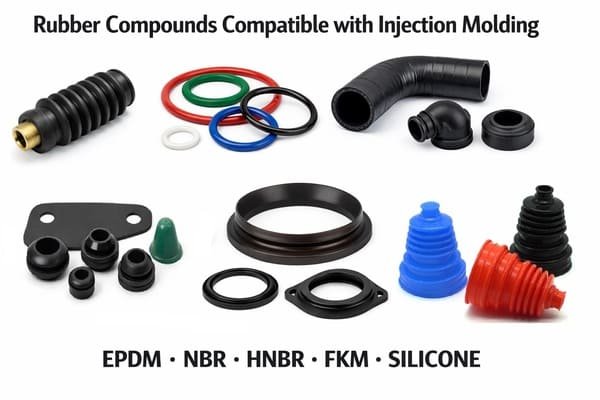

Common injection-molded rubber families in production
These families show up often because they cover most industrial media and temperature needs.
✅ Common thermoset rubber families that are often injection molded:
- ✅ EPDM1 (water, glycol, ozone, outdoor sealing, HVAC)
- ✅ NBR2 (mineral oils, many fuels, general oil sealing)
- ✅ HNBR3 (higher heat, longer life in oils and harsh service)
- ✅ FKM4 (hot oils, fuels, many chemicals at heat)
- ✅ VMQ silicone5 (heat, cold flexibility, low odor options)
- ✅ FVMQ6 (silicone with improved fuel and oil resistance)
- ✅ CR / neoprene7 (balanced weather + moderate oil)
- ✅ ACM / AEM8 (hot oils in automotive service, compound-dependent)
- ✅ NR / SBR blends9 (dynamic parts in moderate environments, when aging demands are not extreme)
Silicone needs one extra note. Solid silicone compounds can be injection molded like other thermoset rubbers. LSR uses a different injection method and tooling style. It is still injection molding, but the process controls and risks differ.
“Compatible” does not mean “easy”
A polymer name is only the start. Some EPDM compounds run smoothly in compression molding yet struggle in injection molding because the flow package and scorch window are not tuned. The opposite also happens.
| Rubber family | Why it is often compatible with injection molding | Key sensitivity to watch | Common use environment |
|---|---|---|---|
| EPDM | Predictable cure options and stable supply | Cure balance on thick-to-thin areas | HVAC seals, outdoor gaskets |
| NBR | Wide compounding range and good oil resistance | Scorch safety and knit-line zones | Oil gaskets, sealing rings |
| HNBR | Strong retention at heat and oils | Shrink control and cure stability | Long-life oil service |
| FKM | Strong chemical resistance at heat | Release behavior and high scrap cost | Hot oil, fuel vapor, chemicals |
| VMQ silicone | Often fills well and stays flexible in cold | Volatiles and clean handling | Heat + low-temp sealing |
| CR | Balanced properties and mature supply | Aging and compression set tradeoffs | General industrial seals |
A practical lesson came from an EPDM gasket project. A “standard” EPDM filled fine in compression molding. In injection molding, random short shots appeared at corners. The mold was not the first fix. The compound flow package and scorch margin were adjusted, and the fill became stable. That experience made the evaluation more disciplined.
What Compound Properties Decide Injection-Molding Compatibility?
A yes-or-no answer is rarely honest without data. Compatibility is decided by behavior: how the compound flows, how soon it starts curing, and how it finishes curing in the cavity.
A rubber compound is injection-molding compatible when it shows controlled viscosity, adequate scorch safety for expected residence time, and cure kinetics that reach full crosslinking within the planned cycle without trapping gas or creating weak flow-front seams.

Flow behavior matters more than the polymer name
Injection molding pushes rubber through runners and gates. That means flow must be predictable under shear. These checks keep decisions grounded:
- The compound must fill thin ribs without tearing.
- The compound must not “freeze” early along the flow path.
- The compound must vent air at the end of fill.
- The compound must release cleanly after cure.
High filler loading and high durometer often reduce flow. That does not automatically block injection molding. It raises sensitivity. It also increases the need for correct gate size, vent design, and a safer scorch window.
Scorch safety is a common hidden deal-breaker
Injection molding introduces residence time inside the injection unit. If the compound starts curing too early, scorch can occur in the barrel, runners, or nozzle. Production stops make this worse.
A compound can be called “compatible” only when it survives normal stops and restarts without burn marks or blocked flow paths. That is why scorch margin must match the real residence time, not an ideal lab condition.
Cure balance must match part thickness
A compound can fill perfectly and still fail if cure is uneven. Thick-to-thin transitions create different heat histories. Uneven cure can cause shrink variation, internal stress, or weak sealing zones.
| Property area | What “compatible” looks like | What usually goes wrong | Typical first adjustment |
|---|---|---|---|
| Viscosity / flow | Stable fill across cavities and shifts | Short shots, weak feature fill | Compound flow package, gate sizing |
| Scorch safety | No pre-cure during normal stops | Burn marks, blocked runners | Cure system balance, temperature profile |
| Cure kinetics | Full cure at planned cycle time | Under-cure, tack, property drift | Cure time, mold temperature |
| Gas behavior | Minimal blisters and porosity | Bubbles, micro-leaks | Venting, vacuum option, volatile control |
| Release | Clean demold with stable surface | Tearing, surface defects | Mold finish, release system |
A screening checklist keeps decisions consistent
This checklist reduces debate and speeds approval.
✅ A practical compatibility screen for injection molding:
- ✅ The compound shows stable batch-to-batch viscosity.
- ✅ The scorch window supports expected residence time and line stops.
- ✅ The cure reaches target properties within planned cycle time.
- ✅ The compound does not outgas heavily at mold temperature.
- ✅ A post-cure plan exists when the application needs it.
- ✅ The part design supports venting10 at flow ends and corners.
This approach stays first-person because it reflects how work is done on real programs, yet it avoids repeating “I” in every sentence.
Which Rubber Compounds Are Compatible, but Only With Special Controls?
Many compounds are technically compatible. Some are still difficult to run. That difference matters because instability creates scrap, delivery risk, and inconsistent sealing in the field.

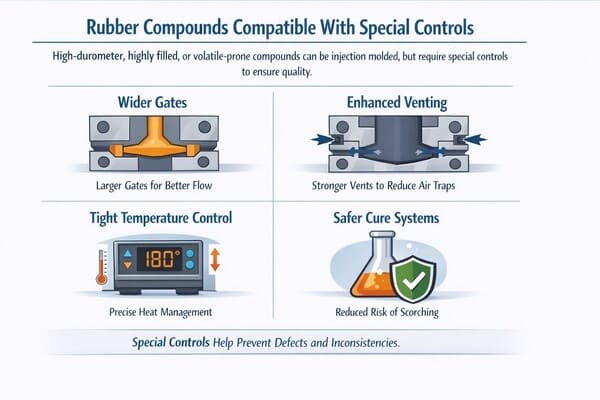

High-durometer, highly filled, or volatile-prone compounds can be injection molded, but they often need wider gates, stronger venting, tighter temperature control, and a safer cure system to avoid scorch, air traps, and surface defects.

High-durometer compounds need breathing room
When hardness reaches 80–95 Shore A, flow resistance rises. Air is trapped more easily at the end of fill. This is manageable, but the mold and process must be designed for it.
✅ Typical controls used for high-durometer injection molding:
- ✅ Wider gates to reduce pressure loss
- ✅ Shorter flow length where possible
- ✅ Strong venting at flow ends and corners
- ✅ Conservative injection speed to reduce trapped air
- ✅ Stable mold temperature mapping across cavities
Highly filled compounds need balanced shear and venting
Filled compounds deliver stiffness, wear resistance, or cost control. They also raise viscosity and shear heating. Shear heating can reduce scorch margin and increase surface defects.
In practice, stability improves when runner balance is correct, injection profile is conservative, and vents are clean and consistent.
Volatile-prone compounds need gas management
Some compounds release volatiles during cure. This can create bubbles, blisters, or micro-porosity. This risk is higher when the mold is hot, the part is thick, or the compound includes additives that volatilize under cure heat.
| “Harder” compound type | Why it can still be compatible | Why it becomes sensitive | Control that often works best |
|---|---|---|---|
| High durometer (80–95A) | It can fill with correct gates and pressure | Air traps and short shots increase | Gate sizing + venting at flow ends |
| Highly filled | It can mold stable parts at scale | Viscosity and shear heat rise | Conservative speed + thermal stability |
| Narrow scorch window | It can run fast when tuned | Stops cause scorch and blockage | Cure balance + purge discipline |
| Volatile-prone | It can mold smooth surfaces | Bubbles and blisters appear | Vacuum assist + vent layout |
| High tear-demand designs | It can meet strength targets | Knit lines weaken tear zones | Gate location + flow-front planning |
A real example involved an NBR seal that looked perfect visually. A hidden knit line sat in a high-stress zone, and early tearing showed up in pull testing. The compound was compatible, but the flow-front seam was placed in the wrong location. Gate layout and compound tuning improved knit-line strength. Compatibility must include seam performance, not only fill success.
How to Validate Injection-Molding Compatibility Before Mass Production?
Buyers often want a decision on day one. A short validation plan11 is faster than a long argument. It also protects delivery and quality when the project moves to volume.
Compatibility is validated by a short molding trial, defect mapping, and property checks that match application risk, then repeatability checks across cavities and at least two material batches. Stop-and-restart behavior must also be proven.

Separate “fills the cavity” from “meets performance”
A compound can fill the cavity and still fail compression set12, sealing stability13, or aging14. Validation is run in layers:
1) Fill reliability without major defects
2) Property targets for the application
3) Repeatability across cavities and batches
Keep evidence procurement-friendly
Clear evidence helps buyers file decisions and defend them internally. These items tend to be the most useful in a purchasing workflow.
| Validation step | What is checked | What it proves | What gets recorded |
|---|---|---|---|
| Short-shot study | Fill pattern and air trap zones | Venting and gate logic | Photos + shot conditions |
| Defect map | Blisters, flash zones, short shots | Process sensitivity | Location chart per cavity |
| Basic physical checks | Hardness15, appearance, key dimensions | Quick drift detection | Lot and cavity trace |
| Performance checks | Compression set, tensile trend, tear trend | Fitness for sealing duty | Test report summary |
| Repeatability check | Cavity-to-cavity and batch-to-batch | Supply stability | Trend table with limits |
Include stop-and-restart reality testing
Production includes stops. That is where scorch risk becomes visible. A controlled stop is simulated to confirm the compound survives realistic residence time.
✅ Targets after stop-and-restart:
- ✅ No scorch marks on parts
- ✅ No blocked runner sections
- ✅ No sudden increase in flash
- ✅ No jump in short-shot frequency
A quick “go / caution / no-go” decision table
This table helps finalize the decision without vague language.
| Result | What it usually means | Typical next action |
|---|---|---|
| Go | Fill is stable, defects are minor, properties meet targets | Lock process window and plan ramp-up |
| Caution | Fill is stable but sensitivity is high | Adjust compound or mold vents before volume |
| No-go | Scorch, trapped air, or unstable fill persists | Redesign compound and/or switch process |
This validation method keeps first-person responsibility clear while keeping the writing neutral and practical. It also reduces the need to repeat “I” in every sentence.
Conclusion
A rubber compound is injection-molding compatible when flow, scorch safety, cure balance, and gas control are proven under real production conditions. EPDM, NBR, HNBR, FKM, and silicone often work well, but validation always decides.
-
