Seal failure in moving equipment often starts with twisting, rolling, or uneven wear. A small change in cross-section can solve these issues.
D-rings have a flat base that sits firmly in the groove, which prevents twisting and rolling during motion. This stability reduces friction, improves sealing consistency, and extends seal life compared with O-rings.
I use D-rings when I want the simplicity of an O-ring but better stability in dynamic service, especially where precise motion and low wear are important.
How does a D-ring design improve stability?
O-rings can roll or twist in their grooves during reciprocating or rotary motion. This can lead to spiral failure, leaks, and early wear.

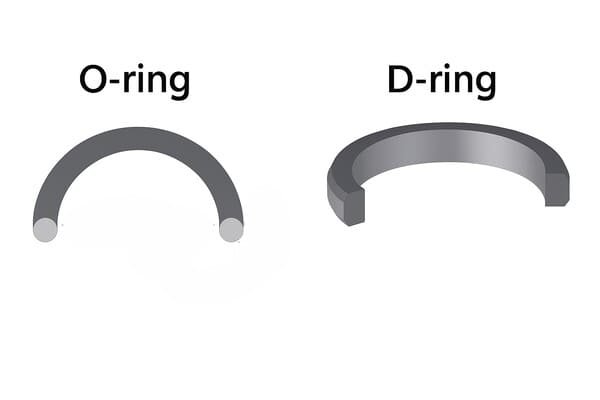

A D-ring has one flat side that sits on the groove floor, preventing rolling. The curved sealing face maintains contact with the mating surface while the flat base holds position.
Why the flat base matters
- Stops rolling under side-load or pressure pulses.
- Keeps the sealing face1 aligned with the mating surface.
- Reduces stress concentration at points of contact.
- Distributes compression evenly across the seal width.
| Feature | D-Ring2 | O-Ring3 |
|---|---|---|
| Base shape | Flat | Round |
| Twist/roll resistance | High | Low |
| Lubricant retention | Moderate | Low |
| Breakaway friction | Lower | Higher (when rolled) |
| Best use | Dynamic seals with alignment needs | General static and dynamic sealing |
✅ The flat base gives predictable sealing behavior even after long service.
🛠️ This design also simplifies installation because the seal seats naturally.
Where do D-rings outperform O-rings?
I do not replace O-rings everywhere, but in some situations D-rings are a clear upgrade.
D-rings are better in dynamic sealing where stability is critical, especially in pneumatic and hydraulic rods, pistons, and rotary shafts.
Ideal uses for D-rings
- Pneumatic rod seals: smoother motion, no stick–slip.
- Hydraulic piston seals4: stable under pressure cycling.
- Rotary sealing5: reduced twisting under rotation.
- High-vibration joints6: better position retention.
- Side-loaded hardware: stays seated without rolling.
| Condition | O-Ring Problem | D-Ring Advantage |
|---|---|---|
| Reciprocating motion | Spiral failure | Flat base resists twist |
| Rotary motion | Rolling in groove | Stable in position |
| High vibration | Movement in gland | Secure seating |
| Side-load | Uneven wear | Even compression |
✅ In my projects, switching from O-rings to D-rings in pneumatic cylinders has cut seal-related downtime by over 20%.
🛠️ The upgrade often requires no groove change.
Do D-rings reduce friction compared to O-rings?
Yes. Stability reduces contact stress spikes and prevents edge digging, both of which lower friction.
Because D-rings stay aligned, they maintain a controlled contact area and avoid the high drag caused by twisted O-rings. This lowers breakaway force and keeps motion smooth.
Friction comparison factors7
| Factor | O-Ring | D-Ring |
|---|---|---|
| Contact area stability | Variable | Stable |
| Breakaway force | Higher (with twist) | Lower |
| Lubrication retention | Low | Moderate |
| Wear pattern | Uneven | Even |
✅ Less friction means less heat and longer service life.
🛠️ In air cylinders, this can also improve positioning accuracy.
Material choices for D-rings8
D-rings use the same compounds as O-rings, so I select based on media and temperature.
| Material | Shore A9 | Temperature (°C) | Strengths | Limits |
|---|---|---|---|---|
| NBR10 | 60–80 | −30 to +100 | Oil-resistant, cost-effective | Ozone aging |
| HNBR | 70–85 | −30 to +140 | Heat/ozone resistance | Higher cost |
| EPDM11 | 60–80 | −40 to +130 | Steam, water, ozone | Swells in oil |
| VMQ12 | 50–70 | −60 to +200 | Low μ, cold flexibility | Poor abrasion resistance |
| FKM13 | 70–80 | −20 to +200 | Chemical and heat resistance | Poor low-temp elasticity |
| PU14 | 85–95 | −30 to +110 | High wear resistance | Not for hot water/steam |
✅ I choose softer grades for low-pressure pneumatics and harder grades for hydraulic or high-load applications.
🛠️ Durometer affects both sealing force and extrusion resistance.
Conclusion
D-rings outperform O-rings in dynamic sealing because their flat base prevents twisting and rolling, reducing friction and extending seal life.
-
