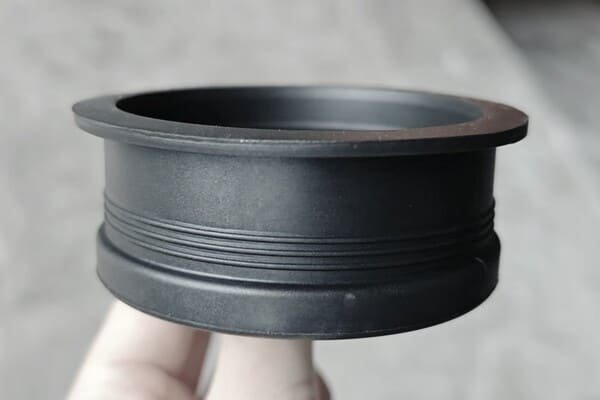

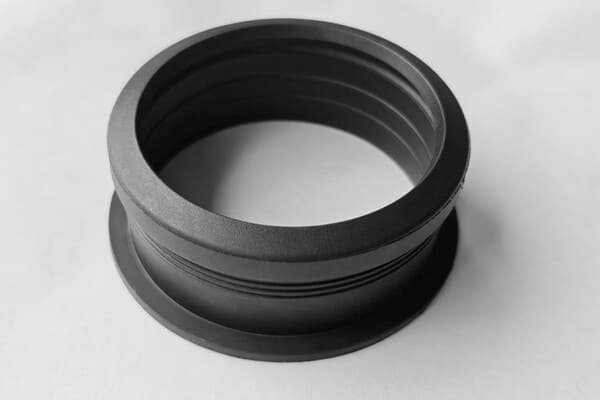

HF01 Rubber Air Filter Outlet Sleeve – ACM Material
Technical Specifications
| Parameter | Value |
|---|---|
| Product Code | CCYD-JC-1294-1 / HF01 |
| Application | Hongqi (FAW) Air Filter Outlet Sleeve |
| Material | ACM (Acrylic Rubber) |
| Inner Diameter (Sealing End) | Ø59 ± 0.3 mm |
| Outer Diameter (Mounting End) | Ø75 ± 0.3 mm |
| Other Diameters (Key Points) | Ø68.7 mm / Ø63.9 mm / Ø56.4 mm |
| Total Height | 28.2 mm |
| Flange Thickness | 2.4 mm |
| Marking | >ACM< |
| Tolerance Class | JF01-1100, Grade A |
| Working Temp. Range | -30°C to +150°C (short-term +180°C) |
Key Features
- OEM-grade ACM rubber (JF01-1017 compliant)
- Excellent resistance to oil vapor, ozone, and high engine bay temperatures
- Stepped inner geometry ensures tight fit and air seal

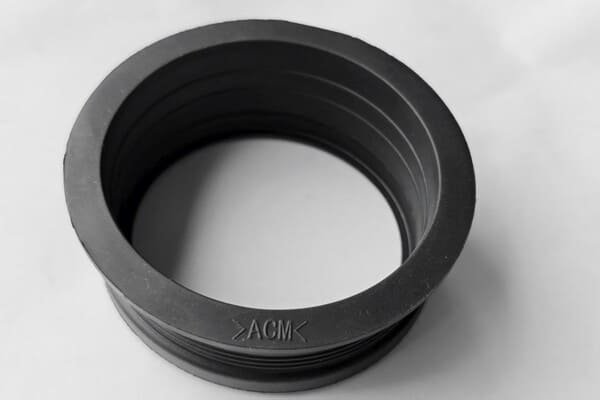

- Material identification embossed with >ACM< on flange
- Clean, dust-free molding suitable for direct assembly
Applications
- Air intake outlet coupling for passenger vehicles
- OEM rubber connector between air filter and throttle body
- Diesel engine or turbocharger inlet sealing
- Engine bay air duct vibration isolation
Compliance & Quality
- Material and tolerances fully traceable
- Dimensional tolerance per JF01-1100 Table 1, Grade A
- Clean-packaged for OEM assembly lines
- Clear embossed material marking: >ACM<
Packaging & Delivery
- MOQ: 1,000 pcs
- Lead Time: 15–20 working days
- Packaging: PE bag + Carton (custom label optional)
- Sample: 3–7 days with mold code reference
Customization Options
- Material: ACM / EPDM / Silicone / NBR
- Shape: Straight, stepped, or elbow
- Hardness: 40–70 Shore A
- Color: Black, grey, or custom
- Branding: Embossed or ink-printed logo available
