Description

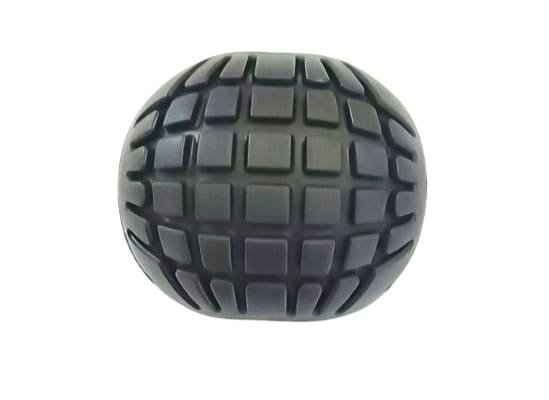

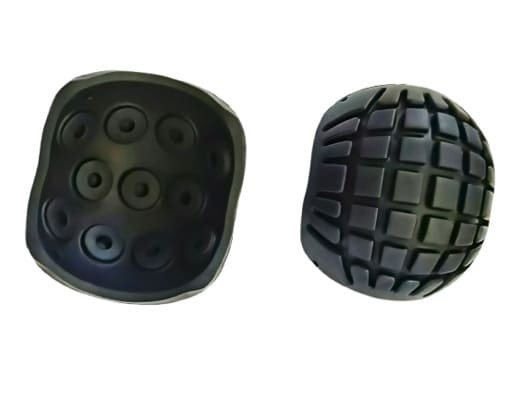

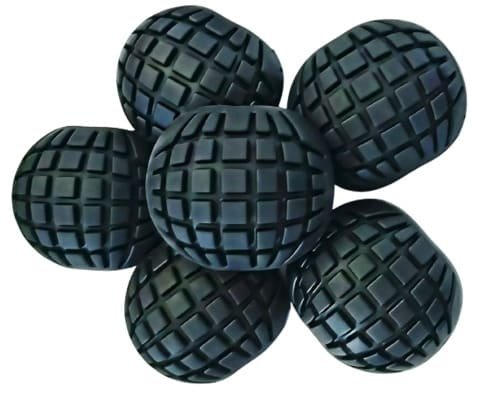

SBR Foot Pads for Quadruped Robots (BP Series)
Product Overview
Our BP Series SBR foot pad is meticulously engineered for quadruped robots, providing an optimal combination of ground adaptability, slip resistance, and structural durability. The pad’s surface features an innovative anti-slip grid pattern, ensuring outstanding grip on a variety of terrains while offering exceptional shock absorption and impact resistance.
Key Performance
- Precision Dimensions:
- Width: 67 mm
- Height: 76.6 mm
- Depth: 35.9 mm
- Material: High-performance SBR (Styrene-Butadiene Rubber), offering enhanced abrasion resistance, weather stability, and elasticity.
- Anti-Slip Grid Design: The unique tread pattern maximizes friction and minimizes slippage, even in outdoor or wet environments.
- Shock Absorption: Superior cushioning effect reduces vibration and mechanical impact, protecting robot mechanisms and sensors.
- Wear & Aging Resistance: Withstands thousands of cycles of movement and deformation, maintaining structural integrity over time.
Unique Advantages
- Customizable for Any Robot Model: Available for OEM/ODM with flexible size, hardness, and mounting options.
- Lightweight Structure: Reduces overall robot weight, improving energy efficiency and agility.
- Long Service Life: Designed for continuous, high-frequency operations in robotics, automation, and research.
- Quick Prototyping: Advanced mold manufacturing and rapid sampling support fast development cycles.
| Parameter | Value |
|---|---|
| Material | SBR Rubber |
| Hardness (Shore A) | 70 ± 5 |
| Width | 76.6 mm |
| Height | 67 mm |
| Depth | 35.9 mm |
| Surface Pattern | Anti-slip grid |
| Working Temperature | -30°C to +80°C |
| Tensile Strength | ≥8 MPa |
| Elongation at Break | ≥300% |
| Abrasion (DIN 53516) | ≤200 mm³ |
| Color | Black (custom colors available) |
| Custom Logo | Available |
Application Fields
- Robotics: Quadruped robots, six-legged robots, bionic research robots
- Industrial Automation: AGV, inspection robots, material handling droids
- Education & STEM: Engineering labs, robotics competitions, prototype development
- Specialty: Rescue robots, outdoor mobile platforms, all-terrain vehicles
Why Choose Our BP Series SBR Robot Foot Pads?
With nearly 30 years of expertise in rubber product innovation and custom mold design, our team delivers foot pad solutions that meet global robotics industry standards. From small batch prototyping to mass production, we ensure stable quality, competitive pricing, and responsive service. Work with us for your next generation of robotic foot end development!
