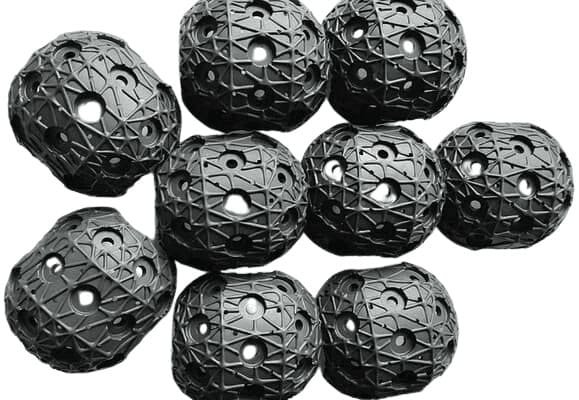

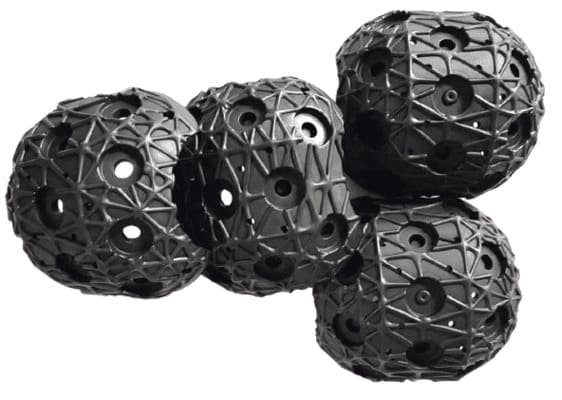

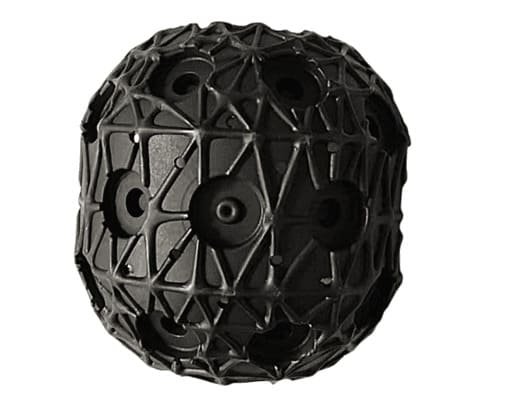

SBR Robot Foot Sole Pad (Reinforced Structure) for Quadruped Robots
Product Overview
This advanced SBR foot sole pad is engineered with a reinforced ribbed structure and multi-bolt mounting holes, delivering exceptional strength, stability, and adaptability for quadruped robots. Its unique geometric surface design not only enhances grip and anti-slip performance but also provides robust support for high-load and high-frequency movement.
Key Features & Performance
- Reinforced Ribbed Structure
Multi-directional ribs distribute impact forces, significantly increasing load-bearing capacity and structural durability. - Multi-Bolt Mounting Holes
Precision-placed holes allow for secure installation and universal compatibility with various robot leg designs. - Premium SBR Material
Combines flexibility, high abrasion resistance, and reliable weatherability, suitable for demanding robotics environments. - Optimized Anti-Slip Surface
Geometric texture and multiple protrusions ensure superior traction on a wide range of surfaces, from smooth lab floors to rough outdoor terrain. - Vibration & Shock Absorption
Effectively reduces mechanical shock and vibration, prolonging the service life of robotic actuators and sensors.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | SBR (Styrene-Butadiene Rubber) |
| Hardness (Shore A) | 70 ± 5 |
| Width | 68.4 mm |
| Height | 64 .1mm |
| Depth | 33.2 mm |
| Structure | Reinforced ribbed with bolt holes |
| Mounting Type | Multi-bolt |
| Surface Texture | Ribbed anti-slip |
| Working Temperature | -30°C to +80°C |
| Tensile Strength | ≥8 MPa |
| Elongation at Break | ≥300% |
| Abrasion (DIN 53516) | ≤200 mm³ |
| Custom Options | Size, hardness, color, logo |
Application Areas
- Quadruped & Bionic Robots: For stable walking, running, and maneuvering in robotics research and field operations
- Industrial & Inspection Robots: Enhanced durability for AGVs, service droids, and maintenance robots
- Education & Prototyping: Ideal for university robotics labs, competitions, and rapid development projects
- OEM/ODM Customization: Supports robot manufacturers and automation integrators requiring custom mounting or advanced structural features
Competitive Advantages
- Ultra-Stable Mounting: Secure installation for high-speed, high-precision robotic movement
- Superior Load Distribution: Ribs and bolt design minimize stress concentration, reducing foot pad wear
- Flexible Customization: Fast prototyping, OEM/ODM support, and quick turnaround for international clients
- Global Quality Standards: Advanced manufacturing, strict QC, and compliance with key industry certifications
Why Choose Our Reinforced SBR Robot Foot Pads?
With 28+ years of expertise in precision rubber molding, we offer high-performance, customizable robot foot pads for next-gen robotics. Our reinforced designs and rapid prototyping capability empower global R&D, automation, and OEM clients to innovate with confidence.
