Choosing the wrong seal for your machinery can lead to leaks, contamination, and expensive downtime. What makes a V-ring different from a lip seal, and how do you know which is right for your application?
A V-ring is a flexible rotary shaft seal with a “V” shape, installed directly on the shaft to exclude contaminants and retain lubrication, mainly sealing axially against a counterface. A lip seal, also called an oil seal or radial shaft seal, fits into a housing bore and seals radially against the shaft to prevent fluid leakage and block contaminants.
Based on my experience in sealing solutions, I’ll explain the main structural and functional differences, typical applications, and the advantages of each design.
How Does the Structure of a V-Ring Compare to a Lip Seal?
Let’s break down how their designs differ.

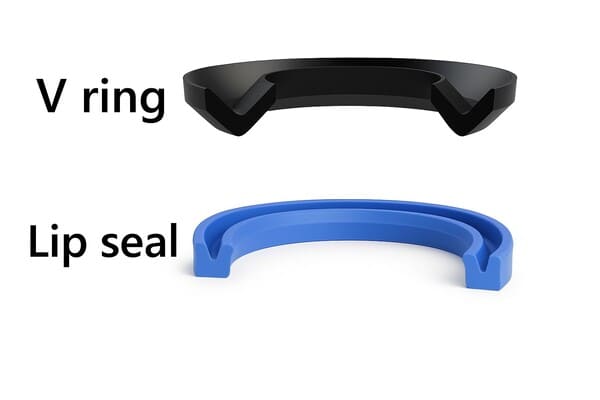

A V-ring is an all-rubber seal shaped like a “V” that stretches over the shaft and seals axially against a stationary surface. A lip seal has a metal-reinforced outer diameter and one or more flexible sealing lips that press radially against the rotating shaft.
| Feature | V-Ring | Lip Seal (Oil Seal1) |
|---|---|---|
| Installation | On shaft, axial seal against counterface | In bore/housing, radial seal against shaft |
| Material | All rubber (NBR, EPDM, FKM2) | Metal outer ring + rubber sealing lip |
| Sealing Direction | Axial (face seal3) | Radial (shaft seal4) |
| Function | Excludes dust, dirt, water; retains grease | Prevents oil/fluid leakage5; blocks contaminants |
| Flexibility | High; compensates shaft misalignment | Moderate; requires precise alignment |
| Typical Application | Secondary seal6, contamination barrier | Primary fluid sealing7, oil retention |
What Are the Main Functions of Each Seal?
Their sealing action and uses are different. What does each do best?
A V-ring is designed primarily as a contaminant excluder. It keeps out dirt, dust, water, and splash, and retains grease by sealing axially against a counterface. A lip seal is designed to hold oil or fluid inside a housing (like a gearbox or motor) by sealing radially against the shaft, blocking both fluid loss and contaminant ingress.
- V-ring8: Used as a secondary seal in electric motors, pumps9, gearboxes, or as a dust excluder for bearings.
- Lip seal10: Used as a primary seal in gearboxes, pumps, axles, automotive engines11, or any application where fluid must not leak out.
Where Should You Use a V-Ring or a Lip Seal?
Proper selection improves equipment life and reduces maintenance.

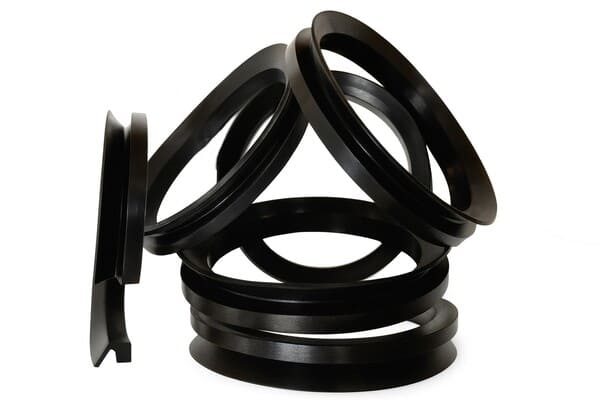

Use a V-ring when you need flexible contamination exclusion, especially for bearings or where shafts may misalign. Use a lip seal when your main goal is to prevent oil or grease leakage from a housing and protect the shaft from contamination.
Here’s a comparison table:
| Application | Best Seal Type | Reason |
|---|---|---|
| Dust/water exclusion | V-ring | Flexible, easy to install, good as excluder |
| Oil/fluid retention | Lip seal | Radial pressure ensures tight fluid seal |
| Shaft misalignment present | V-ring | Can compensate for runout or misalignment |
| High-pressure sealing12 | Lip seal | Withstands higher fluid pressures |
In my work with industrial clients, I’ve seen that combining both seals—lip seal for primary sealing, V-ring for contamination exclusion13—offers the best performance for critical applications.
Why Choose Quality Seals from Julong Rubber?
With so many suppliers, why trust Julong Rubber for V-rings and lip seals?

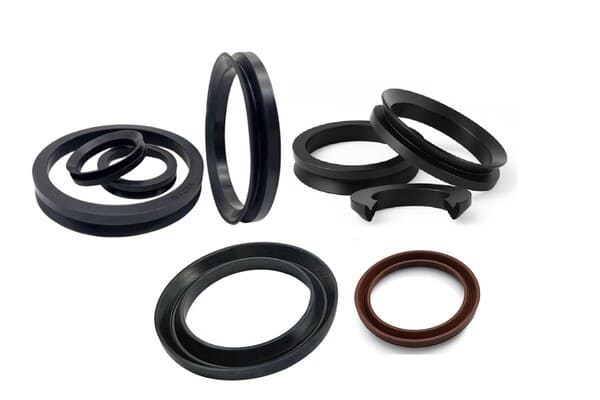

At Julong Rubber, I provide custom-engineered V-rings and lip seals for every application, using premium materials and rigorous quality control for consistent, long-lasting performance.
Advantages of choosing Julong Rubber:
- ✅ Precision fit and custom design
- ✅ Wide material selection (NBR, EPDM, FKM2, silicone)
- ✅ Strict quality checks for reliability
- ✅ Responsive technical support and fast delivery
Our seals are trusted in Germany, France, the Netherlands, and globally.
Ordering Seals from Julong Rubber
- Send your requirements or application details.
- We’ll recommend the best design and material.
- Approve a sample, and we’ll manufacture and ship quickly.
Conclusion
Understanding the key differences between V-rings and lip seals helps you choose the right protection for your equipment. Reliable, quality seals from Julong Rubber keep your machines running smoothly.
-
