Why Do Rubber Wheels Debond?

A rubber wheel can look fine, then the tread slips on the core. The cart shakes, noise rises, and the floor gets marks. Buyers then blame “bad rubber,” but the real cause is often hidden.

Rubber wheels debond when the rubber-to-core bond loses strength faster than the wheel load and heat allow, due to surface prep errors, wrong adhesive system, cure issues, contamination, or harsh service like overload, chemicals, and water ingress.

I make rubber wheels in my factory, and I also buy raw materials, manage molds, and ship to Europe. I learned one lesson early: debonding is never “one simple reason.” It is a chain. When I break that chain, the wheel stays quiet and stable for a long time.

What does rubber wheel debonding look like, and why does it matter?

A wheel that debonds rarely fails¹ in a clean way. The rubber lifts² at one edge, then it creeps, then it tears. Buyers then get downtime, returns, and angry operators.

Debonding matters because the bond is part of the wheel structure. When the bond slips³, load moves to the wrong area, heat rises, and wear speed jumps. In many cases, the wheel then damages floors, bearings, and brackets.

I sort symptoms into “where” and “how fast”

I start with two questions because they save time.

• ✅ Where does separation start: edge, center, or around a keyway?
• ✅ How fast does it grow: minutes, days, or months?

These two answers point to very different root causes.

The common debonding patterns I see

Edge lift is common when water, oil, or cleaning liquid enters from the side. The bond then degrades from the outside in.
Full ring slip can happen when the rubber compound⁴ softens from heat, or when the core surface is too smooth.
Local bubble or blister can happen when solvent is trapped in primer, or when flash rust forms before bonding.

A short story from my workshop

I remember a batch of trolley wheels that came back from a customer. The bond line looked “clean,” and my first thought was “adhesive problem.” I then found a small detail: the customer cleaned the wheels with an aggressive solvent every day. The solvent entered at the side edge. The bond did not fail at day one. It failed after repeated wetting and drying. The fix was simple. I added a better edge geometry, and I changed the rubber compound to resist that cleaner. The returns stopped.

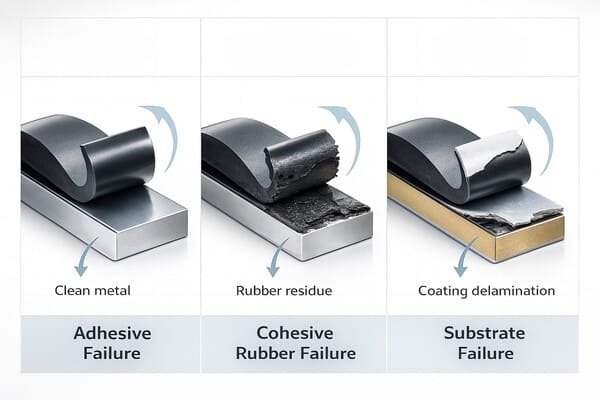

Which bonding failure mode is it: adhesive, cohesive, or substrate failure⁶?

Many buyers only ask “Is the bond strong?” I ask “How did it fail?” The failure mode tells the story in one look.

A bond failure can be adhesive failure⁷, cohesive rubber failure, or substrate-related failure. Each one points to a different fix, so I treat failure mode as the first inspection step.

Adhesive failure: the bond lets go at the interface

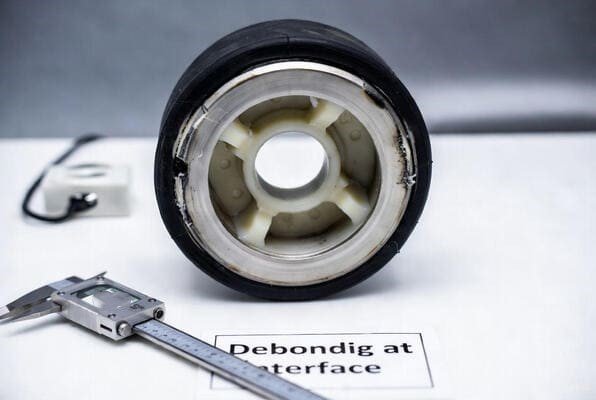

Adhesive failure means the rubber separates cleanly from the core, and you can often see a smooth metal surface. This often points to surface prep, primer coverage⁵, or wrong adhesive system.

✅ Typical triggers I see:

• Oil film left on the core
• Rust that formed after blasting
• Primer too thin or too thick
• Bad dry time, so solvent stays inside

Cohesive failure: rubber tears but the bond stays

Cohesive failure means rubber remains on the core, and rubber tears inside itself. Many buyers think this is “good,” and it often is, but it can still be a problem if rubber is too soft for the load or too brittle in cold.

✅ Typical triggers I see:

• Hardness too low, so shear strain is high
• Temperature too high, so rubber softens
• Rubber compound not matched to chemical media
• Poor cure, so rubber strength is weak

Substrate failure: the core coating or surface fails

Substrate failure means the core surface layer fails. A plated layer can lift. Paint can peel. Aluminum oxide can be weak if pretreatment is wrong. This is easy to miss if you only look at rubber.

Why procurement teams should care

A purchasing team often wants one number, like “peel strength.” I prefer a small failure-mode photo set and a short test report. It reduces arguments. It also reduces repeat claims. It makes supplier audits easier because the root cause is visible.

Which process steps cause debonding in rubber-to-metal wheels?

When a wheel debonds, people like to blame “adhesive.” I usually find a process detail. A wheel bond is like a sandwich. If one layer is wrong, the whole sandwich slides.

Most debonding causes are process-control issues: surface preparation⁸, adhesive application, drying, storage time, and cure cycle⁹. Each step needs a clear window and a simple record.

Step 1: Surface preparation controls the whole bond

I treat metal surface preparation⁸ as non-negotiable. I care about three things: cleanliness, roughness, and timing.

✅ What I control:

• Degreasing method and final rinse
• Abrasive blasting media and profile
• Time from blasting to priming (to avoid flash rust)
• Handling gloves and clean racks

If an operator touches a blasted core with bare hands, oil can transfer. That oil can be invisible. The bond can still look OK at day one, then fail in service.

Step 2: Primer and cover coat need stable film thickness

Bonding systems are sensitive. Too thin can mean gaps. Too thick can mean solvent entrapment. Dry time matters, and humidity matters.

✅ What I control:

• Viscosity check before use
• Spray distance and overlap
• Dry time range, not “dry until it feels dry”
• Shelf life and open time of the adhesive

Step 3: Rubber compound and cure must match the adhesive system

A bonding system is not universal. Cure temperature and time affect both rubber crosslink and adhesive chemistry. If the cure is too low, the bond can be weak. If cure is too high, rubber can degrade at the interface.

Step 4: Storage and transport between steps can ruin a good setup

I have seen great surface prep ruined by poor storage. Dust, humidity, and time all matter. If primed cores sit for too long, surface contamination can return.

A practical “bond-window” rule I use

I keep a simple window for each step. I do not let “experience” replace records. Records are faster than debates, and they protect both buyer and supplier when problems happen.

Which design and use conditions accelerate debonding in the field?

Even a perfect bond can fail if the wheel design and the real service do not match. Many wheel failures are not factory defects. They are mismatch defects.

Debonding accelerates with overload, high speed, high temperature, shock impact, side load, and chemical exposure. I always ask buyers for the real load and the real floor conditions, not the catalog load.

Load, speed, and heat are linked

Heat is the quiet killer. When a wheel carries load and rolls, it flexes. Flexing creates hysteresis heat. If the wheel runs fast or carries overload, internal temperature rises. Many adhesives and rubbers lose strength as temperature rises.

✅ What I ask for:

• Static load per wheel
• Rolling load and duty cycle
• Speed and run time per shift
• Ambient temperature near the wheel

Side load and torsion can shear the bond

A wheel bond is strong in compression, but it can be sensitive in shear. Side loads can come from misalignment, uneven floors, or tight turning.

✅ Common side-load sources:

• Caster misalignment
• Fixed wheel used in turning path
• Forklift impacts
• Poor bearing fit

Chemical compatibility is not optional

Some wheels see oils, coolants, detergents, and disinfectants. These can soften rubber or attack the bond line. The edge area is often the first entry path.

Hardness selection is a debonding decision

Hardness is not only about rolling resistance. Hardness affects bond stress. A very soft rubber (low Shore A) can twist more under torque. A very hard rubber can crack in cold impact. Both cases can lead to bond failure.

Certification and compliance still matter

Some buyers need RoHS, REACH, or food-contact compliance. These requirements can change formulation choices. Formulation changes can also change bonding behavior. I treat compliance as part of the engineering input, not paperwork after production.

How do I prevent debonding when I source rubber wheels from China?

Buyers often ask me for a “debond-proof wheel.” I explain a more realistic goal: a wheel that matches the real service, with a controlled bonding process, and with tests that reflect the real risks.

I prevent debonding by aligning four items: wheel design, rubber compound, bonding system, and verification tests. When these four match, the wheel is stable and repeatable.

I start with a sourcing checklist¹¹ that is easy to verify

I like a checklist because it turns quality into simple yes or no items. It also helps procurement teams that do not have deep rubber engineering experience.

✅ My checklist:

• Drawing with core material and surface spec
• Load, speed, and environment definition
• Rubber type and hardness range
• Bonding failure mode acceptance rule
• Batch traceability and test plan¹²

A practical test plan that fits B2B purchasing

I do not push buyers to over-test. I push buyers to test the right risks. For bonded wheels, I care about bond retention after aging¹³, not only initial bond strength.

I use material selection logic¹⁵, not “one rubber fits all”

Rubber choice depends on what the wheel touches.

• Natural rubber and SBR can give good wear and comfort on many floors.
• NBR can help when oils are present.
• EPDM can help when hot water and some cleaners are present.

I still confirm by testing because real fluids differ by brand and concentration.

Rubber wheel vs PU wheel is a real sourcing choice

Many buyers compare rubber and polyurethane wheels. I do not say one is always better. I match them to the job.

My simplest “RFQ language” for debonding control

When a buyer sends a clear RFQ, the supplier can build a stable process. I suggest buyers include:

• Bonding type¹⁶: rubber-to-metal bonded wheel¹⁷
• Core material: aluminum or steel, with surface prep requirement
• Rubber hardness¹⁸: target + tolerance
• Acceptance: no debonding, no slip, and defined failure mode in tests
• Aging: heat and soak conditions that match the job

let me help you remove debonding risk

If you want, I can review your wheel drawing, your load data, and your environment. I can then recommend rubber type, hardness, and a test plan that fits your risk and budget. You can also learn more about my factory at Julong Rubber.

Conclusion

I treat wheel debonding as a chain problem. When I control surface prep, adhesive, cure, design, and real service risks, the bond stays stable.
