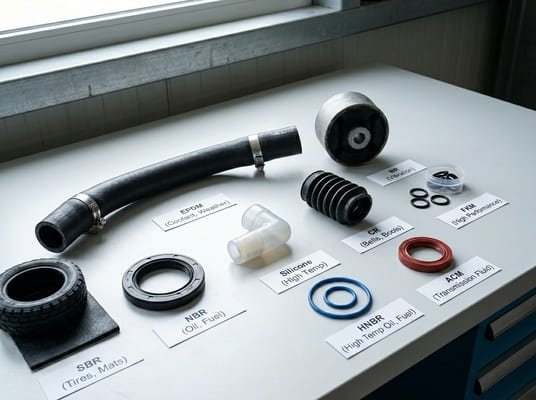

What Are the Most Common Rubber Materials Used in Automobiles?

Choosing one rubber for every car part sounds efficient, but it can cause leaks, cracking, noise, swelling, or early failure.

The most common automotive rubber materials include EPDM, NBR, silicone, CR, NR, SBR, HNBR, ACM, and FKM. Each one is used where its resistance, flexibility, sealing behavior, and durability fit the vehicle application.

In automotive applications we commonly see one vehicle using several rubber material families. The right choice depends on where the part is installed, what it contacts, how it moves, and what failure would cost.

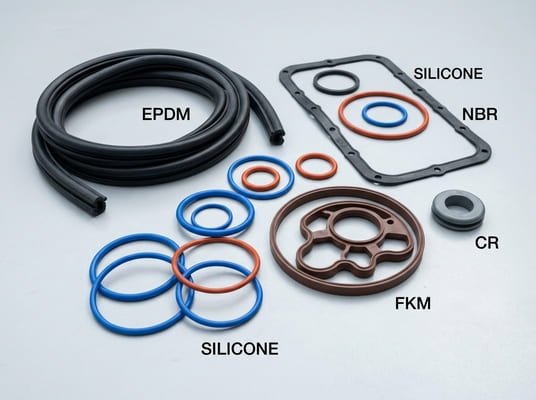

Which Rubber Is Used for Automotive Seals and Gaskets?

Many sourcing problems start when buyers treat all automotive seals as the same type of rubber part.

EPDM, NBR, silicone, FKM, and sometimes CR are commonly used for automotive seals and gaskets, depending on fluid contact, heat, compression, and exposure.

Automotive seals and gaskets can look simple, but the material decision is very application-specific. A door seal, oil gasket, coolant gasket, dust seal, and fuel-system seal should not be judged by the same rubber logic.

For general weather sealing, EPDM is commonly considered¹ because it is widely used in applications exposed to weather, ozone, and water. For oil-contact sealing, NBR or HNBR may be considered². For high-heat sealing, silicone or FKM may enter the discussion³. For demanding fuel, oil, or chemical exposure, FKM may be reviewed when the cost and performance requirement justify it.

As a supplier, I first ask what the seal must block. Is it water, dust, oil, fuel vapor, coolant, air, or road contamination? I also check whether the seal is static or dynamic. A static gasket mainly needs compression recovery and media resistance.⁴ A dynamic seal may also need wear behavior and friction control.

✅ The key point is simple: the same vehicle may use EPDM for one seal⁶, NBR for another, and FKM for a third. The material name should follow the application, not the other way around.

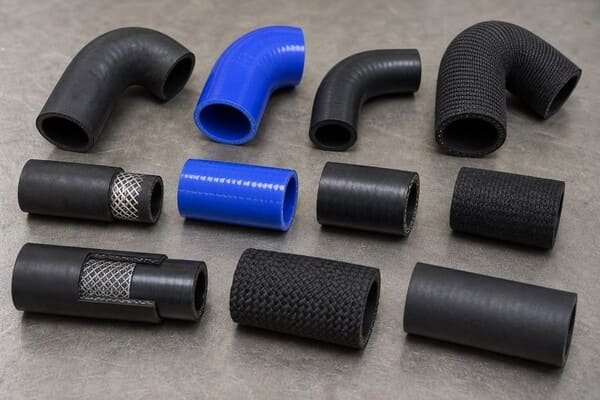

Which Rubber Is Used for Automotive Hoses?

A hose failure can stop a vehicle, damage nearby parts, or create safety and maintenance problems.

Automotive hoses commonly use EPDM, NBR, CR, silicone, HNBR, and FKM-related compounds, depending on whether they carry coolant, air, oil, fuel, or other fluids.

Automotive hoses are a good example of why “common rubber” does not mean “universal rubber.” A coolant hose, fuel hose, vacuum hose, air intake hose, and oil hose face different service conditions.

EPDM is commonly used in coolant and heater hose applications⁷ because these parts need flexibility, heat-aging resistance, and water or coolant compatibility. NBR is often considered when oil or fuel resistance is important⁸. CR may appear in some hose covers or applications where general weather and mechanical protection are needed. Silicone is often considered for heat-sensitive air or coolant-related hose applications⁹, especially where flexibility over temperature is important.

However, hose construction is not only about the rubber compound. Many hoses include reinforcement layers, inner tubes, outer covers, and sometimes fabric or wire support.¹⁰ The inner rubber must match the fluid. The outer rubber must match the outside environment. This is why a buyer should not approve a hose material based only on the outer surface.

From Julong Rubber’s production view, hose material selection should be confirmed together with wall thickness, reinforcement, pressure requirement, bend radius, fittings, and test requirements¹¹. A good compound cannot save a hose if the structure is wrong.

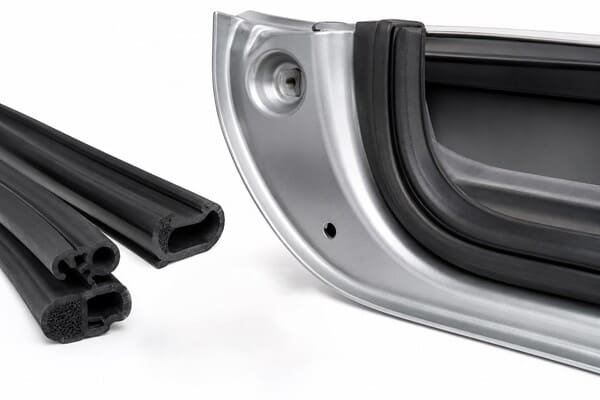

Which Rubber Is Used for Automotive Weatherstrips and Door Seals?

Weatherstrips need to seal for years while facing sunlight, rain, ozone, dust, and repeated door movement.

EPDM is the most common material direction for automotive weatherstrips and door seals because these parts need weather resistance, ozone resistance, flexibility, and sealing recovery.

Automotive weatherstrips and door seals are usually selected for environmental durability and compression behavior.¹² They must seal water and dust, reduce noise, support door closing, and recover after repeated compression.

EPDM is widely associated with these parts because it is well suited for many weather-exposed sealing applications.¹³ In practice, I commonly see EPDM considered for door seals, trunk seals, window seals, hood seals, body seals, and other exterior or semi-exterior rubber profiles.

But EPDM is still not one fixed product. The compound, sponge density, solid section design, surface coating, hardness, extrusion tolerance, and corner bonding method can all change the final performance. A weatherstrip must be soft enough to seal, but not so weak that it collapses or tears during installation.

What matters in weatherstrip material selection?

A buyer may ask only for “EPDM door seal,” but I still need the drawing or sample, installation position, hardness requirement, color, surface finish, and packing method. For custom automotive rubber seals, these details affect both quality control and quotation accuracy.

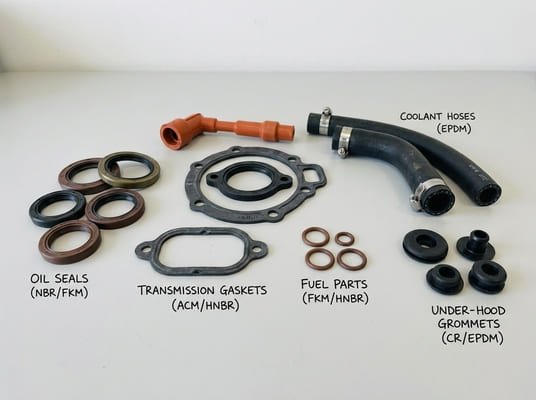

Which Rubber Is Used for Engine, Fuel and Transmission Parts?

Under-hood parts face heat, oil, fuel, vibration, and tight assembly spaces. A wrong compound can fail quickly.

NBR, HNBR, ACM, silicone, and FKM are common choices for engine, fuel, and transmission-related rubber parts, depending on heat, oil, fuel, and service risk.

Engine, fuel, and transmission areas need more careful material review because the exposure is usually harsher than body sealing or interior cushioning.¹⁴ Here, rubber parts may contact oil, grease, fuel vapor, coolant, hot air, or transmission fluid. They may also face continuous heat and vibration.

NBR is commonly considered for oil-contact parts when the temperature and media are suitable¹⁵. HNBR may be used where better heat and oil resistance are required, depending on the application. ACM can be considered in some oil and transmission-related sealing uses¹⁶. Silicone is often used where heat and flexibility are important, but it should not be assumed suitable for all oil or fuel contact. FKM is often considered when higher resistance is required for fuel, oil, or chemical exposure, but cost and approval requirements must be reviewed.

🛠️ The important point is that “engine rubber” is not a single material group. A spark plug boot, oil seal, gasket, fuel-system seal, coolant part, and transmission seal may all require different compounds.

For these parts, I avoid giving a material answer before knowing the fluid. “Oil resistant” is too general. Engine oil, grease, fuel, transmission fluid, coolant, and cleaning chemicals can affect rubber differently. The exact condition should be checked before tooling and sampling.

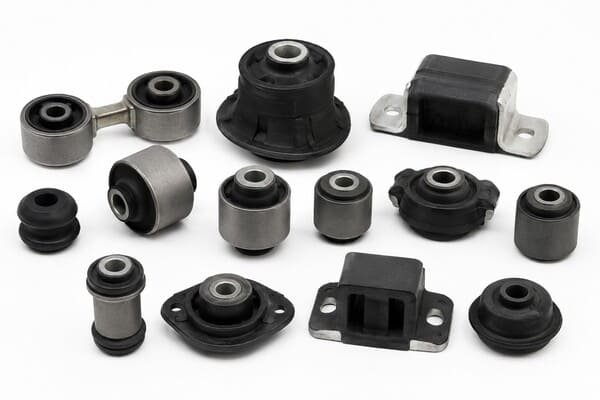

Which Rubber Is Used for Suspension, Bushings and Vibration Parts?

Vibration parts do not only need to be strong. They must control movement, noise, fatigue, and load.

NR, SBR, CR, EPDM, and selected synthetic rubber blends are commonly used for suspension bushings, mounts, pads, and vibration-control parts.

Suspension and vibration-control parts are selected differently from seals. Their job is not only to block fluid or dust. They must absorb vibration, carry load, reduce noise, and survive repeated movement.¹⁷

Natural rubber is commonly used in many vibration applications¹⁸ because it can provide good elasticity and fatigue behavior when properly compounded and bonded. SBR may be used in blends or certain rubber components where cost and mechanical behavior need balance. CR may be considered where oil exposure, weathering, or mechanical durability must be reviewed together. EPDM may be used where ozone and weather exposure are more important than oil resistance.

For bushings and mounts, the rubber compound is only one part of the design. Metal bonding, rubber geometry, hardness, preload, compression, shear movement, and fatigue testing also matter. A good material can still fail if the bonded structure or part design is not suitable.

In B2B automotive rubber parts, I always ask whether the part works in compression, shear, tension, or a mixed load condition. That answer can change the material, hardness, bonding method, and test plan.

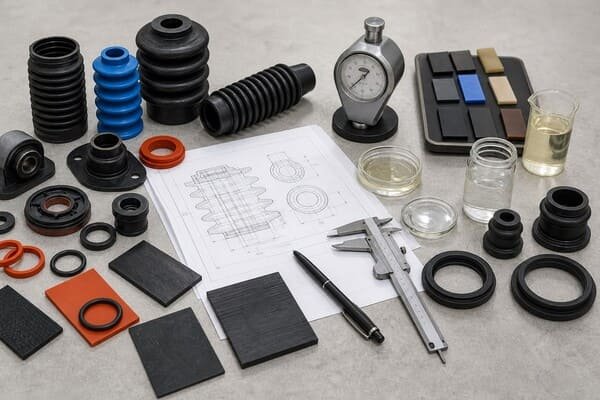

How Should Engineers Choose Automotive Rubber Materials?

Many projects start with a familiar material name, but that can lead to a wrong shortlist.

Engineers should choose automotive rubber materials by part location, media exposure, temperature, movement, compression, durability target, tolerance, and failure consequence.

The best starting point is not “Which rubber is common?” The better starting point is “What must this part survive?” A door seal, hose, engine gasket, fuel seal, bushing, and grommet each has a different failure mode.

In automotive applications we commonly see buyers send a drawing and ask for the material. A drawing is helpful, but it does not always show the environment. It may not show fluid exposure, temperature, assembly force, vibration, UV exposure, or expected life. Without those details, a supplier can only make a broad assumption.

A practical selection flow should include:

1. Define the part function.
2. Confirm the vehicle zone.
3. Identify contact media.¹⁹
4. Check temperature and weather exposure.
5. Review movement and compression.
6. Confirm hardness and tolerance.²⁰
7. Decide whether testing or approval is required.
8. Shortlist material families.
9. Produce samples for validation.

If you are sourcing automotive rubber seals, rubber gaskets, rubber hoses, O-rings, rubber bushings, or custom molded rubber parts, you can send the part drawing, current material, application zone, and exposure details to Julong Rubber. I can help narrow the material family before quoting, so the discussion starts from a realistic technical direction.

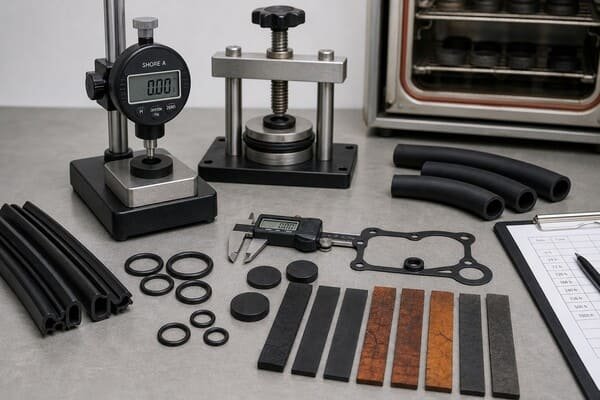

What Tests Should Be Required for Automotive Rubber Parts?

A rubber part may look correct at delivery but fail after heat, fluids, compression, or repeated movement.

Automotive rubber parts should be tested for hardness, dimensions, tensile properties, compression set, heat aging, fluid resistance, ozone resistance, fatigue, and functional fit when relevant.

Testing should match the part function. A weatherstrip needs different proof than a fuel seal. A suspension bushing needs different proof than a coolant hose. A rubber grommet may need installation and pull-out checks, while a gasket may need compression and leakage review.

For seals and gaskets, compression set, hardness, dimensional tolerance, and media exposure are usually important. For hoses, pressure, burst behavior, flexibility, aging, and fluid compatibility matter. For weatherstrips, ozone, weathering, compression recovery, and profile tolerance are important. For vibration parts, fatigue, bonding, hardness, and load-deflection behavior may be needed.

Common test categories for automotive rubber parts

Exact standards, temperatures, fluids, and acceptance limits should be confirmed by the buyer, OEM requirement, or project specification. When no clear requirement is available, I recommend defining the risk first. A low-risk cover may need a simple inspection plan. A fuel-contact seal or safety-related vibration part needs a much stricter review.

For automotive B2B projects, sample approval is very important. A sample lets the buyer check fit, installation, hardness, function, and early performance before mass production. It also gives the supplier feedback before tooling or process changes become costly.

Conclusion

Automotive rubber selection should start from the part’s function, location, exposure, and failure risk, not from one general material name.
