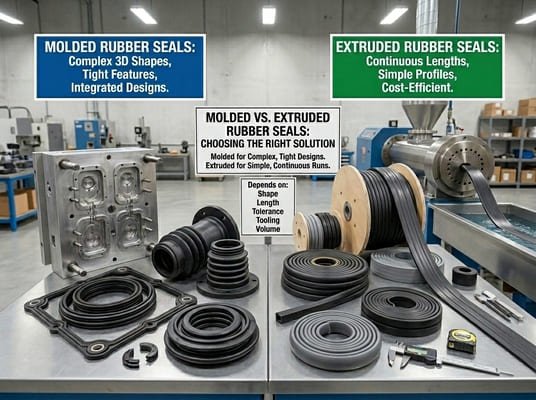

Molded Rubber Seals vs. Extruded Rubber Seals: Which Is Better for Your Application?

Wrong seal design can cause leakage, poor fit, and delayed projects. The right choice depends on shape, length, tolerance, tooling, and volume.

Molded rubber seals are better for complex 3D shapes, tight features, corners, and integrated sealing designs. Extruded rubber seals are better for continuous lengths, simple cross-sections, profiles, strips, and cost-efficient long-run production.

I do not choose molded or extruded rubber seals by process name alone. I choose by sealing geometry, material behavior, assembly method, tolerance needs, MOQ, tooling cost, and long-term purchasing plan.

What Is the Difference Between Molded and Extruded Rubber Seals?

Many buyers compare molded and extruded seals only by price. That can lead to poor sealing, wrong tooling, and unstable fit.

Molded rubber seals are formed inside a mold cavity. Extruded rubber seals are pushed through a die to create continuous profiles. The main difference is shape complexity, production method, tolerance behavior, tooling cost, and suitable application.

How are molded rubber seals made?

Molded rubber seals are made by placing rubber compound into a mold and curing it under heat and pressure.¹ The mold cavity defines the final shape. This process is useful when the seal has a complex form, holes, grooves, lips, corners, inserts, stepped surfaces, or 3D features.

Molding can be done by compression molding, transfer molding, or injection molding.² Compression molding is common for many custom rubber seals and gaskets. Injection molding can be useful for high-volume production and more complex parts. Transfer molding can support parts with inserts or more controlled filling.

Molded seals are often used when the part must fit a specific housing. The mold controls the seal shape more directly than extrusion. This makes molding useful for custom rubber gaskets, O-rings, rubber caps, rubber plugs, rubber diaphragms, valve seals, and automotive molded seals.

How are extruded rubber seals made?

Extruded rubber seals are made by pushing rubber compound through a die. The die creates a continuous cross-section. The profile is then vulcanized, cooled, cut to length, and sometimes joined into frames or rings.

Extrusion is very practical for long rubber profiles.³ It is widely used for door seals, cabinet seals, HVAC seals, window profiles, D-shaped seals, U-channel seals, sponge rubber strips, and custom rubber extrusions.

The main advantage of extrusion is continuous production⁴. If the cross-section is consistent along the length, extrusion is usually more efficient than molding. A simple EPDM rubber profile can often be produced in long coils or cut lengths. This makes extrusion strong for ongoing B2B supply.

Basic Process Comparison

In my factory work at Julong Rubber, I often ask one first question: does the seal need a continuous profile or a shaped part? If it is a long seal with the same cross-section, extrusion is usually the first process to review. If the seal has complex geometry or fixed 3D shape, molding is usually better.

When Should You Choose Molded Rubber Seals?

Some seals need more than a simple profile. Molded rubber seals are better when the shape must be controlled in all directions.⁵

Choose molded rubber seals when your application needs complex geometry, precise holes, molded corners, integrated lips, non-continuous shapes, rubber-to-metal bonding, or a seal that must fit a specific housing exactly.

Molded rubber seals are the better choice when the sealing design is not just a continuous cross-section. If the part has special features in different directions, molding gives the supplier better control over the shape.

For example, a molded rubber gasket may include bolt holes, raised sealing beads, ribs, bosses, grooves, or location features. These details are difficult or impossible to make by simple extrusion. Molding is also better when the seal must be one piece with a defined shape⁶, such as a custom rectangular gasket, circular gasket, pump seal, valve gasket, rubber cap, rubber plug, or rubber diaphragm.

Typical Molded Rubber Seal Applications

Molded seals are also useful when the part needs better control of local geometry.⁷ A rubber seal may need a raised lip in one area, a groove in another area, and a hole in another area. Extrusion cannot easily create this kind of changing geometry along the part.

However, molded rubber seals usually need higher tooling investment than extruded profiles.⁸ A mold must be designed, machined, tested, and sometimes adjusted after sample trial. If the part is large or complex, the mold cost can be higher. The production lead time can also be longer when new tooling is required.

Material choice is also important.⁹ Molded seals can be made from EPDM, NBR, silicone, FKM, natural rubber, neoprene, HNBR, or other compounds. The material should match the application. EPDM is good for weather, ozone, UV, and water. NBR is better for oil. Silicone is better for heat. FKM is better for heat, oil, fuel, and many chemicals.

For molded seals, I suggest buyers provide a 2D or 3D drawing, material requirement, hardness, tolerance, working temperature, media contact, compression condition, and expected quantity. This helps the supplier review mold design, shrinkage, flash, parting line, and inspection requirements before quoting.

When Should You Choose Extruded Rubber Seals?

Long sealing lines need stable cross-sections and efficient production.¹⁰ Extruded rubber seals are often the best choice for that job.

Choose extruded rubber seals when your application needs continuous lengths, simple or repeated cross-sections, flexible profiles, door seals, cabinet seals, HVAC seals, sponge strips, or cost-efficient long-run production.

Extruded rubber seals are ideal when the seal has the same cross-section along its length.¹¹ This is common in doors, panels, enclosures, cabinets, HVAC systems, cold rooms, vehicles, electrical boxes, marine equipment, and industrial frames.

The extrusion process allows rubber to be produced continuously. The rubber compound passes through a die, forming a profile. The profile is then cured and cut. This makes extrusion efficient for long seals, strips, tubes, cords, and profiles.

Typical Extruded Rubber Seal Types

EPDM is one of the most common materials for extruded seals¹² because it has excellent weather, ozone, UV, and water resistance. This makes it useful for outdoor seals, HVAC seals, door seals, and enclosure gaskets. Silicone extrusion is useful for high-temperature applications. NBR extrusion may be used when oil resistance is needed. Sponge rubber extrusion is useful when the assembly has low closing force.

Extrusion tooling is often cheaper than molding tooling.¹³ A die is generally simpler than a full mold. This can make extrusion attractive for buyers who need custom profiles but want to control tooling cost.

However, extrusion is not always the best choice. It is not ideal for complex 3D shapes, molded holes, variable geometry, or parts that need precise corners without joining. Extruded profiles may also need splicing or corner bonding when used as frames. The quality of the splice can affect sealing performance.

When Extrusion Works Best

✅ The seal has a constant cross-section.¹⁴
✅ Long lengths are needed.
✅ The profile can be supplied in coils or cut lengths.
✅ Tooling cost must be controlled.
✅ The application needs flexible sealing.
✅ Volume production is expected.
✅ The material can be extruded reliably.

For custom extruded seals, I suggest sending the profile cross-section drawing, material, hardness or density, length, tolerance, joining requirement, application environment, and annual volume. This helps the supplier review die design, profile stability, curing, cutting, packaging, and MOQ.

Which Option Is Better for Continuous Sealing Lengths?

Continuous sealing length is where extrusion usually becomes stronger. Molding has limits when the seal must run around long frames or panels.

Extruded rubber seals are usually better for continuous sealing lengths because they can be produced in long coils or cut lengths with a consistent cross-section. Molded seals are better when the shape is complex or fixed.

When a buyer needs a seal that runs along a door, frame, panel, cabinet, window, or HVAC housing, extrusion is usually the best starting point. Extruded profiles can be produced continuously, which makes them practical for long sealing applications.¹⁵

A molded rubber seal is limited by mold size. If the seal is very long, the mold becomes large and expensive. Molding a long straight seal is usually inefficient unless the part has special molded features. Extrusion is more natural for this type of product.

Continuous Length Comparison

Extruded seals can be supplied in coils, rolls, straight lengths, or cut-to-size pieces¹⁶. This gives buyers flexibility. For distributors, coil supply may reduce SKU pressure. For OEM buyers, pre-cut lengths can reduce assembly time. For equipment manufacturers, joined frames can make installation easier.

However, buyers should review the corner design. If the seal needs a continuous rectangular or circular frame, the extruded profile may need splicing, vulcanized joining, adhesive bonding, or molded corners. The choice affects sealing performance and cost.

For low-pressure sealing, a well-made splice may be enough.¹⁷ For higher sealing requirements, molded corners or a one-piece molded gasket may be better. If the joint becomes the leakage point, the extrusion cost advantage may disappear.

Practical Questions for Continuous Seals

For continuous sealing, extrusion is usually the most cost-effective process.¹⁸ But the final decision should include corner design, compression force, material, hardness, tolerance, and installation method.

Which Option Is More Cost-Effective?

Cost-effectiveness depends on more than unit price. Tooling, MOQ, assembly labor, scrap, sealing risk, and repeat volume all matter.

Extrusion is usually more cost-effective for long continuous profiles and ongoing volume. Molding is more cost-effective when complex geometry, one-piece design, reduced assembly labor, or better sealing reliability justifies the higher tooling cost.

When is extrusion the lower-cost option?

Extrusion is often lower cost¹⁹ when the seal has a constant cross-section and long length. The tooling cost is usually lower, and production can be continuous. This makes extrusion practical for EPDM profiles, sponge strips, cabinet seals, door seals, edge trims, and HVAC sealing profiles.

Extrusion can also reduce material waste²⁰ for long profiles. If the buyer needs many meters of the same seal, extrusion usually gives better cost efficiency than molding.

When is molding worth the extra cost?

Molding is worth the extra cost when the part needs shape accuracy, integrated features, or one-piece sealing reliability.²¹ A molded gasket with holes may save assembly time. A molded corner may reduce leakage risk. A molded cap may fit better than a cut profile. A molded rubber-to-metal seal may be impossible by extrusion.

Cost-Effectiveness Comparison

The cheapest process is not always the best process²². If extrusion creates joint leakage, assembly labor, or installation problems, molding may be more cost-effective. If molding is used for a simple long profile, the buyer may pay unnecessary tooling and production cost.

For B2B buyers, I suggest comparing total cost:

✅ Tooling cost
✅ Unit price
✅ MOQ
✅ Lead time
✅ Assembly labor
✅ Scrap rate
✅ Inspection cost
✅ Shipping method
✅ Failure risk
✅ Repeat order stability

At Julong Rubber, I prefer to help buyers compare both routes when the design is flexible. If extrusion can meet sealing needs, it often saves cost. If molding protects sealing performance, the higher tooling cost may be justified.

Conclusion

Extruded rubber seals are usually better for continuous profiles. Molded rubber seals are better for complex shapes. The best choice depends on geometry, material, tolerance, MOQ, and sealing risk.
