Wrong automotive seals can cause leaks, noise, warranty claims, and delayed production. The real issue is often poor specification, not only poor manufacturing.
To customize automotive rubber seals for OEM applications, buyers should define seal function, material, geometry, process, tolerance, testing, volume, tooling, and approval requirements before production.
At Julong Rubber, I treat custom automotive rubber seals as an engineering and procurement decision. A seal is not just a rubber profile or molded part. It must match the vehicle system, assembly method, working temperature, fluid exposure, compression condition, and long-term quality requirement. When these details are clear, the quotation is faster, the sample is more accurate, and the production risk is much lower.
What Are Custom Automotive Rubber Seals?
Many buyers use the word “seal” too generally. This can create confusion when drawings, materials, and performance requirements are not clear.
Custom automotive rubber seals are engineered rubber parts designed for specific vehicle sealing, protection, vibration, insulation, or fluid-control applications.
Custom automotive rubber seals are made according to a buyer’s drawing, sample, assembly condition, or vehicle platform requirement. They can be molded, extruded, die-cut, bonded, or combined with plastic, metal, adhesive tape, flocking, or sponge rubber.
These seals may look simple, but their function is critical1. They block water, dust, air, oil, coolant, fuel vapor, noise, and vibration2. They also protect cables, panels, doors, windows, engines, HVAC systems, and battery systems.
Common custom automotive rubber seals include:
| Seal Type | Common Location | Main Function |
|---|---|---|
| Door seals | Vehicle body and door frame | Waterproofing, dust sealing, noise reduction |
| Window seals | Glass and body opening | Weather sealing and glass protection |
| Engine seals | Engine covers, housings, connectors | Heat, oil, and pressure sealing |
| HVAC seals3 | Air ducts, evaporator, blower units | Air sealing and condensation control |
| O-rings | Engine, fuel, cooling, HVAC, hydraulic systems | Dynamic or static sealing |
| Rubber gaskets | Covers, pumps, flanges, housings | Compression sealing |
| Grommets | Cable holes and body panels | Cable protection and waterproofing |
| Battery pack seals4 | EV battery housing | Water, dust, and thermal system protection |
| Connector seals | Electrical connectors | Moisture and dust protection |
For OEM applications, a seal must fit the assembly and support repeatable production5. This means the supplier should understand not only the rubber material, but also the installation force, compression ratio, tolerance stack-up, surface contact, production batch size, and inspection method.
A custom seal is successful when it performs well in the vehicle and can be produced consistently in volume. That is why I always recommend buyers prepare both engineering information and procurement information before sending an RFQ.
When Do You Need a Custom Automotive Rubber Seal?
Some buyers try to use standard seals to save cost, but the wrong fit can create bigger quality and assembly problems6.
You need a custom automotive rubber seal when standard seals cannot meet your size, geometry, material, tolerance, compression, or application requirements.
A standard O-ring or gasket may work for simple sealing points7. However, many automotive applications need custom profiles, complex shapes, special material compounds, tight tolerances, or special installation features.
You usually need a custom seal in these situations:
- The seal must fit a unique groove, housing, door frame, or connector.8
- The part must resist oil, fuel, coolant, ozone, heat, or road chemicals.
- The seal needs a special Shore A hardness.
- The seal must control compression set over long service life.
- The part must reduce noise, vibration, or water leakage.
- The vehicle platform has a specific assembly process.
- The current seal has failed due to cracking, swelling, leakage, or poor fit.
- The buyer needs a stable B2B supply for OEM or aftermarket production.
Custom seals are often needed when failure risk is high
A low-cost seal can become expensive if it causes leakage, assembly rework, or warranty claims. For example, a door seal with poor compression recovery may create wind noise or water leakage. An engine gasket made from the wrong material may swell in oil9. A cable grommet with poor fit may allow water into an electrical connector.
In my work with automotive rubber buyers, I often see problems caused by incomplete specifications. A buyer may send only a photo and ask for a price. This is not enough for a reliable OEM rubber seal quotation. The supplier needs to understand the seal’s function, working environment, installation method, and quality expectation.
Standard vs custom automotive seals
| Decision Point | Standard Seal | Custom Seal |
|---|---|---|
| Size | Existing standard size | Designed to drawing or sample |
| Tooling cost | Usually lower | Depends on mold or extrusion die |
| Lead time | Usually faster | Includes tooling and sample approval |
| Material | Limited standard options | Matched to application |
| Fit | Works only if design allows | Designed for exact assembly |
| Quality control | General inspection | Can follow buyer-specific requirements |
| Best use | Simple O-rings or washers | OEM seals, gaskets, profiles, grommets, boots |
Custom seals are not always more expensive in the full project cost. If they reduce assembly problems, improve sealing performance, and prevent field failure, they can be the more practical choice.

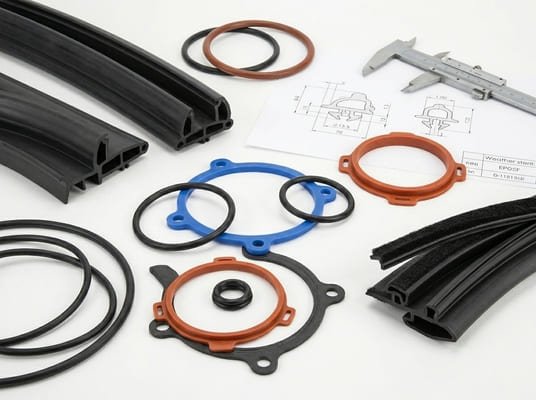

How Do You Specify an Automotive Rubber Seal?
An unclear specification causes wrong samples, slow quotation, and quality disputes after production.
To specify an automotive rubber seal, define the application, drawing, material, hardness, tolerance, compression, temperature, fluid exposure, testing, quantity, and approval requirements.
A good seal specification connects engineering details with purchasing details. This helps the supplier quote correctly and produce parts that match the real working condition.
Basic information buyers should provide
| Specification Item | Why It Matters |
|---|---|
| 2D drawing or 3D file | Confirms shape, dimensions, tolerance, and tooling design |
| Physical sample | Helps check real shape, hardness, and surface condition |
| Application location | Shows whether the seal is used in body, engine, HVAC, fuel, chassis, or EV system10 |
| Material requirement | Guides compound selection |
| Shore A hardness | Affects flexibility, sealing force, and installation |
| Working temperature | Prevents hardening, softening, or cracking |
| Fluid contact | Confirms oil, fuel, coolant, water, or chemical resistance |
| Compression condition | Helps control compression set and sealing recovery |
| Surface requirement | Affects appearance, friction, and assembly |
| Quantity and annual volume | Affects tooling, MOQ, production planning, and unit price |
| Testing requirement | Supports quality control and documentation |
| Target lead time | Helps plan tooling, samples, and mass production |
Seal geometry matters as much as material
A good material cannot fix a bad seal design. Seal geometry controls how the part compresses, how it contacts the mating surface, and how it recovers after long use.
For extruded automotive seals, I check wall thickness, hollow bulb design, corner joining method, surface finish, and compression behavior. For molded rubber seals, I check parting line position, flash control, tolerance, shrinkage, and mold release. For O-rings and gaskets, I check groove size, squeeze ratio, cross-section, and compression set risk.11
Important specification questions
Before production, buyers should answer these questions:
- Is the seal static or dynamic?
- Is the seal exposed to oil, fuel, coolant, water, dust, ozone, or sunlight12?
- What is the minimum and maximum working temperature?
- What Shore A hardness is required?
- Is low compression set critical?
- Does the part need ASTM D2000 or buyer-specific material callout?
- Does the seal need PPAP, IMDS, inspection report13, or other automotive documentation? Needs verification.
- What are the sample approval steps?
- What is the expected annual volume?
If you need support with drawing review, material selection, or RFQ preparation for custom automotive rubber seals, Julong Rubber can review your application details and suggest a practical production direction before tooling starts.

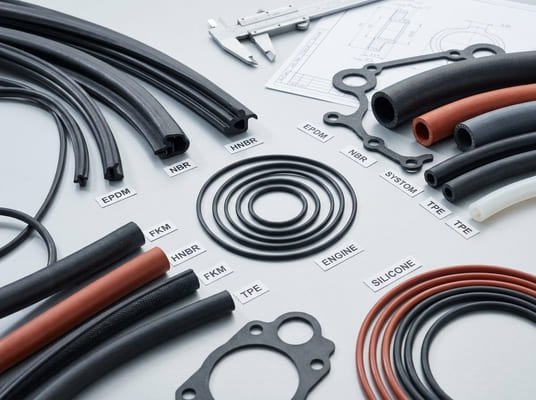

Which Rubber Material Is Best for Automotive Seals?
The wrong material may pass visual inspection but fail after heat, oil, fuel, ozone, or compression exposure.
The best rubber material depends on the seal location, temperature, fluid exposure, compression set requirement, weather resistance, durability, and cost target.
There is no single best material for all automotive seals. EPDM, NBR, HNBR, FKM, silicone, and TPE all have useful places in automotive applications.14 The correct choice depends on the working environment.
Automotive rubber material comparison
| Material | Common Automotive Use | Strength | Limitation | Cost Level |
|---|---|---|---|---|
| EPDM | Door seals, window seals, HVAC seals, coolant seals | Weather, ozone, water, and aging resistance | Poor petroleum oil resistance | Low to medium |
| NBR | Oil seals, fuel-related seals, gaskets, O-rings | Good oil and fuel resistance | Poor ozone resistance unless protected | Low to medium |
| HNBR | Engine seals, fuel system seals, high-performance O-rings | Better heat, oil, and aging resistance than NBR | Higher cost than NBR | Medium to high |
| FKM | High-temperature oil, fuel, and chemical seals | Strong heat, oil, fuel, and chemical resistance | Higher cost and less flexible in some low-temperature cases | High |
| Silicone | High/low temperature seals, special gaskets, EV and HVAC applications | Good temperature flexibility | Tear and abrasion resistance need review | Medium to high |
| TPE | Some body seals, interior seals, lightweight applications | Easy processing and recyclable options | May not match thermoset rubber in all harsh conditions | Medium |
EPDM for weather and water sealing
EPDM is widely used in automotive body seals because it resists ozone, sunlight, water, and aging.15 It is common for door seals, window seals, trunk seals, HVAC seals, and some coolant-related sealing applications. Sponge EPDM is also used where soft compression is needed.
However, EPDM is not suitable for petroleum oil or fuel contact. If a buyer uses EPDM in an oil-exposed engine area, swelling and failure may happen.
NBR and HNBR for oil resistance
NBR is a practical material for oil-resistant automotive seals. It is used for O-rings, gaskets, and fuel-related applications where oil or petroleum contact exists. However, NBR has limited ozone and weather resistance, so exposed outdoor use needs careful review.16
HNBR offers better heat aging, oil resistance, and mechanical performance than standard NBR. It is often considered for more demanding automotive sealing conditions, but the cost is higher.
FKM for demanding heat, oil, fuel, and chemical exposure
FKM is often selected when the seal faces high temperature, aggressive oils, fuels, or chemical exposure.17 It is used in higher-performance engine and fuel system applications. The cost is higher, so buyers should use it where the working condition really requires it.
Silicone for temperature flexibility
Silicone is useful where high and low temperature flexibility matters18. It is common in some gaskets, HVAC seals, EV-related seals, and specialty automotive applications. However, tear strength, abrasion, and fuel resistance should be checked before selection.
TPE for selected sealing applications
TPE can be useful for some automotive seals where processing efficiency, weight, appearance, or recyclability is important. However, buyers should compare its compression set, temperature range, and chemical resistance with thermoset rubber before choosing it for critical sealing.
Simple material selection table
| Application Condition | Recommended Material Direction |
|---|---|
| Outdoor weather sealing | EPDM |
| Door and window sealing | EPDM or sponge EPDM |
| Oil contact | NBR, HNBR, or FKM |
| Fuel contact | NBR, HNBR, or FKM, depending on fuel type |
| High temperature engine area | HNBR, FKM, or silicone, depending on exposure |
| Coolant and water sealing | EPDM, sometimes silicone |
| EV battery pack sealing | EPDM, silicone, or selected TPE depending on design |
| High flexibility at low temperature | Silicone or suitable EPDM compound |
| Cost-sensitive general sealing | EPDM or NBR if suitable |
Material selection should also consider Shore A hardness, compression set, tensile strength, elongation, tear resistance, aging performance, and ASTM D2000 callout when required. If the drawing contains an ASTM D2000 specification, the exact grade and suffix requirements should be confirmed before production.
Which Manufacturing Process Should You Choose?
The wrong process can increase tooling cost, create poor tolerance, or make the seal difficult to assemble.
Choose the manufacturing process based on seal shape, volume, tolerance, material, cross-section, assembly method, and whether the part needs molding, extrusion, cutting, or bonding.
Automotive rubber seals can be made by several processes. The right process depends on the part design and production requirement.
Main manufacturing processes for automotive seals
| Process | Best For | Advantages | Limitations |
|---|---|---|---|
| Compression molding | Gaskets, pads, molded seals, low to medium complexity parts | Practical tooling cost and stable production | Slower cycle time for some parts |
| Transfer molding | More detailed molded seals and rubber-metal parts | Better material flow and detail control | Higher tooling complexity |
| Injection molding | High-volume precision rubber seals | Good consistency and efficiency | Higher tooling investment |
| Extrusion | Door seals, window seals, profiles, hoses, strips | Continuous production and long profiles | Cross-section must suit extrusion |
| Die cutting | Flat gaskets, washers, pads | Fast for simple flat parts | Limited 3D shape capability |
| Rubber-metal bonding | Bushings, mounts, bonded seals | Strong structure for load and vibration | Requires surface treatment and bonding control |
| Splicing and corner molding | Frames, door seals, window seals | Supports closed-loop or complex assemblies | Joint strength and appearance need control |
Molded seals
Molded automotive seals are suitable for complex 3D shapes, precision gaskets, grommets, plugs, boots, and special sealing parts.19 Mold design affects flash, parting line, shrinkage, tolerance, and production efficiency.
For molded seals, I usually check whether the part has undercuts, thin walls, sharp corners, or difficult demolding areas20. These details affect tooling cost and sample risk.
Extruded seals
Extruded rubber seals are common for automotive doors, windows, trunks, HVAC ducts, and long sealing profiles. EPDM is widely used for extruded weatherstrips. Extruded seals may be solid rubber, sponge rubber, co-extruded rubber, or reinforced with metal or carrier materials.
For extrusion, the cross-section design is critical. Wall thickness, hollow bulb size, surface finish, and compression force all affect sealing performance.
Die-cut seals
Die cutting works well for flat rubber gaskets, washers, pads, and simple sheet-based parts. It can reduce tooling cost for simple shapes and small to medium batch orders. However, it cannot produce complex 3D sealing geometry.
Rubber-metal bonded seals
Some automotive parts need rubber bonded to metal inserts. These parts are used where sealing, vibration control, or structural support is required. The process requires metal surface treatment, adhesive control, molding control, and bonding strength inspection.
The manufacturing process should be decided before tooling quotation. A seal that looks simple in a photo may need a more complex process after reviewing the drawing and assembly condition.
What Quality Tests Should Be Required?
Without clear testing, two rubber seals may look the same but perform very differently after aging or compression.
Automotive rubber seal quality tests should cover dimensions, hardness, compression set, tensile properties, aging, fluid resistance, ozone resistance, and application-specific performance.
Quality testing should match the seal’s application. A door seal does not need the same test focus as an engine oil seal. A coolant gasket does not need the same inspection plan as a cable grommet.
Common quality tests for automotive rubber seals
| Test Item | Purpose | Typical Use |
|---|---|---|
| Dimension inspection | Confirms fit and tolerance | All custom seals |
| Shore A hardness | Confirms material flexibility | Molded and extruded seals |
| Compression set | Checks sealing recovery | Gaskets, O-rings, door seals |
| Tensile strength | Checks basic rubber strength | Material verification |
| Elongation | Checks flexibility | Seals, boots, grommets |
| Tear resistance | Checks resistance to tearing | Boots, thin sections, assembly parts |
| Heat aging | Checks long-term heat effect | Engine, HVAC, EV, body seals |
| Oil resistance | Checks swelling or property change | NBR, HNBR, FKM seals |
| Fuel resistance | Checks fuel compatibility | Fuel system seals |
| Coolant resistance | Checks coolant exposure | Cooling system seals |
| Ozone resistance | Checks surface cracking risk | Exterior EPDM seals |
| Visual inspection | Checks flash, cracks, bubbles, surface defects | All rubber parts |
| Fit test | Confirms assembly performance | OEM and custom seals |
Automotive documents buyers may request
Depending on the buyer and project, automotive quality documentation may include:
- Material test report
- Dimension inspection report
- Certificate of compliance
- PPAP documents, needs verification
- IMDS submission, needs verification
- Control plan, needs verification
- FMEA, needs verification
- Appearance inspection standard
- Sample approval report
- Batch traceability record
Not every project needs full automotive documentation. A replacement part, distributor order, or non-critical seal may need simpler inspection. An OEM production seal may require stricter documentation and approval steps.
From a supplier’s view, the buyer should tell us the required documents at the RFQ stage. If documentation is added after quotation, cost and lead time may change.
What Affects Tooling Cost, MOQ, and Lead Time?
Buyers often compare unit prices first, but tooling, MOQ, and lead time can decide whether a project runs smoothly.
Tooling cost, MOQ, and lead time depend on part size, design complexity, material, tolerance, mold cavities, process, volume, testing, and approval requirements.
For custom automotive rubber seals, the cost is not only the rubber material. Tooling design, process selection, quality control, production efficiency, and sample approval all affect the final price.
Tooling cost factors
| Factor | How It Affects Tooling Cost |
|---|---|
| Part size | Larger parts usually need larger molds or dies |
| Seal geometry | Complex shapes need more detailed tooling |
| Undercuts | May require special mold structure |
| Tolerance | Tight tolerance needs better tooling and process control |
| Cavity number | More cavities increase tooling cost but reduce unit cost |
| Material | Some materials are harder to process |
| Surface finish | Appearance requirements may increase mold work |
| Inserts or bonding | Metal or plastic inserts add tooling and process steps |
| Prototype need | Soft tooling or trial tooling may be needed |
| Approval documents | Documentation work may add project cost |
MOQ factors
MOQ is affected by raw material minimums, mold setup time, production efficiency, color, compound, and part size. A common black EPDM seal may have a lower MOQ than a special FKM seal with a unique compound. A large extrusion order may require enough length to make setup waste acceptable.
Buyers should share annual volume and first order quantity. This helps the supplier recommend a practical mold cavity number and production plan.
Lead time factors
Lead time usually includes drawing review, tooling design, tool production, material preparation, sample molding or extrusion, inspection, sample shipment, buyer approval, and mass production.
| Stage | What Happens |
|---|---|
| Drawing review | Supplier checks structure, tolerance, material, and risk |
| Tooling design | Mold or die is designed for production |
| Tooling production | Mold or extrusion die is made |
| Sample production | First samples are produced for review |
| Sample inspection | Dimensions, hardness, and appearance are checked |
| Buyer approval | Buyer tests fit and performance |
| Mass production | Approved parts enter batch production |
| Final inspection | Parts are checked before shipment |
A realistic lead time depends on part complexity and documentation requirements. If the seal needs special testing, PPAP, or material approval, buyers should include this in the project schedule from the beginning.
How Can You Prevent Automotive Seal Failure?
Many seal failures are preventable when buyers and suppliers check application risks before production starts.
You can prevent automotive seal failure by matching material, geometry, hardness, compression, tolerance, process, testing, and installation conditions to the real application.
Automotive seal failure often comes from one of several causes: wrong material, poor compression design, bad tolerance, chemical incompatibility, heat aging, ozone cracking, poor installation, weak bonding, or uncontrolled production quality.
Common failure modes and prevention methods
| Failure Mode | Possible Cause | Prevention Method |
|---|---|---|
| Leakage | Poor compression, wrong geometry, bad tolerance | Review groove, squeeze, dimensions, and material recovery |
| Swelling | Oil, fuel, or chemical incompatibility | Select NBR, HNBR, FKM, or other suitable material |
| Cracking | Ozone, heat aging, wrong material | Use weather-resistant or heat-resistant compound |
| Permanent deformation | High compression set | Choose low compression set material and correct compression |
| Hardening | Heat, aging, chemical exposure | Review temperature and aging requirement |
| Softening | Fluid attack or wrong compound | Check fluid compatibility |
| Tearing during assembly | Low tear strength or sharp installation edge | Improve material or modify design |
| Poor fit | Wrong tolerance or shrinkage control | Confirm drawing, mold design, and inspection plan |
| Bonding failure | Poor metal treatment or adhesive process | Control surface treatment, adhesive, and molding |
| Noise or vibration | Wrong hardness or contact design | Adjust Shore A hardness and seal geometry |
Start with the real working condition
A seal should not be designed only from appearance. Buyers should confirm what the seal contacts, how much it compresses, how often it moves, and what temperature it sees. This is especially important for engine, fuel, HVAC, cooling, chassis, and EV battery applications.
Control compression set
Compression set is one of the most important factors for long-term sealing. If a rubber seal loses its recovery, it may no longer maintain sealing force. This can cause air leakage, water leakage, oil leakage, or noise.
The correct compression set requirement depends on material, temperature, and application. For critical seals, buyers should define the test condition instead of only saying “good compression set.”
Confirm tolerance and installation
Even the right material can fail if the part does not fit. Rubber shrinkage, mold design, extrusion variation, cutting length, and assembly pressure all affect final performance. This is why samples should be tested in the real assembly when possible.
Use a practical approval workflow
For OEM applications, I suggest this workflow:
- Confirm application and failure risk.
- Review drawing, sample, and working condition.
- Select material and Shore A hardness.
- Confirm process and tooling design.
- Produce samples.
- Inspect dimensions, hardness, appearance, and key properties.
- Test sample fit and sealing performance.
- Approve mass production.
- Control batch inspection and packaging.
Julong Rubber supports custom automotive rubber seals, rubber gaskets, O-rings, rubber hoses, rubber wheels, and custom molded rubber parts for B2B OEM and wholesale projects. Buyers can send drawings, samples, or technical requirements to info@rubberandseal.com for material selection and quotation support.
Conclusion
A reliable OEM automotive rubber seal starts with clear engineering details, correct material choice, suitable process, practical testing, and stable production control.
-
"Role of Rubber Seals in the Automotive Industry", https://www.aqemachinery.com/resources/driving-efficiency-and-reliability-role-of-rubber-seals-in-the-automotive-industry.html. Research indicates that automotive rubber seals play a vital role in maintaining vehicle integrity and performance, particularly in preventing leaks and ensuring proper functioning of various systems. Evidence role: expert_consensus; source type: paper. Supports: The function of automotive rubber seals is critical for vehicle performance and safety.. Scope note: The evidence may not directly quantify the impact on safety but provides a consensus on their importance. ↩
-
"Role of Rubber Seals in the Automotive Industry", https://www.aqemachinery.com/resources/driving-efficiency-and-reliability-role-of-rubber-seals-in-the-automotive-industry.html. Studies show that automotive rubber seals are designed to effectively block environmental elements, contributing to vehicle durability and comfort. Evidence role: mechanism; source type: paper. Supports: Automotive rubber seals block various elements such as water, dust, air, oil, coolant, fuel vapor, noise, and vibration.. Scope note: The studies may focus on specific types of seals or conditions, limiting generalizability. ↩
-
"[PDF] Sealing Performance of a Mobile AC Compressor Shaft Seal", https://docs.lib.purdue.edu/cgi/viewcontent.cgi?article=2839&context=icec. Research papers and articles provide insights into the role of HVAC seals in automotive systems, emphasizing their importance in air sealing and condensation control. Evidence role: general_support; source type: paper. Supports: HVAC seals are used in air ducts, evaporator, and blower units for air sealing and condensation control.. ↩
-
"Pack Seal (Gasketing) Applications for EV Battery Manufacturing", https://www.graco.com/us/en/in-plant-manufacturing/solutions/automotive/ev-battery/pack-seal.html. Research indicates that battery pack seals are critical for maintaining the integrity and performance of electric vehicle battery systems by preventing environmental ingress and managing thermal conditions. Evidence role: general_support; source type: paper. Supports: Battery pack seals are used in electric vehicle (EV) battery housing to provide water, dust, and thermal system protection.. ↩
-
"How Rubber Seals Play a Critical Role in the Automotive Industry", https://www.gbrubberproduct.com/how-rubber-seals-play-a-critical-role-in-the-automotive-industry/. Educational resources highlight that proper fitting of seals is crucial for maintaining production efficiency and quality in OEM automotive applications. Evidence role: case_reference; source type: education. Supports: For OEM applications, a seal must fit the assembly and support repeatable production.. Scope note: The examples may not cover all types of seals or production scenarios. ↩
-
"Analysis of O-Ring Seal Failure under Static Conditions and ... - PMC", https://pmc.ncbi.nlm.nih.gov/articles/PMC6723462/. Research has documented instances where improper seal fitting resulted in assembly failures and increased warranty claims in automotive applications. Evidence role: case_reference; source type: paper. Supports: Using standard seals instead of custom seals can lead to significant quality and assembly issues.. Scope note: The cases may be anecdotal and not representative of all automotive scenarios. ↩
-
"Gasket - Wikipedia", https://en.wikipedia.org/wiki/Gasket. Research indicates that standard O-rings and gaskets are effective for basic sealing applications in automotive contexts, particularly where design parameters allow for their use. Evidence role: expert_consensus; source type: paper. Supports: A standard O-ring or gasket may work for simple sealing points.. ↩
-
"Groove Design: O-Ring Seals - Minnesota Rubber & Plastics", https://www.mnrubber.com/tools-resources/design-guide/rubber-standard-parts/groove-design-o-ring-seals/. Research indicates that custom seals are essential for ensuring proper fit and function in automotive applications, particularly when standard options are inadequate. Evidence role: expert_consensus; source type: paper. Supports: Custom automotive rubber seals are necessary when standard seals cannot meet specific requirements such as fitting unique grooves or housings.. ↩
-
"Seal swelling - Synthetic oil vs. Conventional", https://bobistheoilguy.com/forums/threads/seal-swelling-synthetic-oil-vs-conventional.305661/. Research indicates that the choice of material for engine gaskets is critical, as improper materials can lead to swelling and failure when exposed to oil. Evidence role: mechanism; source type: paper. Supports: An engine gasket made from the wrong material may swell in oil.. Scope note: The evidence may vary based on specific materials and conditions. ↩
-
"Where to Use Extruded Rubber Seals: Applications & Benefits", https://www.repurvis.com/articles/where-use-extruded-rubber-seals-applications-benefits. Research indicates that the application location significantly influences the performance and durability of automotive rubber seals in various systems. Evidence role: expert_consensus; source type: paper. Supports: The application location of automotive rubber seals is critical, as they can be used in various systems such as body, engine, HVAC, fuel, chassis, or EV systems.. ↩
-
"[PDF] Parker O-ring Handbook", https://wp.optics.arizona.edu/optomech/wp-content/uploads/sites/53/2016/10/Parker-O-ring-handbook.pdf. Research indicates that the design parameters of O-rings and gaskets, including groove size and compression set, significantly influence their sealing effectiveness in automotive contexts. Evidence role: expert_consensus; source type: paper. Supports: The design and specifications of O-rings and gaskets are critical for their performance in automotive applications.. ↩
-
"Emerging Environmental Impacts of Tire Wear Particles and Their ...", https://assessments.epa.gov/risk/document/&deid%3D361070. Research indicates that environmental factors significantly influence the performance and longevity of automotive rubber seals, necessitating careful material selection based on exposure conditions. Evidence role: expert_consensus; source type: paper. Supports: The exposure of automotive seals to various environmental factors such as oil, fuel, coolant, water, dust, ozone, or sunlight is critical in determining the appropriate material and design for the seal.. Scope note: The evidence may vary based on specific seal applications and materials. ↩
-
"International Material Data System - Wikipedia", https://en.wikipedia.org/wiki/International_Material_Data_System. Research indicates that documentation like PPAP and IMDS is critical for maintaining quality standards in automotive manufacturing processes. Evidence role: expert_consensus; source type: paper. Supports: Automotive rubber seals may require specific documentation such as PPAP, IMDS, and inspection reports to ensure quality and compliance in manufacturing.. ↩
-
"O-ring - Wikipedia", https://en.wikipedia.org/wiki/O-ring. Research papers and reviews often discuss the specific applications and properties of EPDM, NBR, HNBR, FKM, silicone, and TPE in automotive contexts, confirming their utility in various sealing applications. Evidence role: expert_consensus; source type: paper. Supports: EPDM, NBR, HNBR, FKM, silicone, and TPE all have useful places in automotive applications.. ↩
-
"EPDM Gaskets | Ozone Resistant Rubber", https://gasketsales.com/epdm-gaskets/. Research indicates that EPDM's resistance to ozone, sunlight, and water makes it a preferred material for automotive body seals, enhancing durability and performance. Evidence role: expert_consensus; source type: paper. Supports: EPDM is widely used in automotive body seals because it resists ozone, sunlight, water, and aging.. ↩
-
"Materials ozone resistance chart - Oxidation Technologies", https://www.oxidationtech.com/blog/materials-ozone-resistance-chart/. Research indicates that NBR exhibits reduced performance in outdoor environments due to its susceptibility to ozone degradation and weathering effects. Evidence role: expert_consensus; source type: paper. Supports: NBR has limited ozone and weather resistance, so exposed outdoor use needs careful review.. Scope note: The evidence may not cover all specific outdoor conditions or applications. ↩
-
"FKM Fluoroelastomer Rubber | Grades, Properties & Applications", https://waynerubber.com/materials/fkm-rubber/. Research indicates that FKM materials are preferred in automotive applications due to their superior resistance to heat and aggressive chemicals, making them suitable for demanding sealing environments. Evidence role: expert_consensus; source type: paper. Supports: FKM is often selected when the seal faces high temperature, aggressive oils, fuels, or chemical exposure.. ↩
-
"Silicone rubber - Wikipedia", https://en.wikipedia.org/wiki/Silicone_rubber. Research indicates that silicone rubber exhibits excellent flexibility across a wide temperature range, making it suitable for various automotive sealing applications. Evidence role: expert_consensus; source type: paper. Supports: Silicone is useful where high and low temperature flexibility matters.. ↩
-
"Understanding Molded Gaskets: Their Purpose and Applications", https://www.midwestgasket.com/custom-gaskets-news/understanding-molded-gaskets-their-purpose-and-applications. Research indicates that molded seals are particularly effective for intricate designs and high-precision applications in automotive engineering. Evidence role: expert_consensus; source type: paper. Supports: Molded automotive seals are suitable for complex 3D shapes, precision gaskets, grommets, plugs, boots, and special sealing parts.. ↩
-
"In-Mold Assembly Process Boosts Automotive Seal - Design News", https://www.designnews.com/assembly/in-mold-assembly-process-boosts-automotive-seal. Research indicates that mold design significantly influences the production quality and efficiency of automotive seals, particularly in terms of flash, parting line, and tolerance management. Evidence role: mechanism; source type: paper. Supports: Mold design affects flash, parting line, shrinkage, tolerance, and production efficiency in automotive seals.. ↩
