How Can You Tell If Rubber Is Natural or Synthetic?

Wrong material identification can cause swelling, cracking, or early failure. Natural and synthetic rubber may look similar, but they perform very differently.

You can tell if rubber is natural or synthetic by using reliable tests such as FTIR analysis, TGA, DSC, density testing, chemical resistance checks, and supplier material documentation. Visual appearance, smell, or touch alone cannot prove the rubber type accurately.

In my factory work, I never identify rubber only by color or feel. I combine application clues, physical checks, laboratory testing, and supplier documentation.

Can You Tell Natural Rubber and Synthetic Rubber by Looking at It?

Many rubber parts are black, flexible, and similar in shape. Appearance can give clues, but it cannot confirm the polymer.

You usually cannot tell natural rubber from synthetic rubber by appearance alone. Color, surface finish, flexibility, and smell may provide clues, but reliable identification needs testing or material documentation.

Natural rubber and synthetic rubber can look almost the same after compounding. Most industrial rubber parts contain carbon black, fillers, oils, curing agents, and additives¹. These ingredients can make different rubber materials appear very similar. A black EPDM gasket, black NBR seal, black natural rubber pad, and black SBR part may look nearly identical to a buyer.

This is why visual inspection is not enough². A rubber part may feel soft, elastic, or tough, but that does not prove whether it is natural rubber or synthetic rubber. Hardness also does not identify the material. EPDM, NBR, silicone, FKM, neoprene, natural rubber, and SBR can all be made in different Shore A hardness ranges.

What Visual Inspection Can and Cannot Tell You

Check Item	Can It Help?	Limitation
Color	Sometimes	Most rubber parts are black
Surface finish	Sometimes	Mold or extrusion process affects finish
Flexibility	Limited	Many rubbers can be compounded soft or hard
Smell	Limited	Additives and oils change odor3
Hardness	No material proof	Many polymers share similar hardness4
Rebound	Gives clues	Does not confirm polymer type
Marking or label	Useful if accurate	Must be verified by supplier records

Natural rubber often has high rebound and strong elasticity⁵. It may feel lively when stretched or compressed. Some synthetic rubbers may feel less elastic or more resistant to deformation. However, this is only a clue. A well-designed synthetic rubber compound can also have good elasticity. A low-quality natural rubber compound may feel weak if it contains too much filler.

For B2B buyers, the risk of guessing is high. If a buyer assumes a gasket is natural rubber when it is actually EPDM, the replacement material may fail differently. If a buyer assumes a seal is NBR when it is actually natural rubber, it may fail quickly in oil. If a supplier copies a sample only by appearance, the new part may look correct but perform poorly.

I often see this problem when buyers send old rubber samples without drawings or material records. The sample may already be aged, hardened, swollen, or contaminated. Its current appearance may not represent the original material. In this situation, I recommend using lab testing or reviewing the real application environment before choosing a replacement compound.

The practical answer is simple: appearance can support the first discussion, but it should not be used as final proof⁶. For important rubber seals, gaskets, O-rings, wheels, pads, hoses, and molded parts, material identification should be based on testing and documentation.

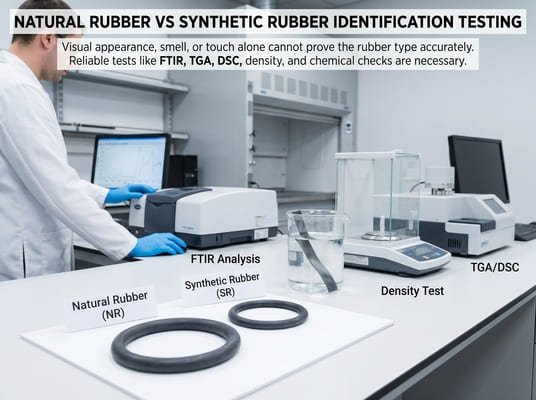

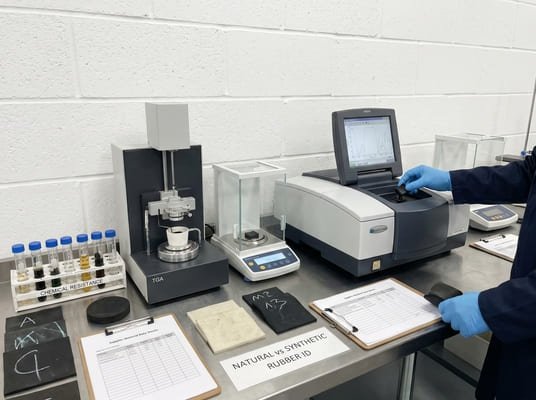

What Are the Most Reliable Ways to Identify Rubber Type?

Guessing material from touch is risky. Reliable identification requires chemical, thermal, physical, or documented evidence.

The most reliable ways to identify rubber type are FTIR analysis, TGA, DSC, density testing, chemical resistance testing, burn residue analysis by professionals, and supplier material certificates or test reports.

The best way to identify rubber depends on the accuracy needed. For a non-critical rubber pad, a basic material review may be enough. For a sealing part used in oil, heat, chemicals, or automotive equipment, stronger evidence is needed.

FTIR analysis is one of the most useful methods⁷ for identifying rubber polymer families. It reads infrared absorption patterns and compares them with known polymer structures. It can help distinguish natural rubber, EPDM, NBR, silicone, FKM, neoprene, and other materials.

TGA, or thermogravimetric analysis⁸, measures weight loss as the rubber is heated. It can show polymer content, filler content, carbon black, plasticizer, and ash content. DSC, or differential scanning calorimetry, can help evaluate thermal transitions. These tests are more technical, but they are useful when material verification is important.

Reliable Rubber Identification Methods

Method	What It Helps Identify	Practical Use
FTIR	Polymer family	Best first lab method for material ID
TGA	Polymer, filler, ash, volatile content	Useful for compound comparison
DSC	Thermal transitions	Supports material characterization
Density test	Specific gravity	Good for batch comparison
Hardness test	Shore A or IRHD	Useful but not enough alone
Swelling test	Compatibility clues	Helps compare oil or solvent response
Tensile test	Mechanical strength	Useful for performance validation
Supplier documents	Declared material and batch	Important for purchasing control

A single test may not answer everything. FTIR can identify the base polymer, but it may not fully reveal the whole formulation⁹. TGA can show filler and ash content, but it may not replace chemical compatibility testing. Hardness can show indentation resistance, but it cannot prove material type. This is why critical projects may need a combination of tests.

For example, if a buyer wants to know whether a black gasket is EPDM or NBR, FTIR can help identify the polymer family¹⁰. If the buyer also wants to know whether it can resist oil, oil immersion testing may be needed. If the buyer wants to confirm long-term sealing performance, compression set testing should be considered¹¹.

My Practical Testing Approach

For a replacement rubber part, I usually follow this logic:

1. Check the application environment.
2. Review any drawings or old documents.
3. Inspect the sample condition.
4. Use FTIR if material identity is uncertain.
5. Check hardness and dimensions.
6. Compare chemical exposure with material resistance.
7. Make prototype samples if needed.
8. Test in the real assembly before mass production.

This process avoids blind copying. A copied rubber part should not only match the old part’s shape. It should match the original performance requirement. That is where professional rubber material identification creates real value.

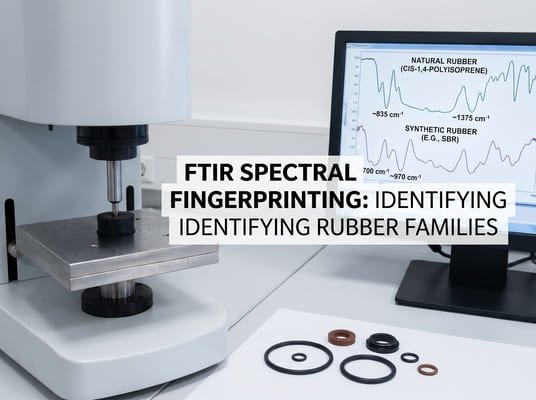

How Does FTIR Testing Identify Natural or Synthetic Rubber?

Many buyers want a clear answer from a small rubber sample. FTIR is often the fastest serious test for polymer identification.

FTIR testing identifies rubber by reading the infrared absorption pattern of the polymer. Natural rubber and synthetic rubbers show different spectral fingerprints, which helps laboratories identify the likely rubber family.

FTIR stands for Fourier Transform Infrared Spectroscopy¹². It is widely used for material identification because different polymers absorb infrared energy in different ways. The result is a spectrum. A trained technician compares that spectrum with known reference spectra to identify the likely polymer family.

For rubber parts, FTIR can help distinguish between natural rubber, SBR, EPDM, NBR, silicone, FKM, neoprene, and other rubber families. It is especially useful when the buyer has only a sample and no material records.

Why FTIR Is Useful

Benefit	Practical Value
Fast identification	Helps start material selection quickly
Small sample requirement	Useful when only a small part is available
Polymer fingerprint	Helps identify material family
Good for unknown samples	Useful for reverse engineering
Supports supplier verification	Helps check declared material
Helps compare old and new parts	Useful for replacement projects

FTIR is helpful, but buyers should understand its limits. Rubber compounds are complex. They contain fillers, plasticizers, antioxidants, processing aids, curing systems, and sometimes polymer blends. Carbon black can make analysis more difficult. Surface contamination or aging can also affect results. In some cases, the sample may need special preparation.

FTIR may identify the major polymer but not the exact formulation. For example, it may show that the part is EPDM, but it may not fully reveal the grade, filler content, curing system, hardness, compression set, or aging resistance. Two EPDM compounds can have different performance even if both are correctly identified as EPDM.

FTIR vs. Other Tests

Question	Best Method
What is the polymer family?	FTIR
How much filler is in the compound?13	TGA
What is the hardness?	Shore A or IRHD
Will it seal under compression?	Compression set and fit test
Will it resist oil?	Oil immersion test
Will it resist ozone outdoors?	Ozone aging test14
Does it match the drawing?	Dimensional inspection15

If a buyer asks me to replace an unknown rubber gasket, FTIR is often a good first step. But I still ask where the gasket is used. If it works outdoors, EPDM may be needed even if the old sample is natural rubber. If it works in oil, NBR or FKM may be needed. If it works under heat, silicone or FKM may be better.

The goal is not only to identify the old material. The goal is to choose the right material for the current application. FTIR helps answer “what is it?” Engineering review answers “should we use it again?”

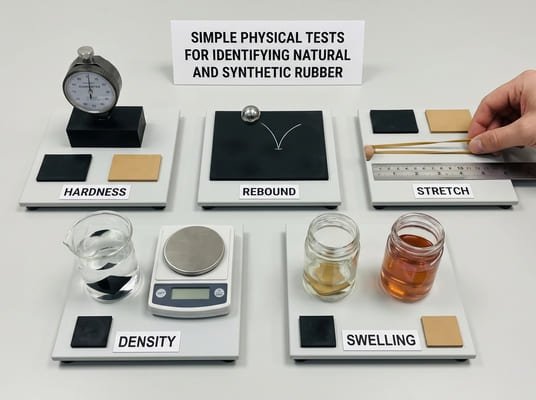

Can Simple Physical Tests Help Identify Rubber?

Simple tests can provide useful clues, but they cannot replace lab analysis. They are best used for screening, not final approval.

Simple physical tests such as hardness, rebound, stretch, density, and swelling can help compare rubber samples, but they cannot reliably prove whether rubber is natural or synthetic.

Physical testing can be useful when buyers need a quick comparison. If you have an old sample and a new sample, you can compare hardness, density, elasticity, rebound, surface condition, and swelling behavior. These tests can show whether the samples are similar. However, they do not always prove the rubber family.

Natural rubber usually has excellent elasticity, tensile strength, tear resistance, and rebound¹⁶. It may stretch and recover better than many synthetic rubbers. But some synthetic rubbers can be compounded to behave similarly. Also, aging changes rubber. An old natural rubber sample may become hard and cracked. An old NBR seal may swell after oil exposure. A used EPDM gasket may flatten after compression. These changes can mislead physical inspection.

Useful Physical Screening Tests

Test	What It Shows	Limitation
Hardness	Softness or firmness	Does not identify polymer
Rebound	Elastic recovery	Only gives clues
Stretch	Flexibility and elongation	Aged samples may mislead
Density	Compound consistency	Fillers affect result
Swelling in oil	Oil resistance clues	Must be controlled carefully
Compression recovery	Seal behavior	Does not prove material type
Visual aging	Cracks or swelling	Shows failure, not full identity

I do not recommend uncontrolled burn testing by buyers. Burning rubber can release harmful fumes and unsafe residues. It can also create misleading results because additives, fillers, and contamination affect the smell and residue. If thermal analysis is needed, it should be done by a qualified laboratory using controlled equipment.

Chemical swelling tests can be useful, but they must be handled carefully¹⁷. For example, if a rubber sample swells strongly in petroleum oil, it may suggest poor oil resistance. That could point away from NBR or FKM and toward EPDM, natural rubber, or another non-oil-resistant compound. But this is not final proof. Test conditions, oil type, temperature, and exposure time matter.

When Physical Tests Are Helpful

Physical tests are useful when:

✅ Comparing approved sample and production batch
✅ Checking whether hardness changed after aging
✅ Screening unknown samples before lab testing
✅ Evaluating compression recovery
✅ Comparing oil swelling behavior
✅ Supporting incoming inspection

For B2B rubber purchasing, physical tests should be part of a larger quality plan. A good inspection package may include hardness, dimensions, appearance, material certificate, and functional testing. For high-risk parts, add FTIR, compression set, aging, or chemical compatibility testing.

The most important point is this: simple tests help you ask better questions¹⁸. They do not replace professional material identification.

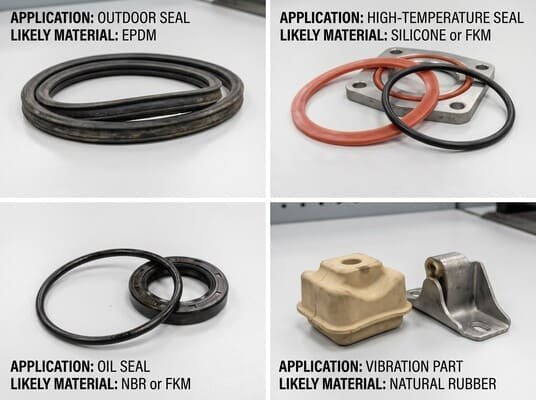

Can Application Clues Help Identify the Rubber Material?

The working environment often gives strong clues. Rubber materials are usually chosen because they solve a specific application risk.

Application clues can help narrow down the rubber type. Outdoor seals are often EPDM, oil seals are often NBR or FKM, high-temperature seals are often silicone or FKM, and vibration parts may use natural rubber.

Application clues are very useful in material identification.¹⁹ Rubber is usually chosen for a reason. If you know where the part was used, you can often narrow down the likely material family.

For example, automotive door seals, HVAC gaskets, outdoor enclosure seals, and weatherstrips are often EPDM because EPDM resists ozone, UV, water, and weathering. Oil seals, hydraulic gaskets, and grease-contact parts are often NBR, HNBR, or FKM because these materials resist petroleum oils. High-temperature gaskets may be silicone or FKM²⁰. Vibration mounts and shock buffers may use natural rubber because natural rubber has excellent rebound and fatigue resistance.

Application-Based Material Clues

Application	Likely Material Candidates	Reason
Outdoor seal	EPDM, silicone	Ozone and UV resistance
Oil seal	NBR, HNBR, FKM	Petroleum oil resistance
Fuel seal	FKM, selected NBR	Fuel resistance
High-temperature gasket	Silicone, FKM	Heat stability
Vibration mount	Natural rubber, EPDM	Elasticity and damping
Rubber wheel	Natural rubber, polyurethane	Rebound and wear
HVAC gasket	EPDM	Weather and water resistance
Chemical seal	FKM, EPDM, specialty rubber	Depends on chemical
Food equipment seal	Silicone, EPDM	Depends on compliance and media
General low-cost pad	SBR, natural rubber	Cost and mechanical use

Application clues are not final proof, but they are valuable. If a gasket is used outdoors and has survived sunlight for years, EPDM is more likely than natural rubber. If a seal works in hydraulic oil, NBR, HNBR, or FKM is more likely. If a part is clear, white, or red and used near high heat, silicone may be possible. But these are only clues.

The part history also matters. Was the part original from an OEM? Was it replaced before? Did it fail because of swelling, cracking, hardening, or tearing? A failed sample can reveal the wrong material choice. For example, if an EPDM-looking gasket is swollen in oil, it may have been the wrong material for the application.

Failure Clues

Failure Symptom	Possible Material Clue
Swelling in oil	Material may not be oil-resistant
Cracking outdoors	Material may lack ozone or UV resistance
Hardening under heat	Material may not resist temperature
Tearing during assembly	Tear strength or design may be weak
Flattening after compression	Compression set may be poor
Sticky surface	Chemical attack or aging may occur

When buyers send me old samples, I always ask for application photos or installation information. A sample alone is useful, but the working environment tells the real story. The goal is not only to identify what the old rubber was. The goal is to choose a material that performs better in the actual application.

Why Is Supplier Documentation Important for Rubber Identification?

Testing is useful, but purchasing control also depends on documents. A material should be traceable before production and shipment.

Supplier documentation is important because it records the declared material, hardness, batch number, test data, compliance status, and production traceability. It helps buyers verify material identity and reduce sourcing risk.

Documentation is one of the strongest tools for preventing material confusion. In professional rubber sourcing, buyers should not rely only on supplier statements such as “this is rubber” or “this is high-quality material.” They should request clear documents.

For custom rubber parts, the most useful documents include the approved drawing, material specification, Certificate of Conformance, material test report, inspection report, and batch traceability record. For regulated or audited applications, compliance certificates may also be required.

Documents That Help Identify Rubber

Document	What It Proves
Approved drawing	Material, hardness, dimensions, revision
Material specification	Required rubber family and performance
Certificate of Conformance	Supplier declares order compliance
Material Test Report	Shows physical test data
FTIR report	Supports polymer identification
Batch inspection report	Confirms production measurements
Compliance certificate	Supports RoHS, REACH, food, or other needs
Batch traceability record	Links material lot to finished parts

A material test report may show hardness, tensile strength, elongation, density, compression set, aging data, oil immersion, or ozone resistance. These properties help confirm whether the material matches the requirement. For example, an EPDM outdoor gasket may need ozone resistance and compression set data. An NBR oil seal may need oil immersion data. A silicone high-temperature gasket may need heat aging data.

Supplier documentation also helps with repeat orders. A sample may be approved, but mass production must match that sample. Without material records and batch traceability, it becomes difficult to control repeat quality. If a failure occurs later, documents help identify which batch, compound, and production date were involved.

How Should Buyers Confirm Rubber Type Before Mass Production?

Material confirmation should happen before tooling and bulk production. Late discovery creates cost, delay, and quality risk.

Buyers should confirm rubber type before mass production by reviewing drawings, supplier documents, material test reports, FTIR results when needed, sample performance, and real application testing.

For custom rubber parts, material confirmation should be part of the development process. It should not happen after the shipment arrives. If the wrong rubber material is discovered after tooling or mass production, the cost becomes much higher.

The first step is to define the required material on the drawing. If the drawing only says “rubber,” the supplier may choose different materials based on price, availability, or assumptions. A better drawing should say EPDM, NBR, silicone, FKM, natural rubber, SBR, polyurethane, or another specific material. It should also include hardness and tolerance.

Material Confirmation Process

Step	What to Check
Drawing review	Material, hardness, dimensions, tolerance
Application review	Heat, oil, ozone, UV, chemicals, pressure
Supplier recommendation	Polymer family and compound logic
Documentation review	Material data sheet and test report
Lab testing if needed	FTIR, TGA, DSC, or other analysis
Sample production	Prototype or first article sample
Assembly testing	Fit, compression, sealing, movement
Performance testing	Aging, oil, ozone, compression set if needed
Approval record	Signed sample approval before production

For critical parts, sample testing is very important. A material can be identified correctly but still fail if the design is wrong. For example, natural rubber may be correct for a vibration mount, but the geometry may create stress concentration. EPDM may be correct for an outdoor gasket, but the compression ratio may be wrong. NBR may be correct for oil, but the hardness may not match the groove.

What Buyers Should Send to the Supplier

✅ 2D or 3D drawing
✅ Old sample if available
✅ Application photos
✅ Working temperature
✅ Fluid or chemical exposure
✅ Indoor or outdoor use
✅ Compression or load condition
✅ Required hardness
✅ Expected quantity and MOQ
✅ Certification needs
✅ Testing requirements

If the material is unknown, buyers can send a sample for testing or request the supplier to recommend based on application. However, I do not recommend copying old rubber blindly. Sometimes the old part failed because the original material was wrong. Repeating the same material may repeat the same failure.

My practical advice is to use identification testing when needed, but always connect the result with application review. The best rubber is not always the same as the old rubber. The best rubber is the one that survives the real working condition.

Conclusion

You cannot reliably identify natural or synthetic rubber by appearance alone. Use lab testing, supplier documents, application clues, and sample validation to confirm the right material.

---
