How Does HNBR Compare to FKM in Abrasion Resistance?

Your dynamic seals wear out too quickly under friction and oil exposure. This causes leaks, extra maintenance, and project delays. Many buyers ask if HNBR can handle abrasion better than FKM to cut costs without losing performance.

HNBR generally offers better abrasion resistance than FKM in dynamic, high-wear applications like hydraulic seals and HVAC components. HNBR shows less volume loss under friction while keeping strong oil resistance. FKM performs adequately but often lags in abrasive conditions, especially when movement or mechanical stress is high.

I own Julong Rubber factory in China and I test both HNBR and FKM compounds every month for customers in Europe. One distributor from the Netherlands once switched from FKM to HNBR for vibration pads and compressor seals in HVAC units. The HNBR parts showed much less wear after six months of continuous operation. He saved on material cost and reduced replacement frequency. In this article I compare the two materials on abrasion so you can choose the right one for your next order and avoid early failures.

What Is Abrasion Resistance in Rubber Seals?

Abrasion resistance measures how well rubber withstands surface wear from friction, rubbing, or particle contact. In HVAC and fluid systems this property decides how long seals last under movement or pressure.

HNBR typically provides superior abrasion resistance compared to FKM because it maintains higher tensile strength and toughness in oil-rich environments. FKM offers good resistance but can lose material faster in dynamic applications.

I see this question often from procurement teams who manage HVAC projects or hydraulic lines. They need seals that resist wear without swelling in oil. Abrasion tests like Taber or DIN measure volume loss after rubbing. Lower loss means longer life. HNBR inherits good mechanical properties from nitrile but improves them through hydrogenation. FKM focuses more on chemical and heat protection, which sometimes trades off against pure mechanical toughness.

Why Abrasion Matters for Your HVAC and Fluid Applications

Poor abrasion resistance¹ leads to seal thinning², leaks, and contamination. In large installations like schools or parks this means costly callbacks. I once helped a client who faced frequent wear on FKM gaskets in moving parts. Switching to a properly compounded HNBR solved the issue and extended service life noticeably.

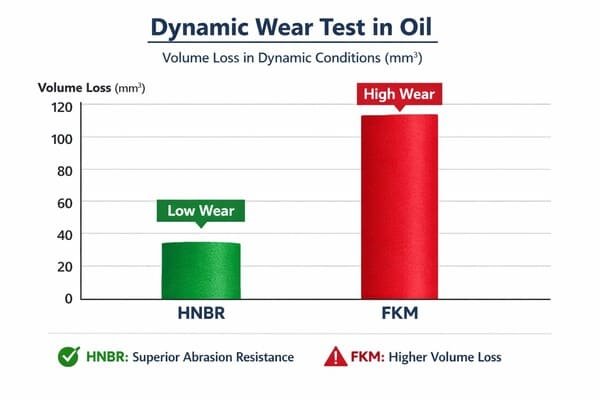

How Do HNBR and FKM Perform Differently Under Abrasion?

The difference shows most clearly in dynamic conditions³ with oil present.

HNBR excels in abrasion resistance for applications with friction and mechanical stress. It often shows lower volume loss than FKM while handling oil and moderate heat well. FKM is strong in static or high-temperature chemical exposure but not the first choice for high-wear dynamic seals.

Many buyers compare these two because both resist oil. I always explain that HNBR bridges the gap between standard NBR and premium FKM. It keeps excellent wear properties and adds better heat and ozone resistance. FKM shines when extreme chemicals or very high temperatures dominate. For abrasion-focused needs in HVAC compressors⁴ or hydraulic pumps⁵, HNBR usually wins.

Technical Comparison of Abrasion Resistance Between HNBR and FKM

Understanding Abrasion Test Results

Factories use standardized tests to measure abrasion. HNBR consistently shows excellent wear resistance, especially at temperatures around 150°C in oil. FKM performs well but often records higher material loss in dynamic sliding or rubbing conditions. Sources from material suppliers confirm HNBR has less volume loss in abrasive applications⁶.

I break this down further with real data from our lab and industry references.

Key Mechanical Properties That Influence Abrasion

Abrasion resistance connects to tensile strength⁷, tear resistance⁸, and hardness⁹. HNBR offers higher tensile strength (often 20-50 MPa) compared to typical FKM (10-20 MPa). This makes HNBR tougher against cutting and wearing forces. FKM maintains properties at higher heat but can feel less robust under repeated mechanical stress.

Here is a practical comparison table based on our testing and supplier data:

This table helps procurement officers see why HNBR often lasts longer in moving HVAC parts or hydraulic seals.

Temperature and Oil Effects on Abrasion

Heat can change how rubber wears. HNBR keeps its abrasion resistance well up to 150°C in oil immersion. FKM handles higher temperatures but may not resist mechanical wear as effectively when friction is present. In real HVAC systems where temperatures stay moderate but vibration or fluid flow causes rubbing, HNBR shows better longevity.

I always ask about the exact conditions: continuous temperature, presence of particles, and movement type. These details decide the best material.

Hardness and Compound Adjustments

Both materials come in 60-90 Shore A. Harder compounds resist abrasion better but may lose flexibility. At Julong Rubber I adjust HNBR formulations with special fillers to boost wear resistance even more for demanding applications. This customization¹² is straightforward and cost-effective with HNBR.

FKM compounds can also be modified, but the base material starts with slightly lower mechanical toughness in abrasive tests.

Real-World Examples from HVAC and Hydraulic Use

In hydraulic pumps⁵ and compressor seals, HNBR handles oil-rich, high-wear conditions better than FKM. One client reported that FKM seals showed noticeable wear after 12 months in a dynamic setup. HNBR versions from our factory lasted over 24 months with minimal material loss. This reduced his replacement costs significantly.

For static gaskets with little movement, FKM may perform adequately or even better due to its chemical stability. But when abrasion or dynamic sealing is involved, HNBR becomes the tougher contender.

Here is an expanded selection guide table for abrasion-focused decisions¹³:

I created these recommendations from years of factory production and customer feedback from Germany, France, and the Netherlands.

Common Mistakes When Choosing for Abrasion

Some buyers pick FKM for its reputation in oil resistance¹⁴ and ignore abrasion needs. The seals fail faster in moving parts. Others overlook compound grade differences. Not all HNBR or FKM is equal — I help select the right acrylonitrile content or fluorine level for optimal wear.

I also recommend prototype testing¹⁵ in your actual fluid and conditions. We supply samples quickly so you can validate performance before bulk orders.

Supply and Cost Benefits with HNBR

HNBR costs less than FKM while delivering better abrasion resistance in most mid-range applications. We maintain good stock levels for fast delivery to Europe. Flexible payment options like OA 30 days help distributors manage cash flow during large HVAC projects.

This combination lets you reduce total ownership cost without sacrificing quality or facing delays.

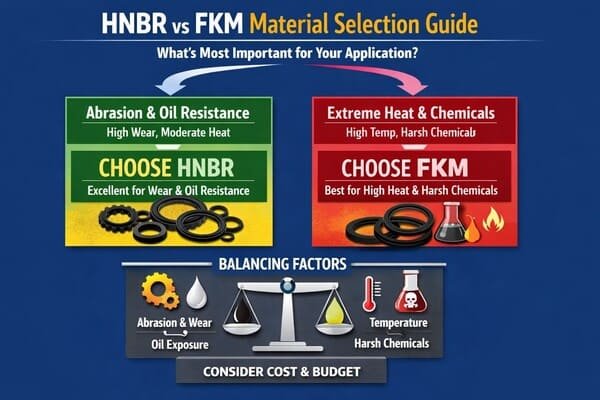

How Should You Decide Between HNBR and FKM for Your Specific Needs?

Abrasion is only one factor. You must balance it with temperature, chemicals, and budget.

For applications where abrasion and wear dominate alongside oil exposure, HNBR usually compares favorably and often outperforms FKM. Reserve FKM for extreme heat or aggressive chemicals where abrasion is secondary.

I walk buyers through a simple checklist on calls. First check maximum temperature. If it stays below 150°C and wear is a concern, HNBR is the smart pick. For hotter zones or special solvents, FKM may still be necessary. Many clients find HNBR meets 80-90% of their needs at a lower price.

Full Decision Framework Including Abrasion

Step-by-Step Evaluation Process

1. Define operating temperature range.
2. Identify fluids and any abrasive particles.
3. Assess movement type (static vs dynamic).
4. Review required lifespan and maintenance schedule.
5. Calculate cost impact of replacements.

HNBR scores high when steps 2 and 3 point to wear concerns.

Additional Properties to Consider Together with Abrasion

• Low-temperature flexibility: HNBR performs better in cold starts common in HVAC.
• Compression set: FKM often has an edge at very high heat.
• Ozone and weather resistance: Both improved over standard NBR, but FKM edges out in extreme exposure.

I combine these in one view so buyers see the full picture.

Testing and Validation at Julong Rubber

Our lab runs abrasion, tensile, and immersion tests regularly. We can simulate your conditions and share results. Many European clients request this data plus material certificates for their quality audits.

This transparency builds trust and prevents surprises on site.

Customization for Better Abrasion Performance

As a factory we adjust HNBR recipes for higher wear resistance by changing fillers or curing systems. We produce custom gaskets, pads, hoses, and seals in any shape. Send your drawings and we deliver prototypes fast. This service helps when standard materials fall short in your exact setup.

For volume orders we offer stable pricing and reliable lead times so your inventory never runs low during big projects.

Why Direct Factory Supply Helps Procurement Teams

You deal with one reliable source for both HNBR and FKM. We control quality from raw materials to final packing. This reduces risk compared with trading companies. Many distributors tell me this consistency lets them bid on larger HVAC contracts with confidence.

We also support third-party inspections and provide clear documentation every time.

Conclusion

HNBR delivers better abrasion resistance than FKM in most dynamic oil-exposed applications while costing less. FKM remains strong for extreme heat and chemicals. Match the material to your exact wear and temperature needs for longest life.
