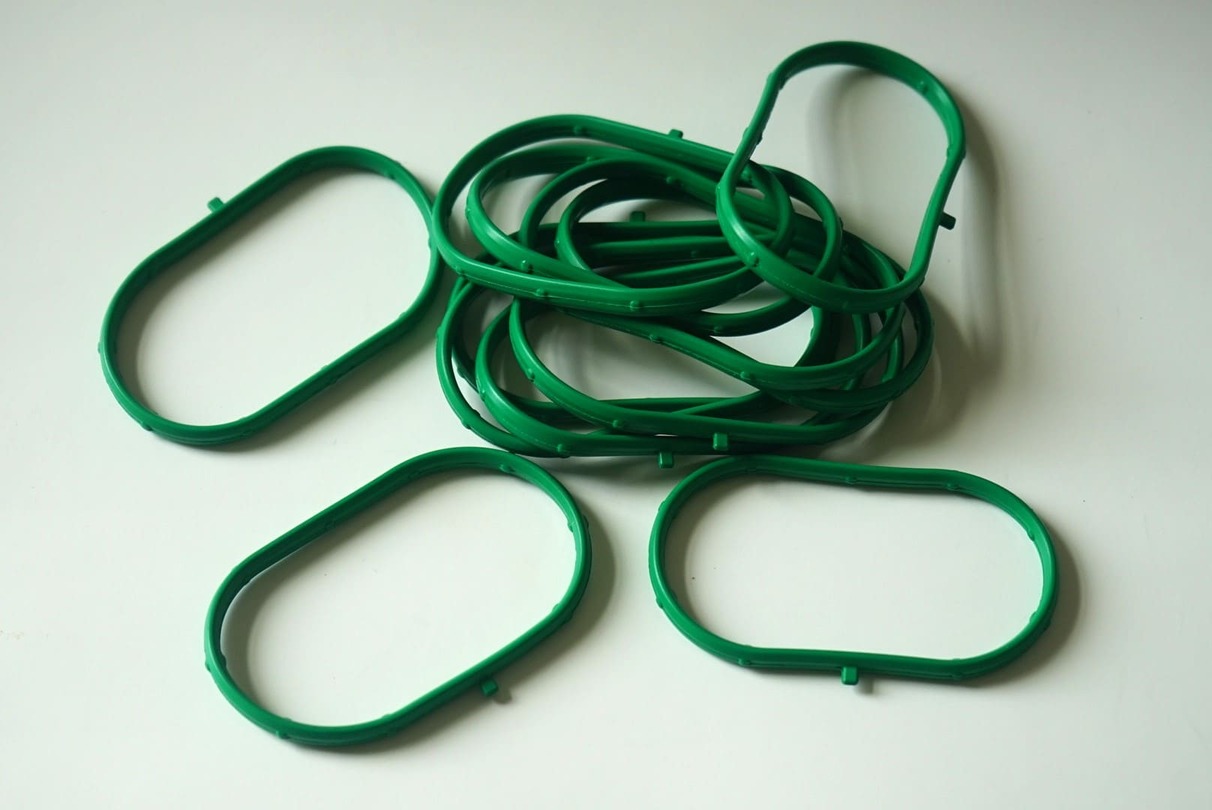

Cylinder Head Flange Sealing Ring

Essential for Engine Integrity and Performance

The cylinder head flange sealing ring plays a crucial role in the performance and longevity of an engine, especially in applications such as automobiles, industrial machinery, marine engines, and heavy-duty equipment. This sealing component is designed to create a tight, leak-proof seal between the cylinder head and the engine block, preventing the escape of gases, fluids, and pressure during engine operation. As a critical sealing element in an engine’s combustion chamber, it ensures optimal engine performance, reduces the risk of fluid contamination, and contributes to the overall reliability of the engine.

What is a Cylinder Head Flange Sealing Ring?

A cylinder head flange sealing ring is a specialized gasket or seal positioned between the cylinder head and the engine block. The primary function of this sealing ring is to create a barrier against leaks of engine fluids, such as coolant, oil, and combustion gases, which can compromise engine performance and cause significant damage. The sealing ring is typically made from high-performance sealing materials such as silicone, elastomers, or metal-based composites that can withstand extreme temperatures, pressure, and chemical exposure.

Key Functions of Cylinder Head Flange Sealing Rings

1. Prevent Fluid Leaks The primary function of the cylinder head flange sealing ring is to prevent the leakage of critical engine fluids such as coolant and engine oil. A compromised seal can result in coolant leakage, which may lead to overheating and possible engine damage, or oil leakage, which can affect lubrication and lead to increased wear of internal engine components.
2. Sealing Combustion Gases A cylinder head flange sealing ring ensures that combustion gases stay contained within the combustion chamber. These gases are under extreme pressure, and any leak can lead to a loss of power, reduced efficiency, and engine misfires. The sealing ring helps maintain proper compression and ignition cycles, ensuring optimal engine operation.
3. Pressure Containment During engine operation, the combustion chamber experiences high-pressure conditions. The sealing ring ensures that the pressure generated during the combustion process is effectively contained within the engine, which is vital for preventing blow-by, where gases escape past the seal, and for maintaining engine performance.
4. Preventing Fluid Contamination The sealing ring also ensures that engine fluids such as coolant and oil do not mix with each other or with combustion gases. This helps to preserve the purity of each fluid, preventing contamination that could cause engine performance issues or damage sensitive components.
5. Preventing External Contaminants In addition to sealing internal fluids, the cylinder head flange sealing ring helps prevent external contaminants such as dirt, debris, and water from entering the engine. Keeping contaminants out is vital for maintaining the cleanliness and performance of the engine, especially in harsh operating environments.

Materials Used for Cylinder Head Flange Sealing Rings

1. Copper Copper-based sealing rings are highly durable and are often used in high-performance and high-temperature applications. Copper provides excellent thermal conductivity and can handle the intense heat and pressure that occurs in the combustion chamber. It is often used in heavy-duty machinery and high-performance automotive engines.
2. Steel Steel sealing rings are another popular option due to their strength and resistance to high-pressure environments. They are often used in industrial engines, as well as in automotive engines that require high-torque capacity.
3. Elastomers (Rubber Compounds) Elastomer-based sealing rings (such as silicone, EPDM, NBR, or fluoroelastomers) are commonly used for general engine applications due to their flexibility, chemical resistance, and temperature tolerance. These seals provide excellent leak-proof sealing and are widely used in automotive, HVAC, and industrial machinery.
4. Graphite and Metal Composites Graphite-based sealing rings are highly effective in applications requiring high heat resistance and chemical stability. These materials are commonly used in diesel engines and other high-stress environments where traditional rubber or copper may not perform effectively.
5. PTFE (Polytetrafluoroethylene) PTFE sealing rings are used for applications that require superior resistance to aggressive chemicals and high temperatures. They are also useful in applications that require low friction and durability over extended periods.

Key Benefits of Cylinder Head Flange Sealing Rings

1. Enhanced Engine Efficiency The sealing ring plays a critical role in maintaining the integrity of the combustion chamber. A properly sealed engine ensures that compression levels are maintained, resulting in improved fuel efficiency, power output, and overall engine performance.
2. Preventing Overheating A reliable sealing ring helps prevent coolant leakage, which can lead to overheating. Overheating is one of the most common causes of engine failure, and by ensuring the proper sealing of coolant systems, the ring prevents costly engine repairs and downtime.
3. Improved Longevity of Engine Components By ensuring that fluids do not mix and that combustion gases are properly contained, the sealing ring helps extend the life of key engine components, such as the cylinder head, engine block, and gaskets. Proper sealing minimizes wear and reduces the need for premature replacement of engine parts.
4. Cost Efficiency Using high-quality cylinder head flange sealing rings reduces the likelihood of costly repairs due to leaks, overheating, or combustion gas loss. These seals ensure that the engine operates efficiently, reducing fuel consumption and lowering maintenance costs in the long run.
5. Reliability in Harsh Conditions Cylinder head flange sealing rings are designed to operate under extreme temperatures, pressure variations, and chemical exposure, ensuring reliable performance even in demanding environments such as heavy-duty trucks, marine engines, and industrial machinery.

Applications of Cylinder Head Flange Sealing Rings

1. Automotive Engines Cylinder head flange sealing rings are used extensively in automobile engines to ensure a leak-proof seal between the cylinder head and the engine block. These seals help maintain compression, prevent overheating, and ensure smooth engine operation.
2. Industrial Machinery In industrial engines, especially in heavy-duty machinery, construction equipment, and generators, cylinder head flange sealing rings play a key role in sealing combustion gases and engine fluids, preventing leaks, and ensuring optimal machine performance.
3. Marine Engines Marine engines, which operate under tough environmental conditions, rely on high-quality sealing rings to protect against leaks and external contaminants. The saltwater exposure and high humidity make it critical to have durable and reliable seals.
4. Diesel Engines Diesel engines used in trucks, buses, and heavy equipment require highly durable sealing rings that can withstand the high pressures and temperatures associated with diesel combustion. Copper, steel, and graphite-based sealing rings are commonly used in these applications.
5. HVAC Systems Cylinder head flange sealing rings are also used in HVAC systems and other mechanical systems where high-temperature and pressure resistance is needed. They help seal cooling and heating systems, ensuring fluid containment and efficient operation.

Why Choose Julong Rubber for Cylinder Head Flange Sealing Rings?

At Julong Rubber, we specialize in producing high-performance seals and gaskets for a wide range of industrial applications. Our cylinder head flange sealing rings are made from top-quality materials, ensuring durability, temperature resistance, and chemical stability. We offer both customized solutions and standard products designed to meet the stringent requirements of automotive, industrial, and marine applications.

Why Julong Rubber?

• Custom Solutions: We provide sealing rings tailored to your specific needs, ensuring an exact fit and optimal performance.
• High-Quality Materials: Our sealing rings are made from advanced materials, such as silicone, EPDM, NBR, metal composites, and PTFE, offering superior sealing capabilities.
• Industry Expertise: With years of experience, Julong Rubber understands the demands of engine sealing and provides reliable, long-lasting products.
• Global Reach: We serve clients worldwide, including industries in Europe, the US, and Asia.

Contact Julong Rubber Today

If you are looking for high-performance cylinder head flange sealing rings, Julong Rubber is the ideal partner for your sealing needs. Reach out to us at info@rubberandseal.com for more information or to request a custom quote.
