OUR PRODUCTS

8 inch solid rubber wheels

Experience durability and versatility with rubber wheels on the aluminum core.

Browse our selection for reliable wheel solutions.

Description

 8-inch solid rubber wheels



Industry Industry and internal logistics
Application Transport wheels

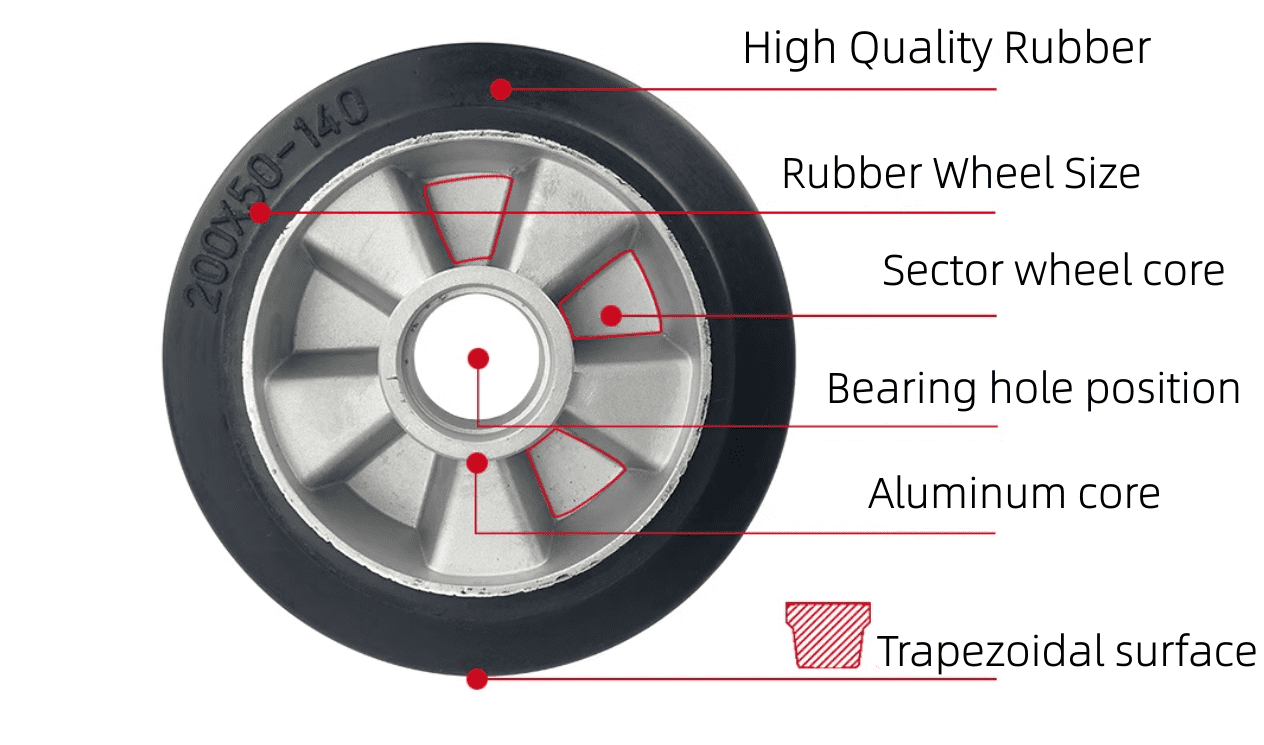

Name Rubber wheels on aluminum Core
Wheel type Spare wheel
Wheel diameter 200mm
Bearing type ball bearing
Brake type No brake
Tread material Rubber
Width 50mm
Rim Aluminum
Diameter axle bore 47mm
hub length mm 60mm
Tire Elastic rubber
Tire color Black RAL 9005
Hardness Shore A 78
tolerance hardness +/-5



This heavy-duty wheel features a durable black rubber tire, measuring Ø200 x W50mm, designed to support up to 350kg.

The wheel is equipped with a ball bearing mechanism and a black rubber tire, boasting a hardness level of 78° Shore A, mounted on an aluminum base. It has an axle hole diameter of 20 mm and a hub length of 50 mm.

The wheel’s construction allows for both firm and smooth movement of goods, making it ideal for irregular surfaces. It’s engineered to handle high loads, ensuring efficient transportation even on uneven floors.

Specifications include:

Wheel dimensions: Diameter 200 mm x Width 50 mm
Axle Hole Diameter: 20 mm
Hub Length: 50 mm
This wheel has undergone rigorous testing to ensure its load capacity:

Dynamic Load Capacity: 500 kg
Static Load Capacity: 620 kg
It also boasts a wide operating temperature range:

Continuous operation: -20°C to +70°C
Brief exposure (up to 10 minutes): -30°C to +80°C

Key Benefits:

  1. Smooth and stable movement of items
  2. Suitable for rough and uneven terrain
  3. High load-bearing capacity



Rubber Wheel Composition:

This wheel for heavy loads is crafted from black rubber with a hardness rating of 78ShA. It offers exceptional wear resistance and anti-slip properties, delivering reliable performance.

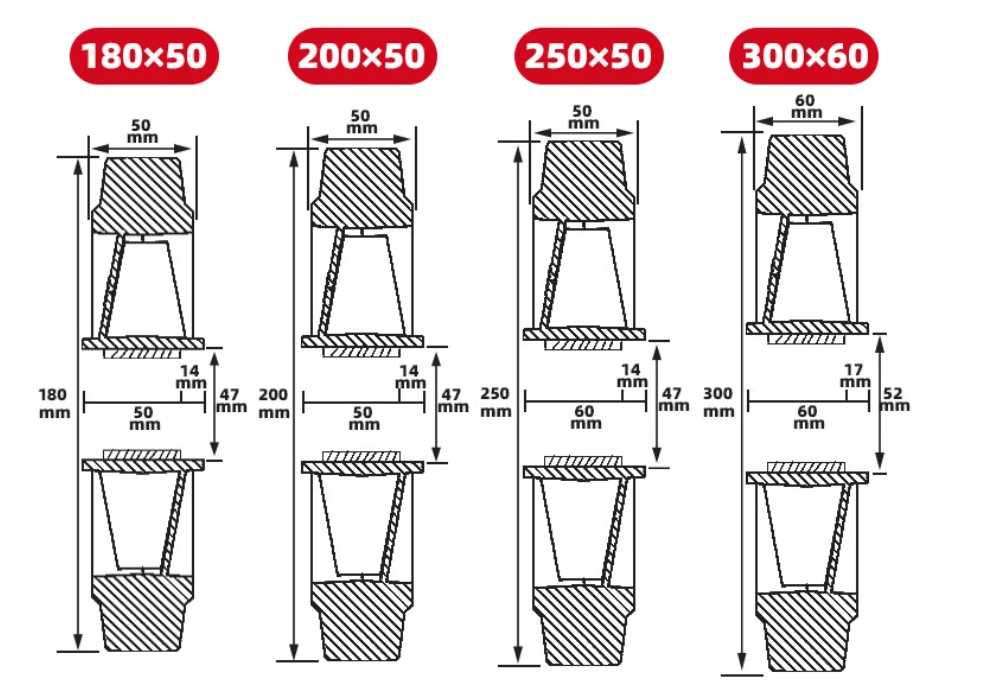

Dimensional Details:

The wheel’s dimensions include a diameter of 180mm and a width of 50mm. It is compatible with 6204 bearings, featuring an inner bearing diameter of 20mm (3/4 inch).

Versatile Use Cases:

Ideal for various equipment, this rubber tire is perfect for lawnmowers, wheelbarrows, garden carts, trailers, trucks, pressure washers, air compressors, generators, and wood chippers, among others.

Robust Loading Capacity:

Designed for pallet trucks, this wheel can support up to 5500 pounds without leaving any marks on the surface it traverses.

Stainless Steel Wheel Hub:

The hub of this load-bearing wheel is constructed from high-quality stainless steel. This ensures a solid and dependable structure, enhancing safety during use.

This wheel is a top choice for heavy-duty applications, ensuring durability, high performance, and suitability for a range of heavy machinery and vehicles, such as forklifts, floor scrubbers, and medical machines.

Additional information

8 inch solid rubber wheels

1. Material Composition:

Core Material: Premium-quality Aluminum (or other metals, depending on the specific product)

Outer Layer: High-grade Rubber (specific type like natural rubber, synthetic rubber, or specialized rubber blends can be mentioned)

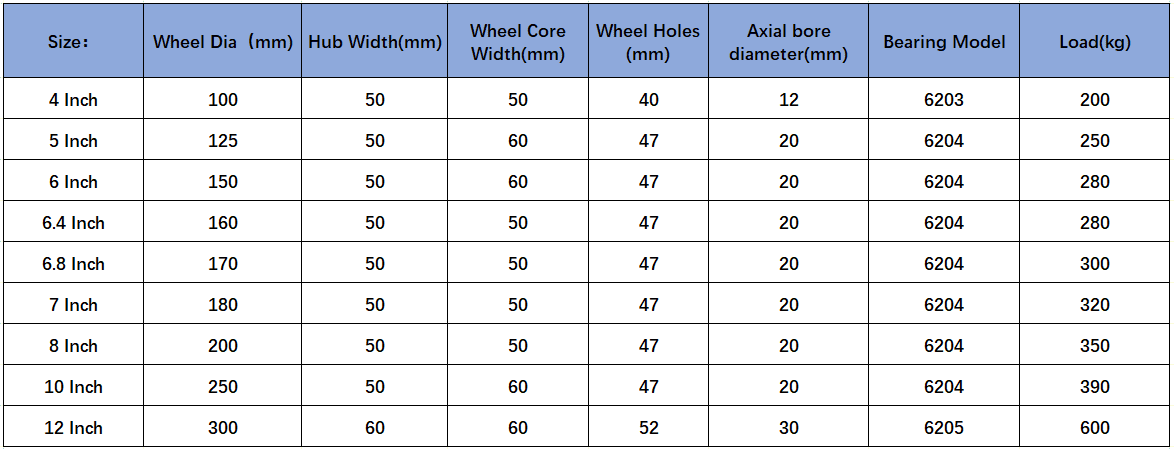

2. Diameter Range: From 100 mm to250 mm (values depend on the specific product range)

3. Load Capacity:From 200 kg to 500 kg (depending on wheel size and design)

4. Tread Pattern:Various designs available, such as ribbed, smooth, serrated, etc., to cater to different terrains and use cases.

5. Hardness:Shore A 60 to 80 (values depend on the specific rubber blend used)
6. Temperature Resistance:Can withstand temperatures ranging from -40°C to 100°C (specific values depend on rubber type).

7. Chemical Resistance:Resistant to various oils, acids, and chemicals. (Details can vary based on the rubber blend)

8. Application:Ideal for industrial carts, machinery, trolleys, and specific vehicle types.

9. Hub Type:Available in centered hub, offset hub, or other designs.

10. Bearing Type:Options include roller bearing, ball bearing, plain bore, etc.

11. Abrasion Resistance:Highly resistant to wear and tear, ensuring prolonged service life.

12. Color Options:Black, Grey, or customized as per client request.

13. Surface Finish:Matte, glossy, or textured based on customer preference.
