Choosing the wrong seal can cause leaks, breakdowns, or costly downtime. Many buyers ask about the difference between PTFE seals and rubber seals—and which is best for their application.

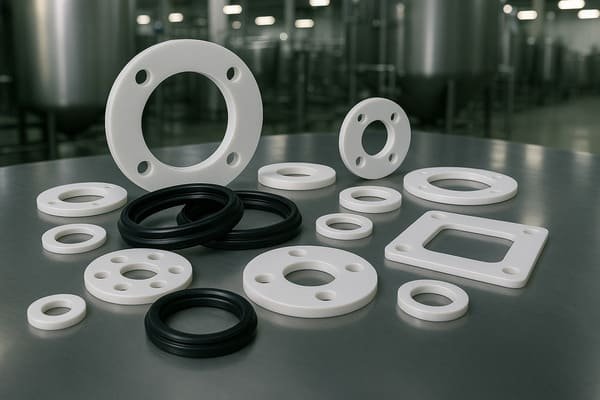

PTFE seals are made from polytetrafluoroethylene (Teflon), offering high chemical resistance, low friction, and wide temperature tolerance. Rubber seals are made from elastomers (such as NBR, EPDM, FKM) and provide superior flexibility, elasticity, and dynamic sealing for many industrial uses.
I have helped many clients solve persistent leakage and durability issues by matching the seal material to their actual working environment.
What are the main features of PTFE seals?
PTFE, commonly known as Teflon, is a unique engineering plastic with some stand-out qualities.
PTFE seals provide exceptional resistance to chemicals, solvents, and high temperatures (up to 260°C or more). They are low-friction, non-stick, non-aging, and almost universally compatible with aggressive media.
| ✅ Feature | 🛠️ PTFE Seal Performance | Where It’s Important |
|---|---|---|
| Chemical resistance1 | Excellent (acids, solvents, gases) | Chemical plants, pharma, labs |
| Temperature range2 | -200°C to +260°C | Steam, cryogenic, hot fluids |
| Low friction3 | Non-stick, self-lubricating | Valves, piston seals, dry runs |
| Non-aging | UV, ozone, and weather-proof | Outdoor, long-life applications |
| Stiff/rigid | Holds shape under pressure | Static/dynamic seats, valve stems |
PTFE is the seal of choice where other materials fail due to chemical attack or heat.
What are the main features of rubber seals?
Rubber seals come in many types—NBR, EPDM, FKM (Viton), silicone, and more—each with their own advantages.
Rubber seals provide great flexibility, elasticity, and dynamic sealing under repeated movement or pressure changes. They handle moderate temperatures, offer excellent sealing for liquids and gases, and can be custom-molded for countless shapes.
| ✅ Feature | 🛠️ Rubber Seal Performance4 | Where It’s Important |
|---|---|---|
| Flexibility | Adapts to movement, compresses easily | Pumps, valves, flanges |
| Temperature range | -50°C to +200°C (varies by rubber) | HVAC, automotive, water |
| Chemical resistance | Good to excellent (depends on rubber) | Oil, water, mild chemicals |
| High elasticity | Handles cycling and vibration | Dynamic seals, gaskets |
| Custom molding | Any shape, size, hardness | OEM, special projects |
Rubber is the go-to for dynamic applications where flexibility and a tight seal are needed.
PTFE Seal vs. Rubber Seal: Performance Comparison
A direct side-by-side view helps clarify when to use each material.
| ✅ Feature | 🛠️ PTFE Seal | 🛠️ Rubber Seal |
|---|---|---|
| Chemical resistance | Excellent (almost all) | Varies (good to excellent) |
| Temperature resistance | Very high (-200~+260°C) | Moderate (-50~+200°C) |
| Flexibility/elasticity | Low (rigid) | High (elastic, flexible) |
| Friction | Very low (slippery) | Higher (varies by type) |
| Dynamic sealing ability5 | Moderate (needs backup) | Excellent |
| Aging/weathering | Non-aging, non-stick | Can age (crack, harden) |
| Cost | Higher | Generally lower |
| Custom shaping | Machined or molded | Easily molded |
PTFE seals excel in chemical, high-temperature, or low-friction situations. Rubber seals are better for flexibility, dynamic sealing, and cost-sensitive applications.
When should you use PTFE seals vs. rubber seals?
Application needs are the most important factor.
Use PTFE seals in chemical processing, high-temperature, low-friction, or dry-running equipment. Use rubber seals for pumps, valves, gaskets, and dynamic applications needing tight, flexible, and vibration-resistant seals.
| ✅ Application | 🛠️ Best Seal Type | Why |
|---|---|---|
| Chemical plant | PTFE6 | Aggressive media, safety |
| Food/pharma valves | PTFE or FDA rubber7 | Non-toxic, clean, safe |
| Water/HVAC systems | Rubber (EPDM8, NBR) | Flexibility, price, sealing |
| High-speed piston | PTFE (low friction) | Self-lubricating |
| General machinery | Rubber (NBR, FKM, silicone) | Dynamic, easy to mold |
Consulting with your supplier about operating conditions, media, and movement helps pick the safest, most cost-effective seal.
Can PTFE and rubber seals be customized?
Both types can be tailored to fit your exact system or project.
PTFE and rubber seals are available in custom sizes, profiles, and even special compounds for food, pharma, fire safety, or ultra-clean service. Choose the right material, hardness, and reinforcement for your application.
| ✅ Custom Option | 🛠️ PTFE Seal9 | 🛠️ Rubber Seal10 |
|---|---|---|
| Any size/profile | CNC machined, turned | Molded, cut, extruded |
| Color coding | Visual ID, QA tracking | Fast sorting, service ease |
| Food/pharma grade | Virgin, certified PTFE | FDA, WRAS, medical silicone |
| Reinforcement | Glass/carbon/PTFE fill | Fabric, metal, wire insert |
I help clients select or design the right seal for every industry—chemical, water, food, or OEM.
Conclusion
PTFE seals and rubber seals each have unique strengths. PTFE stands out for chemical, temperature, and friction resistance; rubber is best for flexibility, vibration, and dynamic sealing. The right choice depends on your working environment, budget, and performance goals.
