What Is an EPDM Spiral Duct Fitting Gasket and How Do You Choose the Right One?

Air leakage in duct fittings looks small at first. But it can waste energy, create rework, and damage buyer confidence after installation.

An EPDM spiral duct fitting gasket is a rubber sealing ring used on spiral duct fittings to reduce air leakage. The right choice depends on size, EPDM quality, gasket construction, installation fit, and sealing reliability.

In customer inquiries we handle at Julong Rubber, I often see buyers focus only on material and price. They ask for “EPDM gasket,” compare quotations, and choose the lowest unit cost. But for spiral duct fitting gaskets, the real question is not only “Is it EPDM?” The more important question is “How is this EPDM gasket made, and will it stay sealed after installation?”

What Is an EPDM Spiral Duct Fitting Gasket?

Many buyers see this gasket as a simple rubber ring. That view can hide the real sealing and installation risks.

An EPDM spiral duct fitting gasket is a rubber sealing component fitted around duct connectors, elbows, reducers, or fittings to help create an airtight joint in HVAC ductwork.

A spiral duct fitting gasket is usually installed around a circular duct fitting¹. When the fitting is inserted into the spiral duct, the gasket is compressed between the fitting and the duct wall. This compression helps reduce air leakage and improves sealing performance.

In HVAC systems, this gasket may be used on:

Fitting Area	Typical Gasket Function
Spiral duct connectors	Seal the joint between two duct sections
Elbows	Reduce leakage at direction changes
Reducers	Seal different duct diameters
Branch fittings	Seal airflow distribution points
End caps	Prevent air loss at duct ends
Couplings	Support airtight connection between ducts

The gasket may look small compared with the full duct system, but it affects air leakage, installation efficiency, and long-term duct performance. If the gasket is too loose, it may not seal. If it is too hard, installation becomes difficult.² If the joint is weak, the gasket can open during fitting installation or service.

A gasket is not only a material choice

Many buyers correctly choose EPDM because it is suitable for many HVAC and outdoor conditions. However, EPDM alone does not guarantee reliable sealing. The gasket size, cross-section, hardness, compression design, and construction method all matter.³

In this application, one of the biggest differences is the construction method:

Gasket Type	How It Is Made	Main Buyer Concern
Extruded EPDM strip joined into a ring	EPDM profile is extruded, cut, and bonded at the ends	Lower tooling cost, but joint reliability must be checked
Molded one-piece EPDM gasket	Gasket is molded as one continuous ring	Higher tooling cost, but no bonded seam weak point

This is why I do not recommend choosing only by material name. Two gaskets can both be called EPDM, but their sealing risk can be very different.

Why Is EPDM Used for Spiral Duct Fitting Gaskets?

Some buyers choose EPDM because it is common, but they may not understand why it fits HVAC duct sealing.

EPDM is used for spiral duct fitting gaskets because it resists ozone, weathering, moisture, aging, and many HVAC working conditions better than many general-purpose rubbers.

EPDM is a practical material for HVAC gasket applications because duct systems often face air movement, moisture, temperature change, dust, and long service time.⁴ Outdoor duct sections or rooftop HVAC systems may also face sunlight, rain, ozone, and weather aging.

For spiral duct fitting gaskets, EPDM offers several useful advantages:

EPDM Property	Why It Matters for Duct Gaskets
Ozone resistance	Helps reduce cracking in air-exposed environments
Weather resistance	Supports outdoor or rooftop HVAC applications
Moisture resistance	Useful where condensation may occur
Aging resistance	Helps maintain sealing function over time
Flexibility	Supports compression during fitting installation
Cost performance	Practical for B2B volume production

EPDM is practical, but not universal

EPDM is strong in air, water, moisture, ozone, and weather exposure. But it is not the right material for petroleum oil, fuel, or hydrocarbon lubricants. In a normal spiral duct fitting application, this is usually not a problem. However, if the duct system is near oil mist, chemical vapor, or special industrial exhaust, the buyer should confirm media exposure before ordering.

For standard HVAC air duct sealing, EPDM is often a reasonable material direction.⁵ But I still check these points before confirming:

• Working temperature range⁶
• Indoor or outdoor installation⁷
• Airflow condition
• Possible condensation
• Chemical or oil exposure⁸
• Required Shore A hardness
• Gasket construction method
• Expected installation method

The material must match the real application. But after material is confirmed, construction becomes the next important decision.

How Do You Confirm the Correct Gasket Size?

A good EPDM material cannot fix a gasket that is too small, too large, too hard, or poorly fitted.⁹

To confirm the correct gasket size, buyers should check duct diameter, fitting groove design, gasket cross-section, compression allowance, tolerance, and real installation fit.

For spiral duct fitting gaskets, size accuracy affects both sealing and installation.¹⁰ If the gasket outer diameter is too large, the installer may struggle to insert the fitting. If it is too small, the seal may not compress enough. If the cross-section is wrong, leakage can happen even if the material is good.

Key size details buyers should check

Size Detail	Why It Matters
Nominal duct diameter	Gives the basic fitting size
Actual fitting outside diameter	Confirms real metal part dimension
Groove position	Shows where the gasket sits
Groove depth and width	Controls gasket compression and retention
Gasket cross-section	Affects sealing contact and installation force
Gasket inner diameter	Controls fit around the fitting
Gasket outer diameter after installation	Affects contact with duct wall
Tolerance	Prevents loose fit or difficult assembly

In many RFQs, buyers send only the nominal duct size. This may not be enough. Spiral duct fittings from different factories can have small dimensional differences. These differences can affect gasket fit. For custom production, I prefer to receive either a drawing or a physical sample of the metal fitting and existing gasket.

Compression should be designed, not guessed

A gasket seals because it compresses. But too much compression can make installation difficult or damage the gasket. Too little compression can cause air leakage.

For a spiral duct fitting gasket, the supplier should understand:

• How the gasket sits on the fitting
• How much compression happens during insertion¹¹
• Whether the gasket may roll or twist during installation
• Whether lubricant is used during assembly
• Whether the gasket must pass repeated installation or only one-time assembly

🛠️ In actual production review, I also check the gasket profile. A simple round section, lip profile, or special molded geometry can behave differently during installation. The lowest-cost profile is not always the most reliable profile.

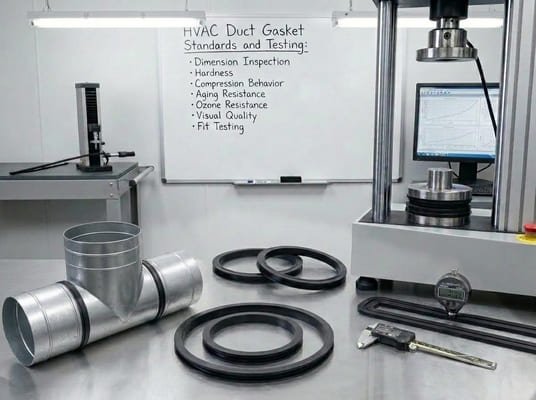

What Standards and Tests Matter for HVAC Duct Gaskets?

Without clear testing expectations, buyers may receive gaskets that look correct but fail during installation or leakage checks.¹²

Important HVAC duct gasket checks include dimension inspection, hardness, compression behavior, aging resistance, ozone resistance, visual quality, fit testing, and project-specific leakage requirements.

For duct gaskets, the quality requirement should match the application. A simple indoor air duct may not need the same testing as a high-performance ventilation system, industrial duct, or export project with strict documentation.¹³

Common tests for EPDM spiral duct fitting gaskets

Test or Check	Purpose
Dimension inspection	Confirms gasket diameter, cross-section, and tolerance14
Shore A hardness	Confirms flexibility and compression behavior
Visual inspection	Checks cracks, bubbles, poor joints, flash, or surface defects
Compression set	Helps judge long-term sealing recovery
Tensile strength	Checks basic rubber strength
Elongation	Checks flexibility before break
Ozone resistance	Important for air and outdoor exposure
Heat aging	Checks aging behavior under elevated temperature
Fit test	Confirms gasket works on the actual metal fitting
Joint strength check	Important for extruded-and-joined rings15
Leakage-related test	Should follow buyer or project requirement

Standards should be confirmed by project

Some HVAC or ductwork projects may reference standards or guidance related to duct leakage, ventilation ductwork, or project-specific air tightness classes. Depending on the market, buyers may mention EN 12237, EN 1507, DW/144, SMACNA guidance, or internal project specifications. These requirements need verification for each project.

As a rubber gasket manufacturer, I do not pretend to replace a duct-system design institute or certified laboratory. My role is to help buyers make the gasket according to the drawing, material requirement, fit condition, and inspection plan. If the project requires a specific leakage class or standard compliance, the buyer should provide the exact document requirement during RFQ.

Testing should include the gasket construction

For molded one-piece gaskets, inspection focuses on dimensions, material, surface, hardness, and molding quality¹⁶. For extruded-and-joined gaskets, the bonded seam should receive special attention.

This is because the joint can become the weak point. The rubber profile may be good. The EPDM compound may be correct. But if the bonded joint opens when the gasket is stretched, installed, or compressed, leakage can happen at that point.¹⁷

So buyers should not only ask, “Is the material EPDM?” They should also ask, “How is the ring made, and how is the joint controlled?”

How Should EPDM Gaskets Be Installed on Spiral Duct Fittings?

A good gasket can still leak if it is twisted, stretched too much, or damaged during installation.

EPDM gaskets should be installed evenly on the fitting groove, kept clean, protected from twisting, and checked for correct seating before the duct fitting is inserted.

Installation is one reason gasket construction matters. During assembly, the gasket may face stretching, pulling, rolling, and friction. If the gasket is a bonded extruded ring, the seam area may face extra stress.

Practical installation checks

Installation Point	Why It Matters
Clean fitting surface	Dust or metal burrs can damage the gasket
Correct groove seating	Prevents gasket rolling or uneven compression
No twisting	Twisting can create leakage channels
Controlled stretching	Overstretching may weaken the gasket or joint
Smooth insertion	Reduces tearing or displacement
Joint position check	Important for extruded-and-joined rings
Visual inspection after installation	Confirms no displacement or damage

For one-piece molded gaskets, there is no bonded seam, so one common weak point is removed. This does not mean molded gaskets never fail. The size, hardness, and installation still need to be correct. But when leakage risk at the joint is a major concern, a molded gasket is often the safer construction.

Extruded-and-joined ring installation risk

A common cost-down choice we see is an extruded EPDM strip bonded into a ring.¹⁸ This can be attractive because tooling cost is lower than a molded one-piece gasket. For some low-risk or temporary applications, it may be acceptable.

However, in actual installation, the bonded joint can become the weak point. If the installer pulls the gasket, twists it, or pushes the fitting with uneven force, the joint may separate or open slightly. Even a small opening can create an air leakage path.

This is why I always ask buyers how the gasket will be installed. If the gasket will be stretched over the fitting, handled roughly on site, or used in a leakage-sensitive system, the construction method matters.¹⁹

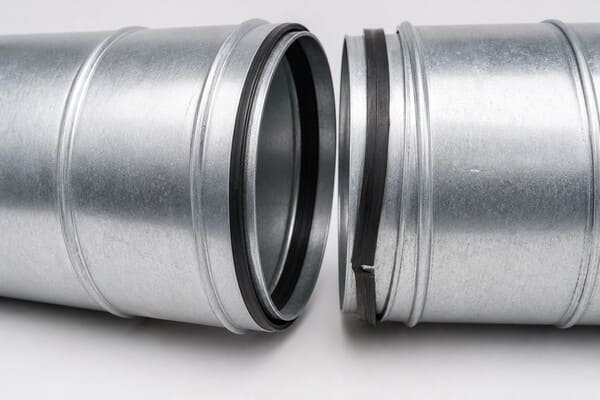

What Causes Spiral Duct Gasket Failure or Air Leakage?

Many leakage problems are blamed on rubber quality, but the real cause may be size, joint construction, installation, or wrong cost decisions.

Spiral duct gasket failure can come from poor fit, weak bonded joints, wrong hardness, incorrect compression, installation damage, aging, surface defects, or unsuitable gasket construction.

For spiral duct fitting gaskets, leakage usually happens when the gasket cannot keep continuous sealing contact around the full circumference.²⁰ This can happen for several reasons.

Common failure causes

Failure Cause	What Happens	Prevention Method
Wrong gasket size	Too loose or too tight	Confirm fitting dimensions and gasket cross-section
Weak bonded joint	Joint opens during installation or service	Consider molded one-piece gasket for higher reliability
Wrong hardness	Too hard to install or too soft to seal	Match Shore A hardness to compression design
Poor groove fit	Gasket rolls or moves	Review fitting groove and gasket profile
Installation damage	Cuts, twisting, or displacement	Improve installation method and surface condition
Aging or cracking	Seal loses flexibility	Use suitable EPDM compound and aging checks
Poor surface quality	Defects create leakage paths	Apply visual and dimensional inspection
Low-cost wrong construction	Upfront saving creates downstream leakage cost	Compare total cost, not only unit price

The real cost of a weak joint

This is the buying mistake I want to highlight. A buyer may compare two EPDM gasket quotations:

Option	Upfront Cost	Main Risk
Extruded EPDM strip joined into a ring	Lower tooling cost and often lower starting cost	Bonded joint may open or leak if stressed
Molded one-piece EPDM gasket	Higher tooling cost	Better ring continuity and no bonded seam weak point

The cheaper option may look reasonable at quotation stage. But if the joint opens after installation, the buyer may face rework, site complaints, air leakage, replacement labor, and project delay. In that case, the lowest unit price becomes the highest total cost.

I do not say every joined extruded ring is wrong. It depends on the application, joint quality, installation stress, and leakage requirement. But I do say this clearly: if air leakage risk matters, buyers should not ignore gasket construction.

When molded one-piece gaskets are safer

A molded one-piece gasket is usually a safer recommendation when:

• The duct system has strict leakage expectations.
• Installation stress is high.
• The gasket may be stretched during assembly.
• The buyer wants fewer joint-related risks.
• Rework cost is high.
• The project needs better consistency.
• The gasket shape is not easy to join reliably.
• Long-term sealing reliability matters more than lowest tooling cost.

This is the life-cycle cost view. The right gasket is not always the cheapest gasket at the quotation stage. It is the gasket that gives the buyer a stable installation result and lower failure risk.

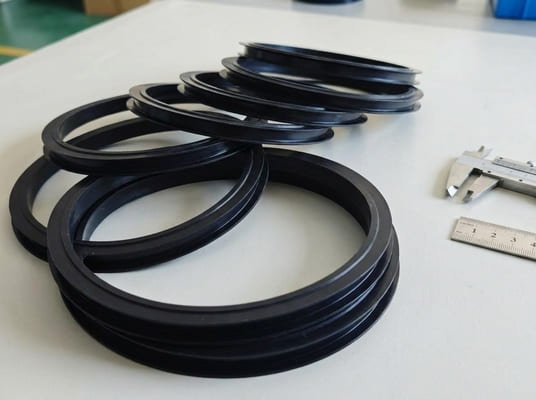

What Should Buyers Provide for a Custom EPDM Spiral Duct Gasket RFQ?

A vague RFQ leads to price comparison without real technical comparison, which increases the risk of choosing the wrong gasket.

Buyers should provide fitting size, gasket drawing, sample, EPDM requirement, hardness, construction preference, installation method, quantity, leakage expectation, testing needs, and target lead time.

A good RFQ helps the supplier understand both the rubber part and the buyer’s real risk. For spiral duct fitting gaskets, I recommend buyers provide more than only diameter and quantity.

RFQ checklist for custom EPDM spiral duct fitting gaskets

RFQ Information	Why It Helps
Fitting type	Connector, elbow, reducer, branch, coupling, or cap
Nominal duct diameter	Gives the basic size range
Actual metal fitting dimensions	Confirms gasket fit
Gasket drawing	Shows cross-section, diameter, and tolerance
Existing sample	Helps check real construction and hardness
EPDM material requirement	Confirms compound direction
Shore A hardness	Affects installation and sealing force
Solid or sponge EPDM	Controls compression and recovery
Molded or joined construction	Affects tooling cost and leakage risk
Installation method	Shows stretching, friction, and joint stress
Indoor or outdoor use	Helps confirm aging and weather requirements
Temperature range	Supports compound selection
Air leakage requirement	Helps decide construction and inspection level
Quantity and annual demand	Affects tooling design, MOQ, and price
Testing or documentation needs	Prevents late cost or lead time changes
Target lead time	Supports project planning

What buyers should ask before choosing the cheaper gasket

Before choosing an extruded-and-joined ring only to reduce cost, buyers should ask:

• Will the gasket be stretched during installation?
• Is the bonded joint exposed to pulling or twisting?
• Is air leakage a critical issue for this project?
• What is the cost of rework if leakage happens?
• Is tooling cost more important than long-term sealing reliability?
• Can the supplier control joint quality consistently?
• Would a molded one-piece gasket reduce total project risk?

These questions are practical. They help buyers compare total cost, not only unit price.

Tooling, MOQ, and lead time

For a molded one-piece EPDM gasket, tooling cost is usually higher because a mold must be made for the ring geometry. MOQ depends on gasket size, material, production efficiency, and order planning. Lead time includes drawing review, mold making, sample production, inspection, sample approval, and mass production.

For an extruded-and-joined ring, the initial tooling may be lower if the profile is simple or existing tooling can be used. However, cutting, bonding, joint control, and inspection still add process steps. A lower tooling cost does not automatically mean lower total project cost.

Factor	Molded One-Piece Gasket	Extruded-and-Joined Ring
Tooling cost	Usually higher	Usually lower
Unit price	Depends on size, volume, and mold cavities	Depends on profile, cutting, and bonding
Joint risk	No bonded seam	Bonded joint must be controlled
Installation reliability	Often better for leakage-sensitive projects	Depends strongly on joint quality and handling
Best use	Higher reliability, custom ring shape, leakage-sensitive systems	Cost-sensitive or lower-risk applications
Sample approval	Important	Important, especially joint inspection

At Julong Rubber, we can review fitting drawings, gasket samples, construction preference, and expected sealing conditions before quoting. If leakage risk is important, we can discuss whether a molded one-piece EPDM gasket is more suitable than a bonded extruded ring.

Conclusion

An EPDM spiral duct fitting gasket is a small part, but the right construction can prevent leakage, rework, and false economy after installation.

---
