What Are the Top 10 Types of Rubber Parts Used in Industrial Applications?

Choosing the wrong rubber part type can cause leakage, vibration, wear, cable damage, and sourcing delays before material selection even begins.

The top industrial rubber parts include seals, gaskets, O-rings, bushings, grommets, mounts, hoses, extrusions, bellows, and rubber-to-metal or custom molded parts.

In industrial inquiries we handle at Julong Rubber, I often see buyers start with a product name but not a function. They may ask for a “rubber ring,” “rubber pad,” or “rubber sleeve,” but the real question is what the part must do inside the equipment. Rubber parts should be grouped by function first: sealing, damping, protection, support, insulation, fluid transfer, or movement compensation.

What Are Industrial Rubber Parts?

Small rubber parts can look simple, but they often protect expensive equipment from leakage, vibration, impact, and premature wear.

Industrial rubber parts are functional rubber components used in machinery, vehicles, HVAC, fluid systems, electrical equipment, and assemblies for sealing, protection, damping, and support.

Industrial rubber parts are not just accessories. They are engineered components that help equipment work safely and consistently¹. A rubber gasket may stop leakage at a flange. A rubber bushing may reduce vibration in a machine². A grommet may protect cables from sharp metal edges³. A hose may carry fluid under pressure⁴. A rubber mount may reduce noise and shock⁵.

From a manufacturer’s view, I classify industrial rubber parts by what they do:

Function	Common Rubber Parts	Typical Purpose
Sealing	Rubber seals, gaskets, O-rings	Stop air, water, oil, dust, or chemical leakage
Vibration control	Bushings, mounts, pads, bumpers	Reduce shock, noise, and movement
Protection	Grommets, plugs, end caps, boots6	Protect cables, holes, edges, and components
Fluid transfer	Hoses, tubes, sleeves	Move air, water, oil, coolant, or chemicals
Movement compensation	Bellows, diaphragms	Allow flexing, expansion, or pressure response
Structural support	Rubber-to-metal parts	Combine elasticity with mechanical strength
Custom fit	Custom molded rubber parts7	Match special equipment design or assembly needs

A common source of confusion is that different rubber parts may look similar but serve different roles.⁸ A gasket and an O-ring both seal, but their geometry, compression method, and installation design are different. A bushing and a grommet may both fit into holes, but one often handles movement or vibration, while the other protects a cable or opening.

For buyers, the first sourcing step is not material selection. It is category selection. Once the correct part type is clear, the buyer can move into drawing review, Shore A hardness, compression set, tolerance, chemical compatibility, tooling cost, MOQ, and lead time.

What Are the Top 10 Types of Rubber Parts?

A simple list of names is not enough. Buyers need to understand what each rubber part actually does in industrial equipment.

The top 10 industrial rubber part types are seals, gaskets, O-rings, bushings, grommets, mounts, hoses, extrusions, bellows, and custom molded or rubber-to-metal parts.

This “top 10” list is a practical industrial-use guide, not a strict market ranking. I group these parts based on the types of inquiries we often receive across sealing, HVAC, automotive, machinery, fluid control, electrical equipment, and industrial assemblies.

Practical top 10 industrial rubber parts

No.	Rubber Part Type	Main Function	Common Applications
1	Rubber seals	Block leakage and protect gaps	Doors, housings, HVAC, machinery, automotive9
2	Rubber gaskets	Seal flat surfaces under compression	Flanges, pumps, valves, pipe joints, covers
3	O-rings	Seal grooves in static or dynamic assemblies	Cylinders, valves, compressors, fittings
4	Rubber bushings	Reduce vibration and allow controlled movement	Suspension, machinery, equipment joints
5	Rubber grommets	Protect cables, holes, and panel openings	Electrical cabinets, vehicles, machines
6	Rubber mounts	Isolate vibration and support loads	Engines, pumps, compressors, equipment bases
7	Rubber hoses and tubes10	Transfer fluids, air, or gases	Hydraulic systems, cooling, HVAC, agriculture
8	Rubber extrusions	Provide continuous sealing or edge protection	Door seals, cabinet seals, window profiles
9	Rubber bellows and boots11	Protect moving parts and allow flexing	Steering, shafts, cylinders, machine guards
10	Custom molded and rubber-to-metal parts	Fit special assemblies and structural needs	OEM equipment, automotive, industrial machinery

Each type exists because industrial equipment has different risks. Leakage needs seals. Vibration needs mounts or bushings. Sharp edges need grommets. Moving joints need boots or bellows. Special assemblies need custom molded parts.¹²

✅ The key buyer lesson is simple: do not start by asking only for “rubber parts.” Start by asking what the rubber part must prevent, support, transfer, seal, or protect.

How Are Rubber Seals Used?

A poor seal can create leakage, dust entry, noise, and warranty issues even when the rest of the assembly is well designed.

Rubber seals are used to close gaps, block leakage, protect openings, and maintain contact between two surfaces under compression or movement.

Rubber seals are one of the most common industrial rubber parts.¹³ They are used in HVAC equipment, automotive systems, pumps, valves, machinery, electrical cabinets, doors, windows, and fluid control assemblies.

A rubber seal may be molded, extruded, die-cut, or assembled with metal or adhesive. The right design depends on the sealing direction, compression force, surface contact, tolerance, and working environment.

Common rubber seal applications

Seal Type	Typical Use	Buyer Concern
Door seals	Cabinet doors, vehicle doors, machine doors	Compression recovery, weather resistance
Shaft seals	Rotating or moving shafts	Wear, oil resistance, fit
Lip seals	Housings and mechanical interfaces	Contact pressure and material compatibility
Edge seals	Metal panels and enclosures	Grip, profile design, installation
HVAC seals	Air ducts, units, dampers, housings	Air leakage, dust, aging
Automotive seals14	Doors, engine areas, body openings	Ozone, heat, oil, and durability

Rubber seals are selected by function and environment¹⁵. EPDM is often used for outdoor, water, ozone, and HVAC sealing. NBR is often used for oil resistance. FKM may be used for higher temperature, oil, fuel, or chemical exposure. Silicone may be used when temperature flexibility is more important.

For custom rubber seals, geometry is as important as material.¹⁶ A good EPDM compound cannot fix a poor compression design. A precise profile may fail if the hardness is wrong. A seal with poor tolerance may leak even if the material is correct.

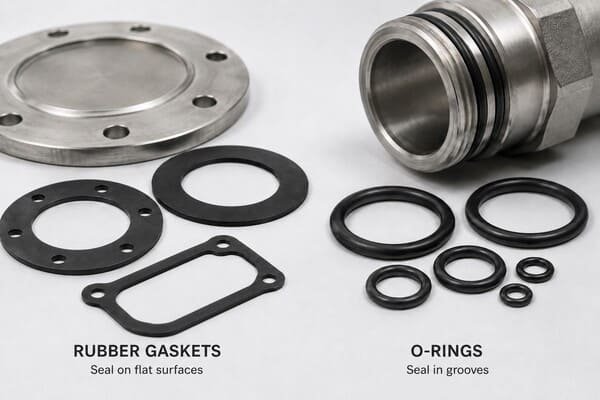

How Are Rubber Gaskets and O-Rings Different?

Many buyers use gasket and O-ring as interchangeable words, but they are different sealing components.

Rubber gaskets usually seal flat surfaces, while O-rings seal inside grooves with controlled compression around circular or shaped sealing paths.

Rubber gaskets and O-rings both prevent leakage, but they are designed differently.¹⁷ A gasket is often flat or shaped to match two mating surfaces. An O-ring is usually round in cross-section and installed in a groove.

Rubber gasket vs O-ring

Factor	Rubber Gasket	O-Ring
Shape	Flat, ring-shaped, die-cut, molded, or custom	Circular ring with round cross-section
Installation	Between two flat or shaped surfaces	Inside a groove
Compression	Surface compression	Groove squeeze
Common use	Flanges, covers, housings, pipe joints	Cylinders, valves, fittings, compressors
Manufacturing	Die cutting, molding, waterjet cutting	Molding
Key risk	Thickness tolerance and compression set	Groove design and material compatibility

Rubber gaskets are common in pumps, valves, pipe flanges, HVAC equipment, machinery covers, and electrical enclosures.¹⁸ O-rings are common in hydraulic systems, automotive parts, compressors, pneumatic equipment, refrigeration systems, and fluid control components.

What buyers often misunderstand

A flat rubber ring is not always an O-ring. A round sealing ring is not always a gasket. The groove design, sealing pressure, assembly method, and material contact decide the correct part type.

For gaskets, buyers should check thickness, hardness, compression set, bolt load, media exposure, and surface roughness. For O-rings, buyers should check inside diameter, cross-section, groove size, squeeze ratio, temperature, pressure, and fluid compatibility.

A gasket may need EPDM for water or outdoor sealing. It may need NBR for oil contact. It may need FKM for high-temperature chemical service. The same logic applies to O-rings, but groove design becomes even more important.

What Are Rubber Bushings, Grommets, and Mounts Used For?

These parts are often confused because they all protect or support assemblies, but their functions are different.

Rubber bushings control movement, grommets protect holes and cables, and rubber mounts isolate vibration or support equipment under load.

Bushings, grommets, and mounts are common in machinery, automotive, HVAC, electrical, and industrial equipment.¹⁹ They do not usually function as simple sealing parts. Their main value is vibration control, protection, support, and isolation.

Function comparison

Part Type	Main Function	Common Use
Rubber bushing	Allows controlled movement and reduces vibration	Suspension, hinges, machinery joints
Rubber grommet	Protects cables, wires, tubes, or holes	Electrical cabinets, panels, vehicles
Rubber mount	Supports equipment and isolates vibration	Pumps, compressors, motors, HVAC units

Rubber bushings

Rubber bushings are used where two parts need movement control and vibration reduction.²⁰ They may be used in automotive suspension, industrial machinery, equipment arms, or structural joints. Material, hardness, load direction, fatigue resistance, and bonding structure are important.

A bushing that is too soft may deform. A bushing that is too hard may transfer vibration instead of absorbing it. If the bushing includes metal sleeves, rubber-to-metal bonding quality becomes critical.

Rubber grommets

Rubber grommets are usually installed in holes to protect cables, tubes, or rods from sharp metal edges²¹. They also help reduce vibration and dust entry. Grommets are common in electrical cabinets, automotive body panels, HVAC equipment, and machinery housings.

For grommets, fit is critical. The groove must match the panel thickness. The hole diameter must match the grommet design. If the grommet is too loose, it may fall out. If it is too tight, installation may be difficult.

Rubber mounts

Rubber mounts support equipment and reduce vibration. They are used under motors, pumps, compressors, fans, HVAC units, industrial machines, and automotive systems. Load capacity, rubber hardness, shape, metal insert design, and fatigue resistance should be reviewed before sourcing.

When Do You Need Rubber Hoses, Tubes, or Extrusions?

Fluid movement and continuous sealing often require rubber parts that are longer, flexible, or profile-based.

You need rubber hoses for fluid transfer, tubes for flexible passages, and extrusions for continuous sealing, edge protection, or custom profile applications.

Rubber hoses, tubes, and extrusions are different from small molded parts because their length, flexibility, pressure, and profile design matter.

Rubber hoses

Rubber hoses are used to transfer air, water, oil, coolant, chemicals, or other fluids²². Applications include hydraulic systems, automotive cooling, agriculture, industrial fluid transfer, HVAC drainage, and equipment connections.

Key buyer concerns include:

• Working pressure
• Burst pressure, needs verification
• Temperature range
• Fluid compatibility
• Bend radius
• Reinforcement structure
• Fitting connection
• Inner and outer diameter tolerance²³

NBR may be used for oil-resistant hoses. EPDM may be used for water, coolant, and weather-related applications. Silicone may be used for higher temperature air or coolant applications. Material should always follow the media.

Rubber tubes

Rubber tubes may be used for air, water, drainage, insulation, or protective sleeves. They may be softer and simpler than reinforced hoses. The buyer should confirm whether the tube only protects or whether it must carry pressure.

Rubber extrusions

Rubber extrusion profiles are used for continuous sealing and edge protection. Common applications include door seals, window seals, electrical cabinet seals, cold room seals, marine seals, automotive profiles, and HVAC equipment seals.

For extrusions, the cross-section is the main design point. A hollow bulb, lip, sponge profile, or co-extruded structure can change sealing force and installation behavior.

Product	Main Use	Key Selection Factor
Rubber hose	Fluid transfer	Pressure, media, reinforcement
Rubber tube	Passage or protection	Diameter, flexibility, wall thickness
Rubber extrusion	Continuous sealing	Cross-section, hardness, compression

What Are Rubber Bellows and Rubber-to-Metal Parts?

Movement, dust, vibration, and structural load often need more than a simple gasket or seal.

Rubber bellows protect moving parts and allow flexing, while rubber-to-metal parts combine rubber elasticity with metal strength for support or vibration control.

Rubber bellows, boots, diaphragms, and rubber-to-metal bonded parts are more specialized industrial rubber components. They often require more engineering review than simple caps, washers, or flat gaskets.

Rubber bellows and boots

Rubber bellows and boots protect moving parts from dust, water, grease, and mechanical damage. They are used on shafts, cylinders, steering systems, machine guards, joints, and equipment covers²⁴. Their folded shape allows movement while maintaining protection.

Important selection factors include:

Factor	Why It Matters
Flexing frequency	Affects fatigue life
Stroke or movement range	Controls bellows geometry
Material	Must match oil, weather, dust, or temperature
Wall thickness	Affects flexibility and durability
Installation ends	Must fit tightly to avoid slipping
Tear resistance	Important during movement and assembly

Rubber diaphragms

Rubber diaphragms are flexible membranes used in pumps, valves, pressure control devices, and fluid systems. They flex repeatedly, so fatigue resistance and chemical compatibility are important. NBR, EPDM, silicone, FKM, and fabric-reinforced rubber may be considered depending on the media and movement.

Rubber-to-metal parts

Rubber-to-metal parts combine rubber with metal inserts, sleeves, plates, or studs. They are common in engine mounts, machine mounts, bushings, vibration isolators, support pads, and industrial equipment parts.

The bonding process is critical. Poor bonding can cause separation under load or vibration. Buyers should provide load direction, working environment, and assembly method when asking for rubber-to-metal parts.

How Do You Choose the Right Rubber Material and Manufacturing Process?

A correct product category can still fail if the material, hardness, process, or tolerance is wrong.

Choose rubber material and manufacturing process by function, media exposure, temperature, hardness, compression, load, tolerance, quantity, tooling budget, and approval requirements.

Once buyers identify the correct rubber part type, the next step is material and process selection. This is where many sourcing problems appear. A buyer may know they need a gasket, but not whether it should be EPDM, NBR, silicone, FKM, or another compound. They may know they need a custom part, but not whether molding, extrusion, cutting, or rubber-to-metal bonding is the right process.

Common rubber material guide

Material	Common Use	Strength	Limitation
EPDM	Outdoor seals, HVAC, water gaskets, weather profiles	Weather, ozone, water resistance	Poor petroleum oil and fuel resistance
NBR	Oil seals, gaskets, O-rings, hoses	Oil resistance	Limited ozone and weather resistance
FKM	High-temperature oil, fuel, chemical seals	Heat, oil, fuel, chemical resistance	Higher cost
Silicone	Temperature-flexible seals, gaskets, special parts	High and low temperature flexibility	Tear and abrasion need review
NR	Vibration parts, mounts, some bushings	Elasticity and fatigue resistance	Poor oil and ozone resistance
SBR	Pads, bumpers, cost-sensitive parts	Cost and abrasion balance	Limited oil and weather resistance
CR	Boots, pads, balanced industrial uses	Balanced weather and oil resistance	Application must be checked
PU	Wheels, rollers, wear parts	Abrasion and load resistance	Temperature and hydrolysis need review

Common manufacturing process guide

Process	Best For	Buyer Concern
Compression molding	Gaskets, pads, plugs, custom molded parts	Tooling cost and tolerance
Transfer molding	Detailed molded parts and inserts	Mold design and material flow
Injection molding	High-volume precision rubber parts	Higher tooling investment
Extrusion	Long profiles, seals, tubes	Cross-section and length control
Die cutting	Flat gaskets, washers, pads	Sheet thickness and edge quality
Rubber-to-metal bonding	Bushings, mounts, bonded supports	Bonding strength and metal treatment
Assembly	Complex seals or multi-material parts	Process control and consistency

Buyer selection workflow

I usually suggest a practical workflow:

1. Define what the rubber part must do.
2. Choose the correct part category.
3. Confirm working environment.
4. Select material based on media and temperature.
5. Confirm Shore A hardness.
6. Review compression, load, or movement.
7. Decide manufacturing process.
8. Check tolerance and inspection needs.
9. Confirm tooling cost, MOQ, sample approval, and lead time.
10. Start production only after sample or drawing approval.

For custom rubber parts, buyers can send drawings, samples, dimensions, application details, and expected quantity to Julong Rubber at info@rubberandseal.com. I can help review whether the part should be a seal, gasket, O-ring, bushing, grommet, mount, hose, extrusion, bellows, or custom molded rubber component.

Conclusion

Industrial rubber parts should be chosen by function first, then material, process, tolerance, and sourcing requirements for reliable long-term equipment performance.

---
