What are rubber plugs used for?

A wrong rubber plug can leak, loosen, burn, or contaminate a product. Many buyers treat plugs as simple hole fillers.

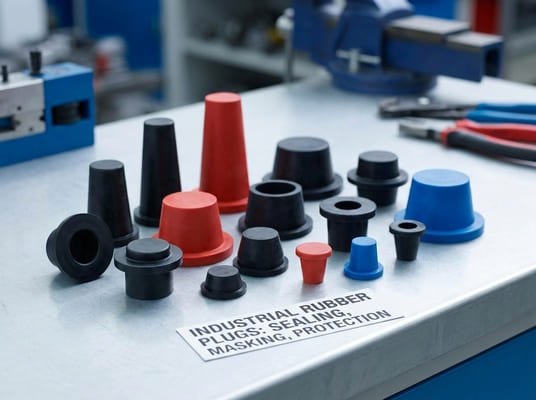

Rubber plugs are used for sealing, masking, protection, insulation, and temporary closure in industrial parts, equipment, painting, plating, testing, and transportation.

In my work at Julong Rubber, I do not look at rubber plugs as small accessories. I look at them as functional parts. A plug may protect a threaded hole during powder coating. Another plug may seal a tube during pressure testing. Another one may protect a machined bore during shipping. These jobs need different materials, shapes, hardness, and tolerances.

What Are Rubber Plugs?

A rubber plug looks simple, but its function depends on compression, friction, material recovery, and the working environment around the hole.

Rubber plugs are elastomer components inserted into holes, tubes, ports, or openings to seal, mask, protect, insulate, or temporarily close them.

Rubber plugs are usually molded or extruded elastomer parts. Their main job is to create contact pressure between the plug body and the inner wall of a hole, tube, bore, or threaded opening. This contact may block liquid, prevent dust, protect a surface, stop paint from entering, or isolate a component from vibration or electrical contact.

A rubber plug is different from a plastic cap or metal insert because it can compress and recover.¹ This elastic behavior allows the plug to fit slightly different hole sizes and create an interference fit. In many industrial applications, this matters more than the plug’s appearance.

Rubber plugs can be simple round plugs, tapered plugs, pull plugs, masking plugs, flanged plugs, stepped plugs, threaded-style plugs, or custom molded plugs. The best design depends on whether the plug must stay in place during pressure, temperature, coating, transport, washing, or assembly.

Basic functions of rubber plugs

The plug should be selected by function first. A masking plug for high-temperature powder coating is not the same as a sealing plug for water testing.² A protective plug for transport does not need the same compression set performance as a long-term sealing plug.

What Are Rubber Plugs Used For?

Many failures happen when buyers choose one plug design for every application. Sealing, masking, and protection are not the same job.

Rubber plugs are used to close openings, seal fluids, mask holes during finishing, protect threads, insulate parts, and prevent contamination.

Rubber plugs are common in automotive, HVAC, machinery, hydraulic equipment, electronics, metal fabrication, coating lines, and general industrial assembly.³ Some plugs are installed for a few minutes. Some stay in place during coating or washing. Some stay on the product during storage or shipment. Some work as a long-term sealing component.

This is why I separate rubber plug applications into three groups: sealing plugs, masking plugs, and protective plugs. Each group has its own engineering logic.

Main application categories

For example, a hydraulic component may need a plug to prevent dust and oil contamination before assembly. A powder coating factory may need silicone plugs that resist oven temperature. A machinery manufacturer may need EPDM or NBR plugs to seal water or oil-related ports during testing.

In B2B purchasing, the cheapest plug is not always the lowest-cost option. If the plug falls out, melts, contaminates the surface, or leaves coating defects, the real cost becomes much higher. A better plug design can reduce rework, inspection time, and production interruption.⁴

How Are Rubber Plugs Used for Sealing?

Sealing failure can start from a small gap. If the plug loses contact pressure, leakage can happen quickly.

Rubber sealing plugs close holes, tubes, ports, or bores by using elastic compression and interference fit against the mating surface.

For sealing plugs, the most important point is contact pressure. The plug must be slightly larger than the hole or designed with ribs, taper, or steps to create a controlled interference fit. When the plug is inserted, the rubber compresses. The rubber then pushes back against the inner wall and creates a seal.

The right interference depends on hole diameter, plug shape, rubber hardness, surface finish, fluid pressure, installation force, and whether the plug is temporary or long-term.⁵ Too little interference causes leakage or loosening. Too much interference makes installation difficult and may damage the plug or hole.

Sealing plug design factors

For sealing water, EPDM may be suitable in many cases. For oil-related sealing, NBR is often considered⁶. For heat and chemical resistance, silicone or FKM may be needed, depending on the actual medium and temperature. These are general directions, not final approvals. Real material choice should be verified by application conditions.

A sealing plug also needs a removal plan. Some plugs need a pull tab or flange. Some need a straight body for permanent installation. Some need a tapered design for quick manual insertion. If operators must install thousands of plugs per day, insertion force becomes a production issue, not only an engineering detail.

How Are Rubber Plugs Used for Masking?

Poor masking causes coating defects, blocked threads, and extra cleaning work. A plug that fits poorly can ruin a finishing process.

Masking rubber plugs protect holes, threads, bores, and contact surfaces from paint, powder coating, plating, blasting, or other finishing processes.

Masking plugs are often used in powder coating, painting, anodizing, electroplating, e-coating, wet spraying, and surface treatment. Their job is not always to create a pressure-tight seal. Their job is to keep coating or treatment material away from a selected area.

A masking plug must be easy to install and remove.⁷ It should not tear during removal. It should not leave residue. It should resist the process temperature and chemicals. It should also maintain contact during handling, spraying, oven curing, or rinsing.

Silicone rubber is often used for high-temperature masking because it can handle heat better than many general-purpose rubbers.⁸ However, the exact temperature range must be verified by compound and process. EPDM, NBR, and other rubbers may also be used for lower-temperature masking or special chemical exposure.

Masking plug requirements

A masking plug can be tapered, flanged, ribbed, or pull-style.⁹ Tapered plugs are flexible for different hole sizes. Pull plugs are useful when the plug must be removed from the opposite side or after coating. Flanged plugs protect the hole and the surrounding surface.

In many projects, buyers send us a part drawing but do not mention the finishing process. That is risky. Powder coating, wet paint, plating, and blasting create different stress on the plug. For masking applications, process information is as important as the hole size.

What Types of Rubber Plugs Are Available?

A standard plug may work for a simple hole, but many industrial parts need better geometry and removal control.

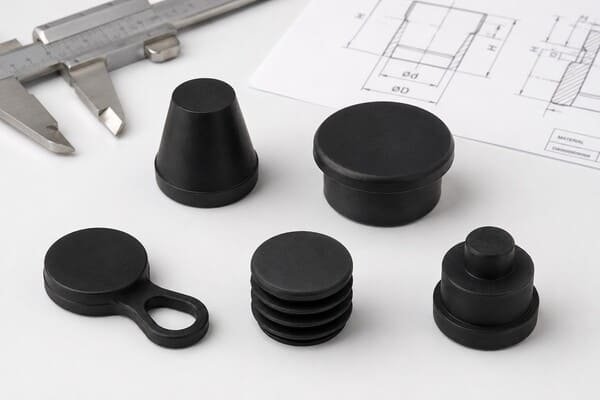

Common rubber plug types include tapered plugs, straight plugs, flanged plugs, pull plugs, ribbed plugs, stepped plugs, and custom molded plugs.

Rubber plug type should match the hole design and the operator’s installation method. A tapered plug is useful when the hole size has some variation.¹⁰ A straight plug may work well for a fixed bore. A flanged plug can stop over-insertion and protect the surrounding surface. A pull plug can improve removal speed.

Custom molded rubber plugs are often used when the plug must fit a non-standard hole, seal against pressure, include a handle, protect multiple features, or meet a specific assembly requirement¹¹. For B2B buyers, custom molding can reduce production problems when standard plugs do not fit well enough.

Common rubber plug types

The shape affects performance.¹² For sealing, ribs may increase contact pressure. For masking, taper and pull design can reduce operator time. For protection, flange and soft edges can prevent scratches. For insulation, wall thickness and material properties may matter more.

A good plug design also considers tolerance. Holes in metal parts, plastic parts, and cast parts may vary. If the hole tolerance is wide, a rigid plug may fail. Rubber can handle variation better, but it still needs correct geometry and hardness. I usually ask buyers to provide both nominal hole size and tolerance before confirming a plug design.

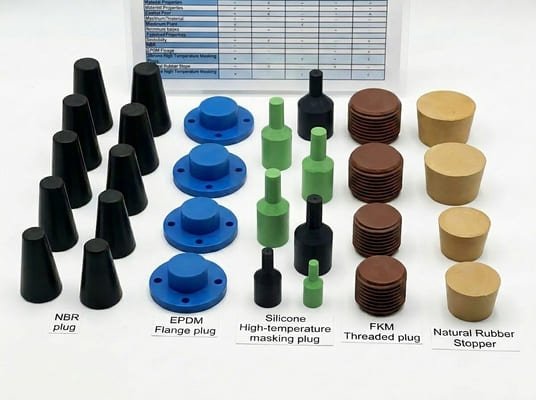

Which Rubber Material Is Best for Plugs?

A plug can fail even with the right shape if the material cannot survive heat, oil, chemicals, or repeated use.

The best rubber material for plugs depends on temperature, chemical exposure, sealing need, reusability, hardness, cost target, and process conditions.

There is no single best rubber material for all plugs. NBR, EPDM, silicone, natural rubber, SBR, CR, and FKM can all be useful, but each material has limits. The right choice depends on the working environment.

For oil contact, NBR is often a practical option. For outdoor weather, ozone, and water exposure, EPDM is often selected. For high-temperature masking, silicone is commonly used. For aggressive oil, fuel, heat, or chemical exposure, FKM may be considered, but cost is higher¹³. For simple protection where cost is important, SBR or natural rubber may be enough, depending on exposure.

Rubber material selection table

Hardness is also important. A soft plug may seal better on rough surfaces and require lower installation force.¹⁴ A harder plug may hold better in a hole and resist deformation. Many industrial rubber plugs are selected within common Shore A ranges, but the exact hardness should match the hole size, insertion depth, and required grip.

When buyers ask for “black rubber plugs,” I always prefer to confirm the real environment first. Black color does not tell us oil resistance, heat resistance, compression set, or chemical compatibility. Material selection is where many plug failures begin.¹⁵

When Do You Need Custom Molded Rubber Plugs?

Standard plugs are useful, but they can fail when the hole shape, pressure, process, or assembly method is special.

You need custom molded rubber plugs when standard plugs cannot meet fit, sealing, masking, protection, tolerance, material, or handling requirements.

Custom molded rubber plugs are often needed for OEM parts, machinery, automotive components, HVAC equipment, hydraulic blocks, coating fixtures, and special industrial assemblies. A custom plug can include ribs, flanges, handles, pull tabs, multiple diameters, special sealing lips, or brand-specific geometry.

The main reason to customize is not appearance. It is function. If the plug must seal under pressure, survive heat, protect threads, cover an irregular opening, or reduce operator installation time, custom molding can be more reliable than forcing a standard plug into the job.

At Julong Rubber, we usually review the drawing, sample, hole size, working environment, and quantity before suggesting a plug design. For B2B projects, we can support material selection, sample development, and production for custom molded rubber plugs based on drawings or samples.

When customization makes sense

RFQ checklist for custom molded rubber plugs

Before requesting a quote, buyers should prepare clear information. This helps the supplier calculate tooling cost, MOQ, lead time, and unit price more accurately.

Tooling cost depends on plug size, cavity number, structure, tolerance, and expected production quantity. A small-volume plug may use simpler tooling. A high-volume plug may need multi-cavity mold design to reduce unit cost. Sample approval is also important because plug fit must be confirmed on the real mating part.

Buyers can send drawings, samples, or application details to info@rubberandseal.com. I can help review the plug function, material direction, hardness, and production feasibility before quotation.

Conclusion

Rubber plugs are functional sealing, masking, protection, insulation, and closure parts. Correct geometry, material, hardness, and fit prevent leakage, damage, and rework.
