What Are the Thermal Properties of Rubber?

Many buyers ask me, "How much heat can this rubber handle?" But I always tell them that question misses the bigger picture. Heat affects rubber in more ways than just survival temperature. It changes how rubber seals, insulates, and performs over time.

Thermal properties of rubber include thermal conductivity, thermal expansion, glass transition temperature, heat resistance, and thermal stability. These properties determine how rubber responds to heat flow, temperature changes, and long-term exposure. Understanding all five properties helps you choose the right rubber for sealing, insulation, and high-temperature applications.

I have worked with rubber for over 15 years. I have seen customers choose materials based only on maximum temperature ratings. Then they face problems with compression set, dimensional changes, or brittle failure in cold weather. Thermal properties work together, and ignoring one can ruin your design.

What Thermal Properties Matter Most in Rubber?

Rubber does not just survive heat. It responds to heat in five distinct ways. Each response affects your application differently. If you only focus on one property, you will miss critical failure modes.

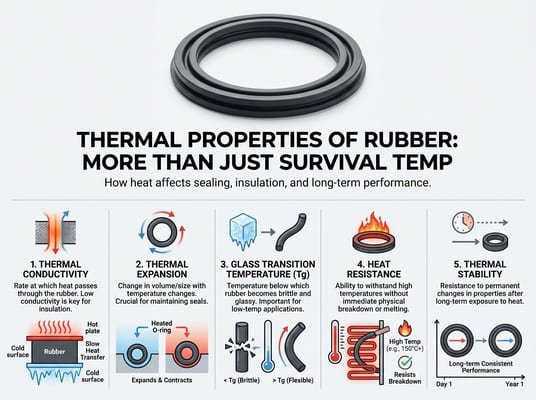

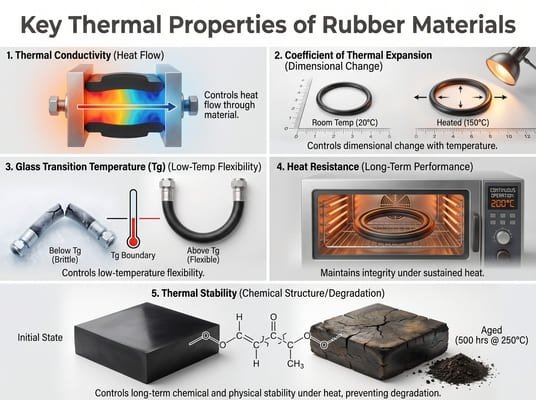

The five key thermal properties are thermal conductivity, coefficient of thermal expansion, glass transition temperature, heat resistance, and thermal stability. Thermal conductivity controls heat flow. Thermal expansion controls dimensional change. Glass transition temperature controls low-temperature flexibility. Heat resistance and thermal stability control long-term performance under heat.

Breaking Down Each Thermal Property

I always explain thermal properties by linking them to real problems. Here is how I organize them:

Each property connects to a specific failure mode. Thermal conductivity matters when you need insulation. Thermal expansion matters when you need tight tolerances. Glass transition temperature matters when you face cold weather. Heat resistance matters when you face high peaks. Thermal stability matters when you need long life.

I always ask customers three questions. What is your temperature range? How tight are your tolerances? How long must the seal last? These questions reveal which thermal properties matter most.

Why Does Thermal Conductivity Matter in Rubber Design?

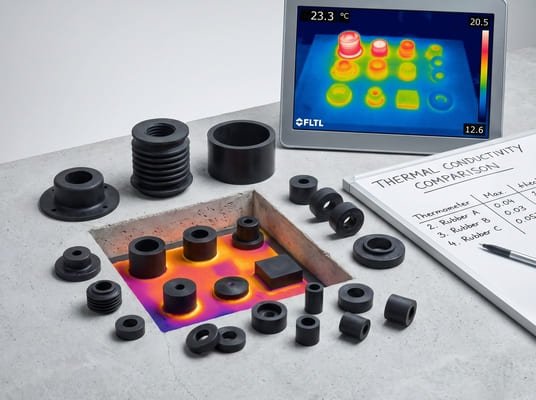

Thermal conductivity is the rate at which heat flows through rubber⁴. Most engineers ignore it because they think all rubber insulates. But thermal conductivity varies widely between rubber types. This variation changes how rubber performs in thermal barriers and insulation systems.

Thermal conductivity matters because it controls heat flow through rubber components. Low thermal conductivity keeps heat from escaping or entering. High thermal conductivity allows heat to dissipate. Choosing the wrong thermal conductivity can cause overheating, energy loss, or ineffective insulation in your design.

How Thermal Conductivity Affects Real Applications

I worked with a customer who used EPDM⁵ gaskets in a thermal barrier. They assumed all rubber insulates equally. But EPDM has higher thermal conductivity than butyl rubber⁶. Heat leaked through the gasket and reduced system efficiency by 12 percent.

We switched to butyl rubber. Thermal conductivity dropped from 0.25 W/m·K to 0.15 W/m·K⁷. Heat loss decreased immediately. The system met its energy targets.

Here is how different rubbers compare:

Thermal conductivity also affects heat dissipation¹². Some applications need rubber to transfer heat away from sensitive components. In those cases, higher thermal conductivity helps. I always clarify whether the customer needs insulation or heat transfer before recommending a material.

How Does Thermal Expansion Affect Rubber Stability?

Thermal expansion is the change in rubber dimensions as temperature rises or falls. Rubber expands more than metal or plastic. This difference creates stress in assemblies. If you ignore thermal expansion, your seal will either leak or crack.

Thermal expansion affects rubber stability by changing seal dimensions under temperature swings. High expansion coefficients cause gaps, loss of sealing force, or buckling¹³. Low expansion coefficients maintain dimensional stability. Matching thermal expansion to your assembly prevents seal failure and maintains consistent performance.

Understanding Expansion Coefficients and Design Impact

I once helped a customer who faced leaks in a hydraulic seal. The seal worked fine at room temperature. But when the system heated to 80°C, the seal expanded and buckled. The expansion coefficient was too high for the metal housing.

We calculated the linear expansion. The rubber expanded 3 percent. The metal housing expanded only 0.5 percent. This mismatch caused buckling and leakage.

Here is how expansion coefficients compare:

Fluorocarbon rubber has the lowest expansion coefficient.¹⁴ This makes it ideal for precision seals in high-temperature environments. Silicone has the highest expansion. It works well when flexibility matters more than dimensional stability.

I always recommend testing the seal assembly at operating temperature. Measure the gap, sealing force, and compression. This reveals whether thermal expansion will cause problems.

What Does Glass Transition Temperature Mean for Rubber?

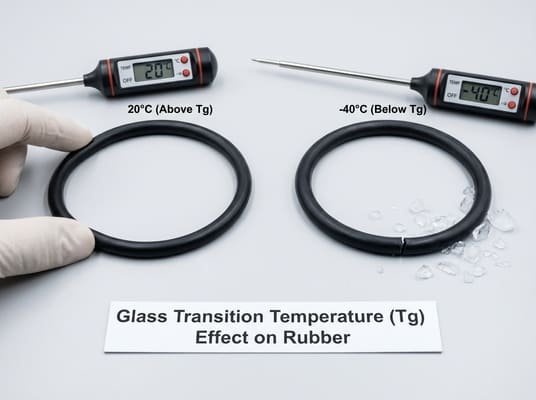

Glass transition temperature (Tg) is the point where rubber changes from flexible to brittle¹⁵. Above Tg, rubber behaves like rubber. Below Tg, rubber behaves like glass. It becomes stiff, loses sealing ability, and cracks easily.

Glass transition temperature defines the lowest usable temperature for rubber. Below Tg, rubber loses flexibility and cannot seal effectively. Above Tg, rubber remains elastic and functional. Choosing rubber with the right Tg prevents brittle failure in cold environments.

How Glass Transition Temperature Controls Cold Performance

I worked with a customer in Norway. They used nitrile rubber seals in outdoor equipment. The seals failed every winter. Cracks appeared after just one season. The problem was glass transition temperature.

Nitrile rubber has a Tg around -25°C to -40°C¹⁶, depending on the formulation. Winter temperatures in Norway often drop below -30°C. The seals became brittle and cracked.

We switched to silicone rubber. Silicone has a Tg around -120°C.¹⁷ The seals remained flexible even at -40°C. No more cracks.

Here is how different rubbers perform at low temperatures:

Glass transition temperature is not the same as minimum service temperature. Rubber can still function slightly below Tg, but it becomes less reliable. I always recommend staying at least 10°C above Tg for critical seals.

How Do Heat Resistance and Thermal Stability Differ?

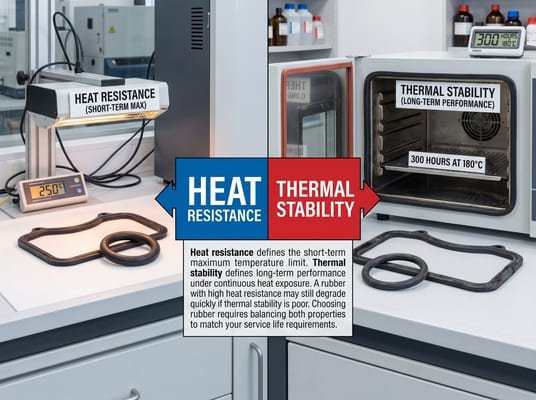

Many people confuse heat resistance and thermal stability. Heat resistance is the maximum temperature rubber can survive without immediate failure. Thermal stability is how long rubber keeps working at high temperature without degrading. Both matter, but they measure different things.

Heat resistance defines the short-term maximum temperature limit. Thermal stability defines long-term performance under continuous heat exposure¹⁸. A rubber with high heat resistance may still degrade quickly if thermal stability is poor. Choosing rubber requires balancing both properties to match your service life requirements.

Why Both Properties Matter in Real Designs

I worked with a customer who needed seals for an exhaust system. They chose EPDM because it has good heat resistance up to 150°C. But after 500 hours, the seals hardened and cracked. The problem was thermal stability, not heat resistance.

EPDM can survive 150°C briefly, but it degrades quickly under continuous exposure¹⁹. Fluorocarbon rubber has lower peak heat resistance but much better thermal stability. We switched to FKM. The seals lasted over 5,000 hours without significant degradation.

Here is how different rubbers compare:

Heat resistance tells you the peak temperature the rubber can survive during short excursions. Thermal stability tells you how long the rubber will last at normal operating temperature. I always ask customers about both peak temperature and continuous temperature. This helps me recommend the right material.

Why Is Butyl Rubber Used for Thermal Insulation?

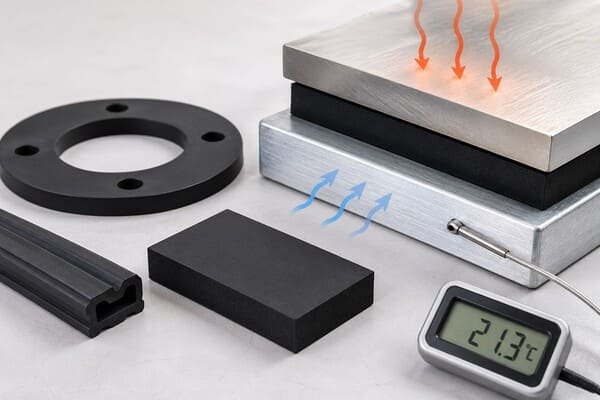

Butyl rubber is the top choice for thermal insulation²⁰. It has the lowest thermal conductivity of all common rubbers. It also has excellent air impermeability, which prevents convective heat transfer. These properties make it ideal for thermal barriers and insulation systems.

Butyl rubber is used for thermal insulation because it has the lowest thermal conductivity, around 0.15 W/m·K. It also blocks air and moisture, which prevents heat transfer through convection. This combination makes butyl rubber the best choice for applications where heat retention or heat blocking is critical.

How Butyl Rubber Outperforms Other Materials

I worked on a project for insulated transport containers. The customer initially used EPDM gaskets. But heat leaked through the seals and reduced insulation efficiency. Temperature inside the container rose 5°C higher than expected during transport.

We replaced EPDM with butyl rubber. Thermal conductivity dropped by 40 percent. Air permeability also dropped. The container maintained temperature within 1°C of the target.

Here is how butyl rubber compares to other insulation materials:

Butyl rubber also resists aging better than natural rubber²¹. It does not oxidize easily. This makes it reliable in long-term insulation applications.

The only downside is cost. Butyl rubber costs more than EPDM or natural rubber²². But for applications where thermal insulation matters, the performance justifies the price.

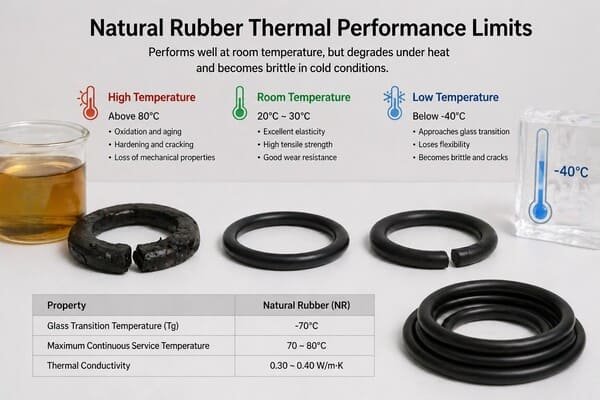

How Does Natural Rubber Behave Under Heat and Cold?

Natural rubber is the most widely used rubber in the world²³. It has excellent mechanical properties and low cost. But its thermal properties are limited. Natural rubber degrades quickly under heat and becomes brittle in cold weather.

Natural rubber performs well at room temperature but has poor thermal performance. It degrades above 80°C due to oxidation and loses flexibility below -40°C due to its glass transition temperature. Natural rubber is best for applications with moderate temperature ranges and no extreme thermal exposure.

When Natural Rubber Works and When It Fails

I worked with a customer who used natural rubber seals in automotive suspension systems. The seals worked perfectly in temperate climates. But in hot climates, the seals cracked after two years. In cold climates, the seals became stiff and lost sealing force.

Natural rubber oxidizes quickly above 80°C²⁴. The polymer chains break down, and the rubber becomes brittle. Below -40°C, natural rubber reaches its glass transition temperature and loses flexibility.

Here is how natural rubber compares to synthetic alternatives:

Natural rubber excels in mechanical properties like tensile strength, tear resistance, and resilience. But for thermal applications, synthetic rubbers perform better.

I recommend natural rubber only when temperature stays between 0°C and 70°C. Outside this range, synthetic rubbers are more reliable.

Conclusion

Thermal properties define how rubber responds to heat and cold. Understanding all five properties helps you choose the right material for your application. Thermal performance is not just about survival temperature. It is about long-term reliability, dimensional stability, and predictable sealing behavior.
