What kind of oil is safe for rubber?

Choosing the wrong oil can destroy rubber seals and gaskets in weeks. Many engineers learn this the hard way when their equipment starts leaking.

The safest oil for rubber depends on your specific rubber material. Silicone oils work well with most rubbers for light lubrication, while petroleum oils can damage sensitive materials like EPDM. For heavy oil exposure, use specialized rubbers like NBR, HNBR, or FKM instead of general-purpose materials.

I've seen countless projects fail because someone picked the wrong oil-rubber combination. Understanding this relationship saves you time, money, and headaches down the road.

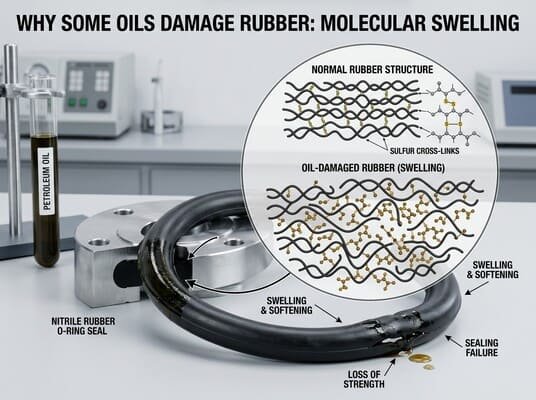

Why Do Some Oils Damage Rubber Parts?

Oil damage happens when molecules penetrate rubber and change its structure. This isn't just surface contact - it's chemical warfare at the molecular level.

Oils damage rubber through molecular penetration and swelling. Petroleum oils contain hydrocarbons that dissolve into rubber chains, causing expansion, softening, and eventual failure. The rubber loses its shape, strength, and sealing ability.

The science behind this damage is straightforward but important. Rubber consists of long polymer chains held together by cross-links. When oil molecules penetrate these chains, they act like tiny wedges. The polymer chains separate and the rubber swells¹.

Different oils cause different types of damage². Aromatic oils are particularly aggressive because their ring-shaped molecules fit easily between rubber polymer chains. Paraffinic oils are gentler but can still cause problems with sensitive rubbers.

Temperature makes everything worse. Heat speeds up the penetration process and makes rubber chains more flexible³. What might take months at room temperature happens in days at high temperatures.

The molecular weight of the oil matters too. Light oils with small molecules penetrate faster than heavy oils with large molecules⁴. This is why gasoline damages rubber faster than heavy motor oil.

Oil Type	Penetration Speed	Typical Damage	Common Applications
Gasoline	Very Fast	Severe swelling	Fuel systems
Light Motor Oil	Fast	Moderate swelling	Light machinery
Heavy Gear Oil	Slow	Gradual softening	Heavy equipment
Silicone Oil	Very Slow	Minimal	Precision instruments

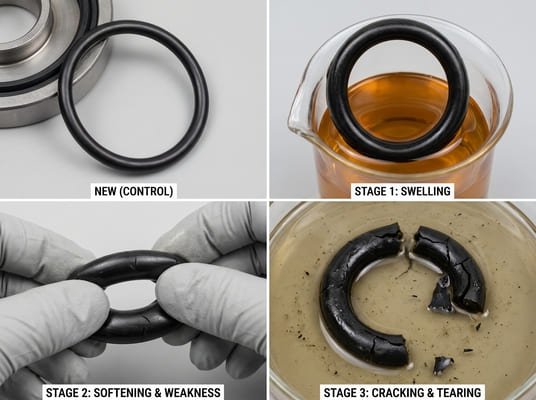

What Happens When Rubber Swells in Oil?

Swelling is the first sign of oil damage, but it's not the end of the story. The rubber goes through several stages of degradation.

When rubber swells in oil, it loses dimensional stability and mechanical properties. The rubber becomes soft, weak, and unable to maintain proper sealing pressure. Eventually, it may crack, tear, or completely dissolve depending on the oil type and exposure time.

I've measured rubber seals that grew 50% in diameter after oil exposure. Imagine trying to seal a pipe with a gasket that no longer fits properly.

The swelling process happens in stages. First, the rubber absorbs oil and expands uniformly.⁵ The surface becomes glossy and soft to the touch. At this stage, you might think the rubber is just lubricated.

Next, the mechanical properties change dramatically. The rubber loses its spring-back ability. When you compress it, it stays compressed instead of returning to its original shape. This is called compression set⁶, and it's fatal for sealing applications.

The final stage varies by rubber type and oil severity. Some rubbers crack as they lose flexibility.⁷ Others become so soft they flow like thick liquid. The worst cases see complete dissolution where the rubber literally disappears into the oil.

Temperature and time determine how fast this happens. High temperatures can compress months of damage into days. I've seen seals fail in hot oil applications within 24 hours when the wrong materials were used.

The damage isn't always reversible. Even if you remove the oil, the rubber rarely returns to its original properties. The polymer chains have been permanently altered. This is why prevention is so much better than trying to fix the problem later.⁸

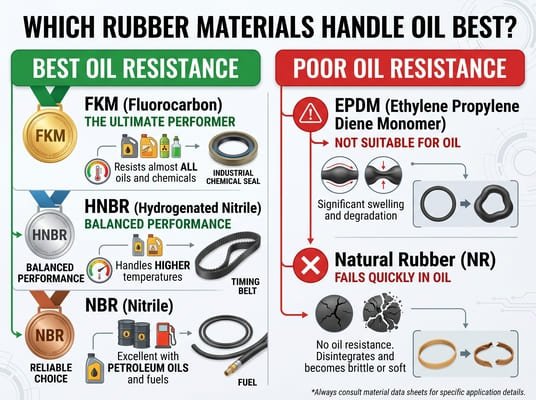

Which Rubber Materials Handle Oil Best?

Not all rubbers are created equal when it comes to oil resistance. Some materials thrive in oil environments while others fail quickly.

NBR (Nitrile), HNBR (Hydrogenated Nitrile), and FKM (Fluorocarbon) rubbers offer the best oil resistance. NBR works well with petroleum oils, HNBR handles higher temperatures, and FKM resists almost all oils and chemicals. EPDM and natural rubber perform poorly in oil applications.

The oil resistance comes from the rubber's chemical structure. NBR contains nitrile groups that don't interact strongly with petroleum molecules⁹. This creates a natural barrier against oil penetration.

FKM takes this further with fluorine atoms that create an extremely stable polymer backbone. These rubbers can handle temperatures up to 200°C in oil without significant degradation. They're expensive but worth it for critical applications.

HNBR bridges the gap between NBR and FKM¹⁰. It offers better temperature resistance than NBR at a lower cost than FKM. Many automotive and industrial applications use HNBR¹¹ for this reason.

Here's how different rubbers perform in common oils:

Rubber Type	Petroleum Oils	Synthetic Oils	Silicone Oils	Max Temp (°C)
NBR	Excellent	Good	Fair	120
HNBR	Excellent	Excellent	Good	150
FKM	Excellent	Excellent	Excellent	200
EPDM	Poor	Poor	Good	150
Silicone	Poor	Fair	Excellent	200

The acrylonitrile content in NBR affects its oil resistance. Higher levels mean better oil resistance but lower flexibility at cold temperatures. Most applications use NBR with 18-50% acrylonitrile content depending on the specific requirements.

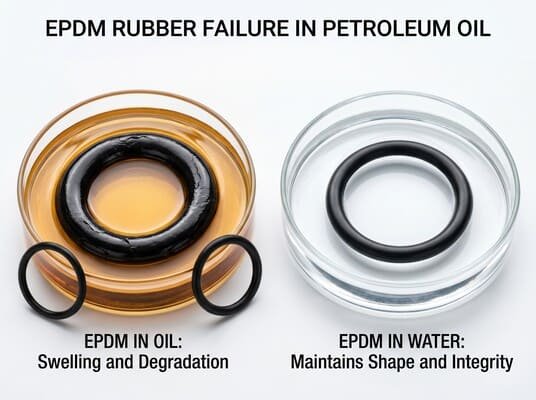

Why Does EPDM Usually Fail in Oil Applications?

EPDM is an excellent rubber for many applications, but oil isn't one of them. Understanding why helps you avoid costly mistakes.

EPDM fails in oil because its saturated polymer backbone readily absorbs petroleum molecules. The rubber swells dramatically, loses mechanical properties, and cannot maintain effective sealing. EPDM works well with water, steam, and weather but should be avoided in petroleum oil applications.

I learned this lesson early in my career when a customer used EPDM seals in a gearbox application. Within weeks, the seals had swollen so much they couldn't function. The repair cost far exceeded the savings from using cheaper material.

The problem lies in EPDM's molecular structure. It's made from ethylene, propylene, and a small amount of diene monomer. This creates a saturated backbone that's chemically similar to petroleum molecules. Like dissolves like - the oil molecules easily penetrate and swell the rubber.

EPDM's excellent weather resistance actually works against it in oil applications¹². The same chemical stability that resists ozone and UV light makes it susceptible to petroleum absorption. It's a trade-off that can't be avoided.

The swelling is often dramatic. I've seen EPDM seals grow 100% or more in volume when exposed to light petroleum oils. The rubber becomes so soft you can dent it with your fingernail.

Temperature makes EPDM's oil problems worse¹³. Hot oil penetrates faster and causes more swelling. Even brief exposure to hot petroleum products can permanently damage EPDM seals.

Some people try to use EPDM in oil applications because it's cheaper than NBR or FKM. This is false economy. The failure costs and downtime far exceed any material savings. Always use the right rubber for the application.

Is Silicone Oil Safe for Rubber Seals?

Silicone oil has unique properties that make it different from petroleum oils. This affects how it interacts with various rubber materials.

Silicone oil is generally safe for most rubber materials including NBR, EPDM, and natural rubber. It causes minimal swelling and maintains rubber properties better than petroleum oils. However, silicone rubber itself can swell in silicone oil, creating compatibility issues in some applications.

The safety comes from silicone oil's unique molecular structure. Silicone polymers have a silicon-oxygen backbone that's chemically different from both petroleum oils and most rubber materials. This reduces the likelihood of molecular penetration and swelling.

I use silicone oil for light lubrication in many applications where petroleum products would cause problems. It's particularly useful in food-grade applications where petroleum contamination is unacceptable.

Silicone oil maintains its properties across a wide temperature range¹⁴. It doesn't thicken as much in cold weather or thin out as much in hot conditions compared to petroleum oils. This stability helps protect rubber seals from temperature-related stress.

The main exception is silicone rubber itself. Silicone oil can cause silicone rubber to swell because they're chemically similar. This creates an interesting paradox - silicone oil is safe for most rubbers except silicone rubber.

Different grades of silicone oil have different viscosities and properties. Low-viscosity silicone oils penetrate faster than high-viscosity versions. For rubber compatibility, higher viscosity silicone oils are generally safer.

Food-grade silicone oils offer additional safety benefits¹⁵. They're non-toxic and don't support bacterial growth. This makes them ideal for food processing equipment where rubber seals need lubrication.

The cost of silicone oil is typically higher than petroleum alternatives¹⁶. However, the improved compatibility with rubber seals often justifies the expense through longer service life and reduced maintenance.

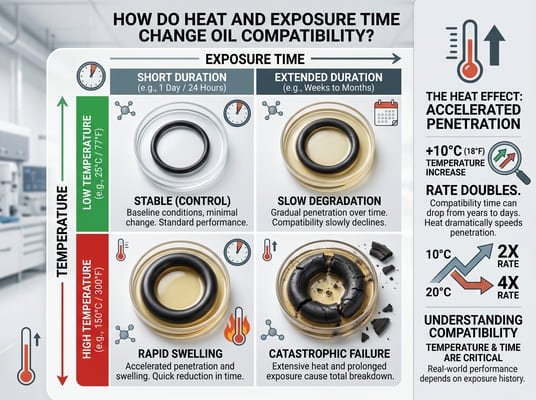

How Do Heat and Exposure Time Change Oil Compatibility?

Temperature and time are the hidden variables that can turn a compatible oil-rubber combination into a failure. Understanding these factors helps predict real-world performance.

Heat dramatically accelerates oil penetration into rubber, reducing compatibility time from years to days. Extended exposure allows even slow-penetrating oils to cause damage. Temperature increases of 10°C can double the penetration rate, following chemical reaction principles.

The relationship between temperature and penetration follows the Arrhenius equation from chemistry. For every 10°C temperature increase, chemical reaction rates roughly double. This applies to oil penetration into rubber as well.

I've tested identical rubber-oil combinations at different temperatures¹⁷ with dramatically different results. Seals that lasted months at 60°C failed within days at 100°C. The temperature effect is that significant.

Time allows even marginal combinations to cause problems. A rubber that shows minimal swelling after one week might fail completely after six months. Short-term compatibility tests don't always predict long-term performance.

The combination of heat and time creates compound effects. High temperatures don't just speed up penetration - they also change the rubber's molecular structure. The polymer chains become more flexible and easier to penetrate.

Thermal cycling adds another dimension to the problem. Repeated heating and cooling creates stress in rubber seals. This stress can create micro-cracks that allow oil penetration even in normally compatible combinations.

Temperature (°C)	Relative Penetration Rate	Typical Failure Time
20	1x	Years
40	2x	Months
60	4x	Weeks
80	8x	Days
100	16x	Hours

Oxygen accelerates degradation at high temperatures¹⁸. The combination of heat, oil, and oxygen creates oxidation reactions that attack rubber polymer chains. This is why sealed systems often perform better than open systems.

How Can You Test Oil Compatibility with Rubber?

Testing prevents expensive failures in real applications. Several standard test methods help predict oil-rubber compatibility before you commit to a design.

ASTM D471 and ISO 1817 are standard immersion tests that measure rubber swelling in oils. Test samples are immersed in oil at specified temperatures and times, then measured for volume change, hardness change, and tensile strength loss. Results predict real-world compatibility.

The standard test involves cutting rubber samples to precise dimensions, then immersing them in test oil at controlled temperature. After specified time periods, you measure changes in volume, weight, hardness, and mechanical properties.

Volume change is the most important measurement. Swelling above 10-20% usually indicates poor compatibility. The exact limit depends on your application requirements and safety factors.

Hardness change reveals how oil affects rubber stiffness. Oils that cause significant softening will reduce sealing effectiveness. Hardness typically decreases as rubber absorbs oil and swells.

Tensile strength and elongation tests¹⁹ show how oil affects mechanical properties. Good compatibility maintains most of the rubber's original strength and flexibility. Poor compatibility causes dramatic property loss.

I always recommend testing actual production materials rather than generic samples. Rubber formulations vary between suppliers, and small differences can affect oil compatibility significantly.

Temperature selection for testing should match your application. Testing at room temperature won't predict performance in hot oil applications. Use the maximum expected service temperature plus a safety margin.

Test duration depends on your application timeline and urgency. Standard tests run 70 hours at elevated temperature to accelerate aging.²⁰ Longer tests provide more reliable predictions but take more time.

Some applications require custom test conditions. Unusual oils, extreme temperatures, or critical applications may need specialized testing beyond standard methods.

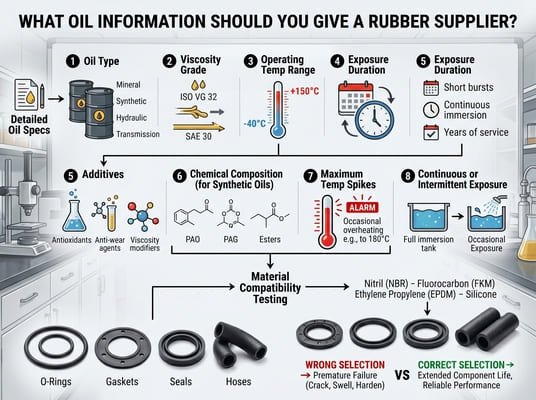

What Oil Information Should You Give a Rubber Supplier?

Accurate oil information helps rubber suppliers recommend the best materials for your application. Missing details often lead to wrong material choices and failures.

Provide oil type, viscosity grade, operating temperature range, exposure duration, and any additives. Include chemical composition for synthetic oils, maximum temperature spikes, and whether exposure is continuous or intermittent. This information determines optimal rubber selection.

Oil type is the starting point for material selection. Petroleum, synthetic, vegetable, or silicone oils all behave differently with rubber materials. Be specific about the exact oil family and base stock type.

Viscosity affects penetration rate and sealing requirements. Light oils penetrate faster but may require different seal designs. Heavy oils penetrate slower but create higher sealing pressures.

Temperature information needs to include both normal operating range and maximum spikes. Many applications have brief temperature excursions that exceed normal operating conditions. These spikes can cause rapid seal failure if not considered.

Exposure pattern matters significantly. Continuous immersion is more challenging than occasional splash contact. Intermittent exposure allows rubber to recover between oil contacts, extending service life.

Additives in oils can dramatically affect rubber compatibility. Anti-oxidants, detergents, extreme pressure additives, and corrosion inhibitors all interact differently with rubber materials. Get complete additive packages from oil suppliers.

Here's a checklist of information to provide:

• Base oil type (petroleum, synthetic, bio-based)
• Viscosity grade (SAE, ISO, or specific viscosity)
• Operating temperature range (min/max/typical)
• Maximum temperature spikes (duration and frequency)
• Exposure type (immersion, splash, vapor)
• Oil additives and concentrations
• Service life requirements
• Safety factors and reliability requirements

Chemical compatibility data sheets from oil manufacturers help rubber suppliers make accurate recommendations. These sheets list rubber compatibility ratings for specific oil formulations.

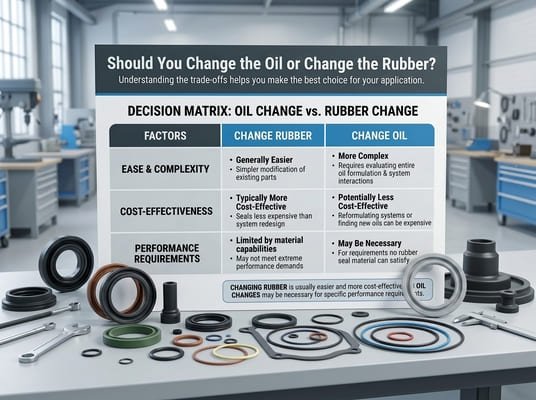

Should You Change the Oil or Change the Rubber?

Sometimes you have flexibility in both oil and rubber selection. Understanding the trade-offs helps you make the best choice for your application.

Changing rubber is usually easier and more cost-effective than changing oil. Rubber seals are typically less expensive to modify than reformulating entire oil systems. However, oil changes may be necessary for performance requirements that no rubber can meet.

Cost is often the deciding factor. Rubber seals represent a small fraction of total system cost, while oil changes affect entire fluid systems. Changing from EPDM to NBR seals costs much less than switching from one oil type to another.

Performance requirements may force oil selection. If you need specific lubrication properties, fire resistance, or environmental characteristics, the oil choice is fixed. Then you must find compatible rubber materials.

Existing inventory and supply chains favor keeping current oils. Companies often have large stocks of specific oils and established supplier relationships. Changing oils disrupts these systems and creates transition costs.

Regulatory requirements can lock in oil choices. Food-grade, environmental, or safety regulations may mandate specific oil types. Military and aerospace applications often have approved oil lists that can't be changed easily.

The number of seal locations affects the decision. Systems with hundreds of seals make rubber changes expensive. Systems with few seals make rubber changes relatively easy and cost-effective.

Maintenance schedules influence the choice. If oil changes happen frequently anyway, switching oil types during regular maintenance minimizes disruption. If seals are replaced regularly, upgrading rubber materials during maintenance makes sense.

Risk tolerance plays a role in the decision. Conservative approaches favor proven oil-rubber combinations with long service histories. Aggressive approaches may accept newer materials with better theoretical performance but less field experience.

Conclusion

Choose oil-rubber combinations based on chemistry, temperature, and time factors. Test compatibility before committing to prevent costly failures in your applications.

---
