What Rubber is Used in the Automobile Industry?

Choosing the wrong automotive rubber can cause leaks, cracks, noise, vibration, and warranty problems. Material names alone are not enough.

The automobile industry uses EPDM, NBR, HNBR, FKM, FVMQ, silicone, NR, SBR, CR, and PU, depending on sealing, weathering, oil, fuel, heat, vibration, and wear requirements.

As Kelly from Julong Rubber, I always explain automotive rubber by application risk first. A door seal, oil O-ring, A/C gasket, fuel seal, engine mount, and suspension bushing may all be rubber parts, but they need very different material logic.

What Rubber Is Used in the Automobile Industry?

Many buyers ask for “automotive rubber,” but that term is too general for engineering and production.

Automotive rubber includes EPDM, NBR, HNBR, FKM, FVMQ, silicone, NR, SBR, CR, and PU for different vehicle systems.

Automobiles use many types of rubber because vehicles have many working environments¹. Some rubber parts face sunlight, rain, ozone, and road dust. Some parts touch oil, coolant, fuel, refrigerant, grease, or brake-related fluids. Some parts must absorb vibration for years. Some parts must seal under heat and pressure.

This is why I do not recommend selecting automotive rubber only by color, hardness, or old sample appearance. Two black rubber parts may look the same but perform very differently. One may be EPDM for weather resistance. Another may be NBR for oil resistance. Another may be FKM for fuel and high-temperature sealing.

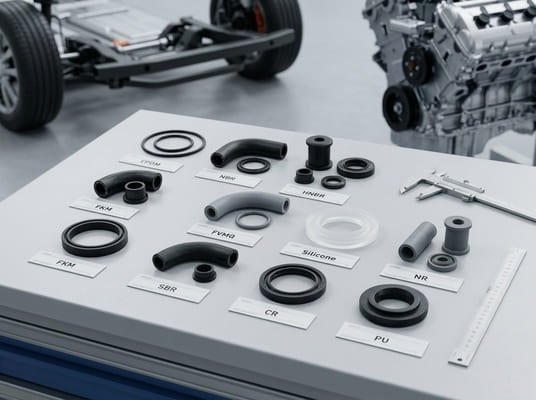

Common automotive rubber materials

The best material depends on the part function. A weatherstrip needs ozone resistance. A fuel seal needs fuel resistance. A bushing needs fatigue strength. A hose needs pressure, temperature, and fluid compatibility. This is the real starting point for automotive rubber material selection.

Why Are Different Rubber Materials Needed in Cars?

A vehicle is not one environment. Heat, oil, ozone, fuel, pressure, and movement attack rubber in different ways.

Different rubber materials are needed because each vehicle system has different exposure, movement, sealing pressure, temperature, chemical contact, and failure risk.

Cars need rubber for sealing, damping, insulation, fluid transfer, protection, and comfort⁵. These functions are different, so the rubber compound must also be different. A soft EPDM door seal must close quietly and resist weather aging. A fuel system O-ring must resist swelling and cracking in fuel. An engine mount must manage load and vibration. A radiator hose must handle coolant and heat.

If the wrong rubber is selected⁶, the part may pass first inspection but fail later. This is common because many rubber failures are not visible during incoming inspection. The part may fail after oil immersion, heat aging, compression, ozone exposure, or repeated movement.

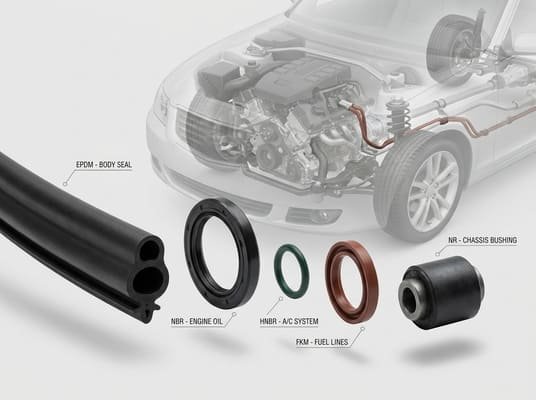

Vehicle-system application map

The lesson is simple. Material choice should follow the real service condition⁸. This prevents leakage, cracking, hardening, softening, noise, and premature replacement.

What Is EPDM Rubber Used for in Automobiles?

EPDM is common in vehicles, but it should not be used everywhere. Oil exposure is a serious warning point.

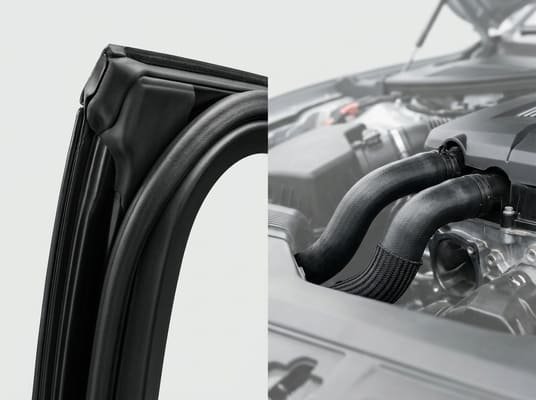

EPDM rubber is used for automotive weather seals, door seals, window seals, trunk seals, coolant hoses, HVAC seals, and water-related gaskets.

EPDM is one of the most important automotive rubber materials because it has strong resistance to weathering, ozone, water, steam, and many coolant-related environments.⁹ This makes it a practical choice for exterior sealing and body applications.

EPDM is widely used in door weatherstrips, glass run channels, trunk seals, hood seals, windshield seals, radiator hoses, coolant hoses, HVAC rubber seals, and water drain parts. It can keep flexibility and sealing performance under outdoor exposure better than many general-purpose rubbers.

However, EPDM is not suitable for oil or fuel contact.¹⁰ This is a common mistake. A buyer may see an EPDM part working well as a weather seal and then assume it can also seal oil. That is risky. Oil can cause swelling, softening, and loss of mechanical performance.

EPDM selection logic

For EPDM parts, I usually check Shore A hardness, compression set, ozone resistance, heat aging, and part geometry. A door seal must be soft enough to close well but strong enough to recover. A coolant hose must also consider reinforcement, pressure, and bend radius.¹¹

What Is NBR Rubber Used for in Automobiles?

Oil contact is one of the main reasons engineers choose NBR, but NBR has limits in ozone and high heat.

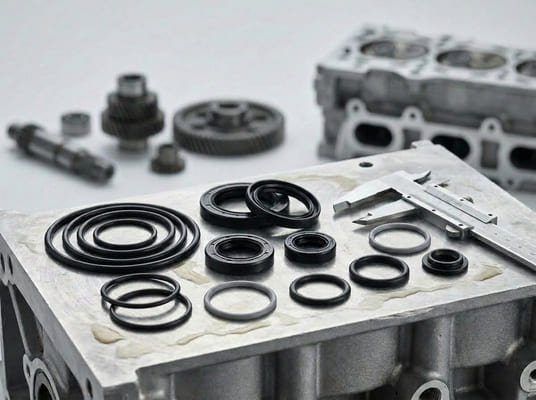

NBR rubber is used for automotive oil seals, O-rings, gaskets, fuel-limited seals, hoses, and molded parts requiring oil resistance.

NBR, also called nitrile rubber, is commonly selected when oil resistance is required¹². It is used in engine-related seals, oil gaskets, O-rings, fuel-limited applications, transmission-related parts, and some hoses. NBR is often practical because it balances cost, oil resistance, and processability.

The key point is oil compatibility. If the part contacts engine oil, lubricating oil, grease, or hydraulic oil, NBR may be a better starting material than EPDM. But NBR is not always enough for high heat, aggressive fuel, outdoor ozone exposure, or long service life under severe conditions.

NBR advantages and warnings

For automotive buyers, it is important to describe the oil or fluid clearly. “Oil-resistant rubber” is not enough. Engine oil, fuel, grease, refrigerant oil, and hydraulic oil can affect rubber differently. Test requirements such as oil immersion and volume change should be confirmed before mass production.

NBR is useful, but it should not be used as a universal automotive rubber¹³. If the part faces higher heat, A/C refrigerant oil, or stronger aging requirements, HNBR may be a better option.

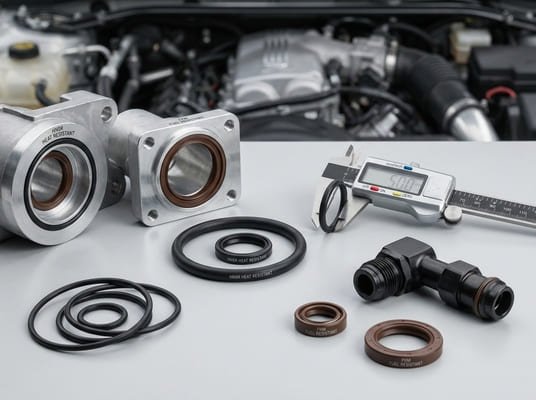

What Are HNBR and FKM Used for in Automotive Sealing?

High-performance sealing parts often fail when low-grade rubber is used to save cost at the wrong place.

HNBR is used for A/C and high-performance oil sealing, while FKM is used for fuel, heat, oil, and aggressive media sealing.

HNBR is hydrogenated nitrile rubber. It is often chosen when NBR is not strong enough for heat, oil, aging, or A/C system requirements. HNBR is commonly used for A/C O-rings, powertrain seals, timing-related parts, and higher-performance oil sealing.¹⁴ It can offer improved heat and ozone resistance compared with standard NBR, depending on the grade.

FKM is a fluoroelastomer. It is often selected for fuel, high-temperature oil, chemical exposure, and engine sealing areas where ordinary rubber may swell, harden, or crack. FKM costs more, but it can reduce failure risk in demanding applications.

FVMQ, or fluorosilicone rubber, may be considered when fuel resistance and low-temperature flexibility are both important. It is more specialized, so application conditions and test data must be verified carefully.

HNBR, FKM, and FVMQ comparison

The decision should be based on failure cost. A cheap material may look attractive during purchasing, but if the seal fails inside a fuel system or powertrain assembly, the replacement cost is much higher than the material saving.

At Julong Rubber, we often review the working medium, peak temperature, sealing pressure, groove design, and annual demand before recommending HNBR, FKM, or FVMQ for custom automotive rubber seals.

What Is Silicone Rubber Used for in Automobiles?

Silicone rubber can handle temperature well, but it is not always the strongest choice for oil, fuel, or tear resistance.

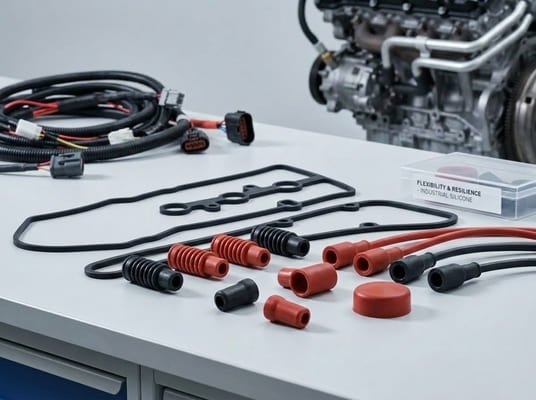

Silicone rubber is used for high-temperature gaskets, electrical boots, ignition parts, protective covers, keypads, and flexible automotive sealing parts.

Silicone rubber is valued for high and low temperature flexibility.¹⁵ It is used in automotive gaskets, electrical boots, ignition wire protection, sensor covers, connector seals, battery-related protection, and some high-temperature air or sealing applications.

Silicone also has good flexibility and clean appearance. It can be useful where parts must stay soft over a wide temperature range. For electric vehicles and electronic systems, silicone parts may be used for insulation, sealing, cushioning, and protection, depending on design requirements.

However, silicone has limits. It may not be the best choice for dynamic abrasion, high tear stress, fuel exposure, or some oil-contact applications. The exact compound must be checked. In some cases, fluorosilicone may be considered when fuel resistance is required, but this increases cost.

Silicone rubber application logic

For silicone automotive parts, engineers should check hardness, compression set, tear resistance, heat aging, and exposure media. Silicone can be excellent in the correct position, but it should not be chosen only because it is “high temperature rubber.”

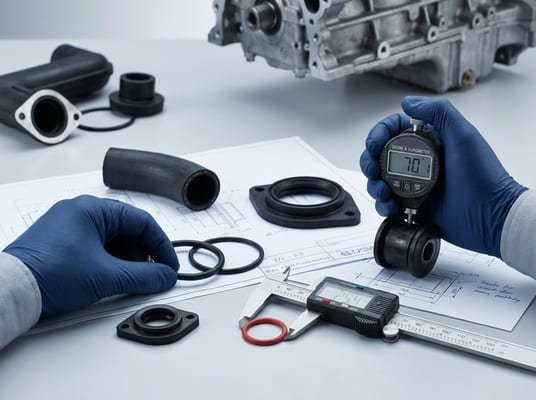

How Should Engineers Choose Automotive Rubber Materials?

Material selection becomes risky when engineers only compare price, color, or one hardness value.

Engineers should choose automotive rubber by function, fluid exposure, temperature, movement, compression, ozone, hardness, tolerance, test standard, and failure risk.

A practical material selection process starts with the function of the part¹⁶. Does it seal? Does it absorb vibration? Does it transfer fluid? Does it protect a cable? Does it touch fuel, oil, coolant, refrigerant, or road chemicals? Does it work outside the vehicle or near the engine?

After function, engineers should check working temperature. This includes normal temperature, peak temperature, cold start, and heat aging. Then they should check movement and compression. A static gasket has different requirements from a dynamic bushing or flexible boot.¹⁷

Practical selection process

For example, EPDM may fit a weather seal but fail in oil. NBR may fit oil sealing but crack faster in ozone exposure. FKM may solve fuel and heat problems but increase cost. Silicone may support heat and flexibility but may need checking for tear or oil resistance. NR may be good for mounts, but it is not ideal for fuel or ozone.

The best choice is a balance of function, risk, and cost. Buyers and engineers should not over-specify every part, but they should not under-specify critical seals, hoses, and safety-related components.

What Standards and Test Data Matter for Automotive Rubber?

A sample can look correct but still fail after heat, oil, ozone, or long-term compression.

Important automotive rubber data includes ASTM D2000, ASTM D2240 hardness, ASTM D395 compression set, oil immersion, ozone resistance, heat aging, and dimensional tolerance.

Automotive rubber parts should be controlled by technical data, not only appearance. ASTM D2000 is often used to classify rubber materials by type, class, hardness, tensile strength, heat resistance, oil resistance, and additional suffix requirements. The exact callout must be confirmed by the buyer’s drawing or specification.

ASTM D2240 is commonly referenced for rubber hardness, including Shore A hardness. Hardness affects fit, sealing pressure, installation force, vibration behavior, and feel. ASTM D395 is commonly referenced for compression set. Compression set is critical for seals, gaskets, O-rings, and any part that must recover after being compressed.

Oil immersion, ozone resistance, heat aging, tensile strength, elongation, tear resistance, and low-temperature flexibility may also be needed. For molded rubber parts, dimensional tolerance should be clearly defined. ISO 3302 may be used in some rubber part drawings, but buyer-specific automotive tolerances or internal standards may also apply.

Test data and failure prevention guide

RFQ checklist for custom automotive rubber parts

Before requesting a quote, buyers should prepare enough data to avoid wrong tooling and wrong material selection.

At Julong Rubber, we support custom molded automotive rubber parts, rubber seals, O-rings, gaskets, hoses, bushings, mounts, and protection parts. Buyers can send drawings, samples, or technical details to info@rubberandseal.com for material discussion, sample development, and B2B production support.

Conclusion

Automotive rubber should be chosen by function, environment, and failure risk. Correct material, testing, and RFQ data protect sealing, comfort, and durability.
